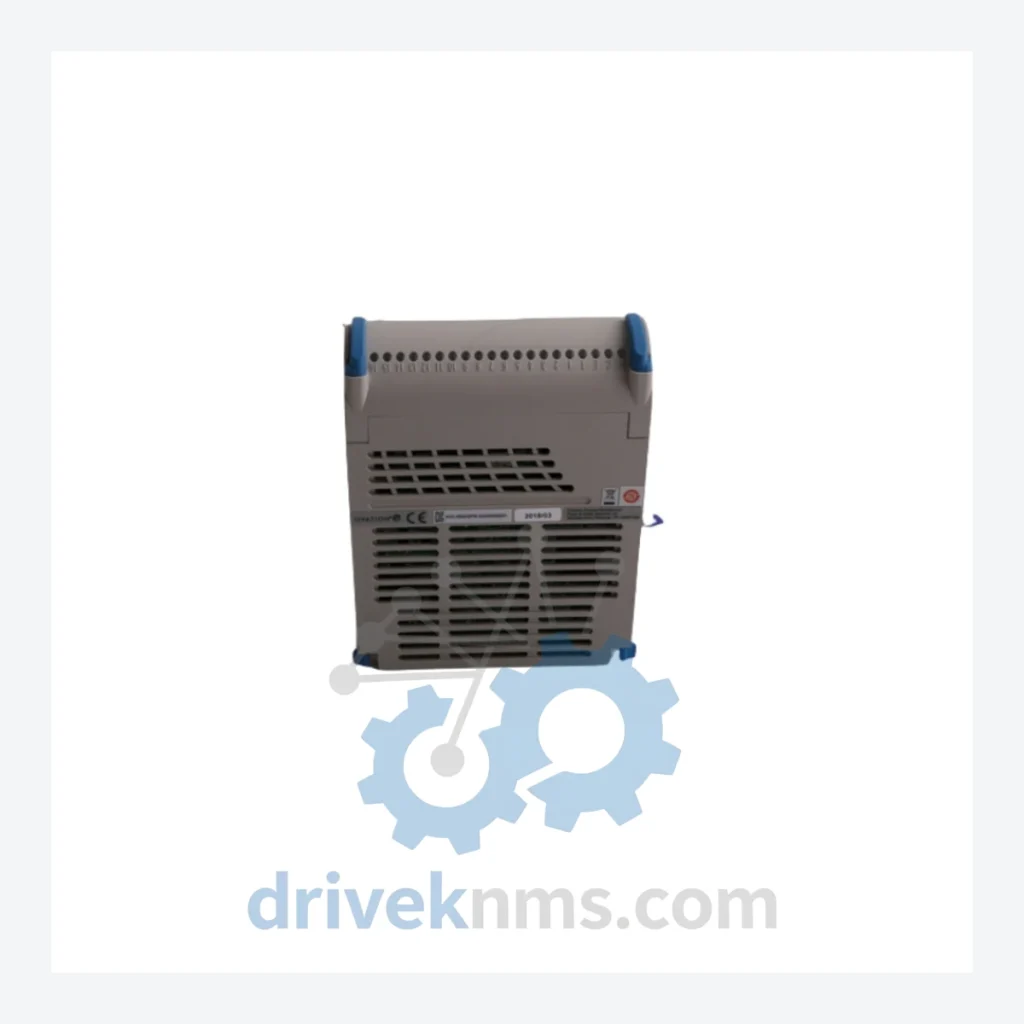

Westinghouse 5X00058G01 Analog Input Module – Obsolete WDPF Spare Part

Technical Dossier

Product Details And Specifications

Westinghouse 5X00058G01 Analog Input Module – Obsolete WDPF Spare Part

When a single analog input module fails in a Westinghouse WDPF distributed control system, the consequences extend far beyond a line item on a maintenance budget. A full DCS migration — encompassing engineering hours, new hardware procurement, loop re-commissioning, operator retraining, and production downtime — routinely runs into the millions of dollars. The 5X00058G01 is a discontinued component, and its absence from the open market is not a minor inconvenience; it is a direct threat to continued operation of assets that were designed to run for decades.

DriveKNMS maintains verified physical stock of the Westinghouse 5X00058G01. This is not a catalog listing. Inventory is finite and allocated on a first-confirmed basis.

Technical Specifications

Note: Electrical parameters such as input range, channel count, and resolution are not published here to prevent specification errors. Contact us directly for verified datasheet documentation.

Solving the Discontinued Hardware Crisis

The Westinghouse WDPF platform was deployed extensively across power generation, chemical processing, and refining facilities from the 1980s through the early 2000s. Many of these installations remain in active service — not because operators are unaware of the platform age, but because the process economics of replacement are prohibitive. A WDPF-to-modern-DCS migration at a mid-sized power plant is a multi-year capital project. The 5X00058G01 analog input module sits at the nerve center of that system, translating field sensor signals into the process data the control system acts upon.

There is no software patch for a failed analog input module. There is no firmware workaround. When this card fails, the I/O points it serves go dark. Depending on the process, that means either a controlled shutdown or an uncontrolled one. Neither is acceptable during a production campaign.

The strategic response used by experienced maintenance teams is not to wait for failure — it is to hold verified spare stock. A single 5X00058G01 on the shelf, confirmed functional and ready to install, is the difference between a two-hour swap and a two-week procurement crisis. At current market scarcity levels, that two-week crisis may extend to months, or may not resolve at all.

How to extend the service life of a WDPF system by 5–10 years:

• Conduct a critical spares audit. Map every I/O module, processor card, and power supply in the system. Identify which part numbers are no longer available through the OEM. The 5X00058G01 is one of several WDPF modules that have been out of production for years.
• Establish a tiered inventory buffer. For modules with no substitute, hold a minimum of two units per installed position. For high-density I/O racks, that number should be higher. The cost of holding spare hardware is a fraction of the cost of unplanned downtime.
• Schedule proactive card-level inspection. Electrolytic capacitors in modules of this age degrade predictably. Identifying and replacing aging capacitors before failure extends module life and prevents cascade faults in the backplane.
• Document firmware and configuration baselines. Before any module swap, ensure the replacement is loaded with the correct firmware revision and that the configuration database is current. WDPF systems are sensitive to version mismatches.
• Engage a specialist supplier early. The window for sourcing obsolete WDPF hardware is narrowing. Each year, fewer units remain in circulation. Procurement decisions made today determine whether the system can be maintained in 2028 or 2030.

Condition and Reliability Assurance

Every 5X00058G01 unit shipped by DriveKNMS passes a five-stage inspection protocol developed specifically for legacy industrial control hardware:

• Step 1 – Visual and mechanical inspection: Examination of the PCB, connector pins, and housing for physical damage, corrosion, or evidence of prior field failure.
• Step 2 – Electrolytic capacitor assessment: Capacitors are the primary failure point in hardware of this age. Each unit is evaluated for bulging, leakage, and ESR deviation from specification.
• Step 3 – Firmware version verification: The installed firmware revision is confirmed and documented. Units with unknown or mismatched firmware are flagged and handled separately.
• Step 4 – Pin and connector integrity check: All edge connector pins and backplane contacts are inspected for oxidation, bending, and contamination. Affected contacts are cleaned or the unit is rejected.
• Step 5 – Functional validation: Where test infrastructure permits, modules are powered and tested against known-good reference configurations before shipment.

Units that do not pass all five stages are not sold. They are not relabeled. They are not offered as-is without explicit disclosure.

Key Features for System Maintenance

• Drop-in replacement: The 5X00058G01 installs directly into the existing WDPF rack without mechanical modification.
• No reprogramming required: The module reads its configuration from the WDPF system database on initialization. There is no card-level programming step for the maintenance technician.
• No engineering redesign: Unlike a platform migration, a like-for-like module replacement requires no loop re-engineering, no drawing revisions, and no control narrative changes.
• Immediate operational restoration: A verified spare on hand converts a potential multi-week outage into a same-shift repair.
• Cost containment: The total cost of a spare module — including procurement, inspection, and storage — is orders of magnitude below the cost of a DCS migration or an extended production shutdown.

FAQ

What warranty applies to an obsolete part like the 5X00058G01?
DriveKNMS provides a 12-month warranty on all units sold as new surplus or professionally refurbished. Warranty terms cover functional failure under normal operating conditions and are documented in writing at the time of sale.

How do I know the unit is genuine and not a counterfeit?
All units are sourced from documented industrial decommissioning projects, authorized surplus channels, or long-term storage inventories. Provenance documentation is available on request. We do not source from unverified secondary markets.

Should I buy more than one unit?
For any WDPF installation where the 5X00058G01 is a critical I/O module, holding at least two spare units is the standard recommendation. Given current market availability, waiting until a failure occurs before sourcing a replacement is a significant operational risk.

Can you source other WDPF modules?
Yes. DriveKNMS specializes in obsolete and hard-to-find industrial control hardware across multiple legacy platforms. Contact us with your full bill of materials and we will advise on availability.
