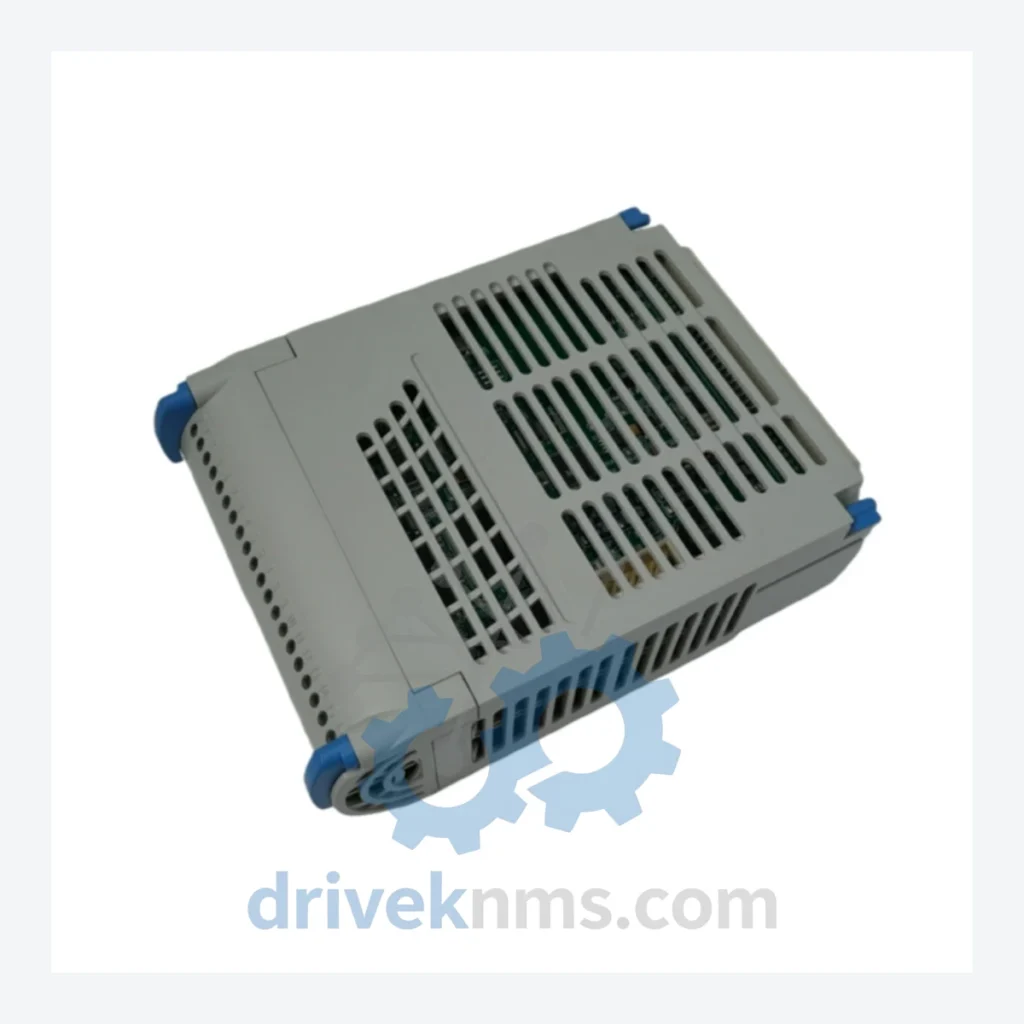

Westinghouse 5X00167G01 Digital Output Module – Obsolete WDPF Spare Part

When a digital output module fails inside a Westinghouse WDPF distributed control system, the consequences extend far beyond a single I/O card. The WDPF platform — discontinued by Westinghouse and later absorbed into Emerson's legacy portfolio — is no longer supported through standard OEM channels. A single failed module can halt an entire process unit. Replacing the control architecture to resolve that failure carries a price tag that routinely exceeds seven figures when engineering, commissioning, operator retraining, and production downtime are factored in. DriveKNMS holds verified physical stock of the 5X00167G01. This is not a catalog listing — it is a confirmed inventory position on a part that the market has largely exhausted.

Technical Specifications

Note: Electrical parameters such as output voltage range, channel count, and load ratings are model-specific. Contact DriveKNMS for verified datasheet confirmation before installation. No parameters are assumed or fabricated.

Solving the Discontinued Hardware Crisis

The Westinghouse WDPF system was deployed extensively across power generation, petrochemical, and heavy industrial facilities from the 1980s through the early 2000s. Its modular architecture was engineered for long service life, and many of these installations remain operational today — not because replacement is impossible, but because the cost and operational risk of migration are prohibitive.

When Westinghouse exited the DCS market, the supply chain for WDPF I/O modules did not transition cleanly to any successor. Emerson's Ovation platform, while technically related, does not provide backward-compatible hardware for all WDPF card slots. This leaves plant operators in a position where a single failed output module — a component that may cost a few hundred dollars on the secondary market — becomes the trigger for a multi-million dollar system overhaul discussion.

The 5X00167G01 digital output module sits at a critical junction in the WDPF I/O subsystem. It handles discrete output signals that drive field devices: actuators, solenoid valves, motor starters, and relay circuits. Loss of this module means loss of control authority over those field devices. In a power plant or refinery context, that is not a maintenance inconvenience — it is a process safety event.

Facilities that have maintained a strategic spare inventory of WDPF modules have consistently deferred system migration by 5 to 10 years beyond the OEM end-of-life date. The arithmetic is straightforward: the cost of holding two or three critical spare modules is measured in thousands of dollars. The cost of an unplanned DCS migration, triggered by an unavailable spare, is measured in millions. Plant managers who treat legacy spare procurement as a capital asset protection strategy — rather than a maintenance expense — consistently achieve better return on their installed base.

DriveKNMS sources 5X00167G01 modules through verified industrial liquidation channels, decommissioned plant inventories, and long-term supplier relationships built specifically around WDPF and comparable legacy platforms. Each unit passes through a documented inspection process before it is offered for sale.

Condition & Reliability Assurance

Obsolete modules sourced from the secondary market carry inherent risk if they are not properly evaluated before installation. DriveKNMS applies a 5-step quality assurance process to all WDPF modules:

Step 1 – Visual and Mechanical Inspection: Full board examination for physical damage, burn marks, cracked solder joints, and connector pin integrity. Corroded or bent backplane pins are disqualifying defects.

Step 2 – Electrolytic Capacitor Assessment: WDPF-era boards use electrolytic capacitors with a finite service life. Each module is inspected for capacitor bulging, electrolyte leakage, and ESR deviation. Boards with aged capacitors are either recapped or quarantined.

Step 3 – Firmware and Label Verification: Where applicable, firmware revision markings and board revision codes are documented and cross-referenced against known compatible revisions for the target system configuration.

Step 4 – Pin and Connector Corrosion Check: Backplane connectors and I/O terminal interfaces are inspected under magnification. Oxidation is treated; severe corrosion is a rejection criterion.

Step 5 – Functional Verification: Where test infrastructure permits, modules undergo powered functional checks. Units that cannot be functionally verified are clearly identified as untested and priced accordingly.

Condition grade and test status are disclosed in full on every order confirmation. There are no undisclosed refurbishment practices.

Key Features for System Maintenance

The 5X00167G01 is a direct slot-compatible replacement for the original WDPF installation. It does not require reprogramming of the host controller, reconfiguration of the I/O database, or modification of field wiring. Maintenance personnel familiar with WDPF card replacement procedures can execute the swap within a standard maintenance window.

This drop-in replacement capability is the core economic argument for sourcing a secondary-market spare rather than initiating a system upgrade. Engineering firms that quote DCS migration projects routinely cite I/O module unavailability as the forcing function. Removing that forcing function — by holding a verified spare — returns the migration decision to a planned, budget-controlled timeline rather than an emergency response.

There are no software licensing implications, no engineering change orders required for the control system configuration, and no revalidation of the process control logic. The module is installed, the system is returned to service, and the migration discussion returns to the capital planning cycle where it belongs.

FAQ

What warranty applies to an obsolete module like the 5X00167G01?
DriveKNMS provides a 90-day warranty against defects identified under normal operating conditions. Given the obsolete status of this part, warranty terms are confirmed in writing at the time of order. Extended warranty arrangements are available for volume purchases.

How do I know the unit is genuine and not a counterfeit?
All 5X00167G01 units are sourced from traceable industrial channels — decommissioned plant inventories, verified distributor liquidations, and long-term supplier relationships. Board markings, revision codes, and physical construction are cross-referenced against known authentic units. DriveKNMS does not source from unverified online marketplaces.

Should I purchase more than one unit?
For any facility operating a WDPF system without a current migration plan, holding a minimum of two 5X00167G01 spares is a defensible asset protection position. Secondary market availability of this module is not guaranteed to persist. As decommissioned WDPF installations are scrapped, the pool of recoverable spares contracts. Procurement decisions deferred by 12 to 24 months frequently result in significantly higher unit costs or outright unavailability.

Can this module be used in a system running Emerson Ovation?
The 5X00167G01 is a WDPF-native module. Compatibility with Ovation hardware depends on the specific chassis and backplane configuration. Contact DriveKNMS with your system details for a compatibility assessment before ordering.
