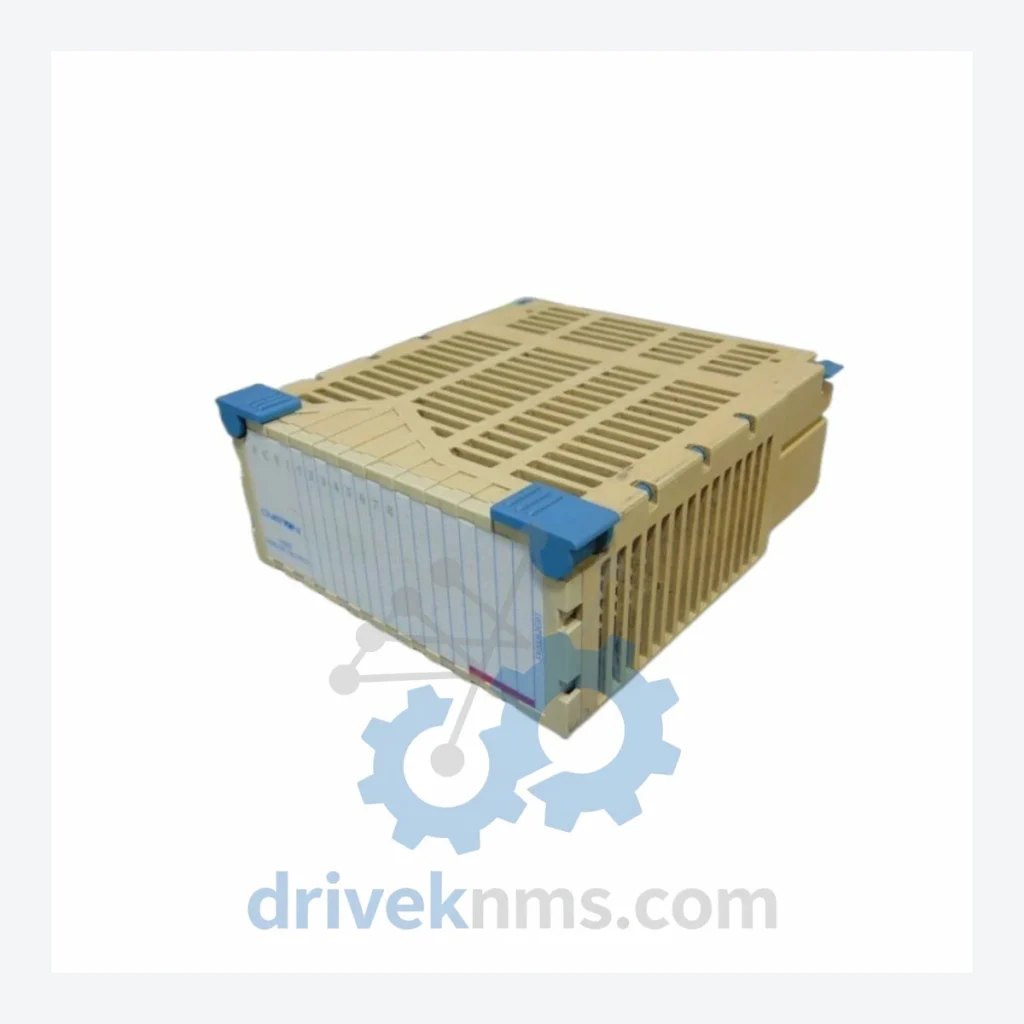

Westinghouse 5X00226G02 I/O Interface Module – Obsolete WDPF Series Spare Part

When a single I/O interface module fails in a legacy Westinghouse WDPF distributed control system, the consequences extend far beyond the cost of the part itself. A forced migration to a modern DCS platform — driven by nothing more than one unavailable module — routinely carries engineering, commissioning, and production-loss costs measured in the millions. The 5X00226G02 is no longer manufactured. Westinghouse's process automation division was absorbed and its legacy WDPF product lines discontinued. For plants still operating on this architecture, the supply window for genuine replacement modules is closing. DriveKNMS maintains RFQ-reviewed sourcing status of the 5X00226G02. This is not a catalog listing — it is confirmed, inspected inventory.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Detailed electrical parameters (voltage ratings, signal ranges, backplane pinout) are confirmed against physical unit documentation at time of sale. No parameters are published without physical verification to protect equipment safety.

Solving the Discontinued Hardware Crisis

The Westinghouse WDPF platform was deployed extensively across power generation, petrochemical, and heavy industrial facilities from the 1980s through the early 2000s. Many of these installations remain in active production service today — not because operators are unaware of the discontinuation, but because the capital expenditure required to replace a functioning, tuned DCS is difficult to justify against a plant's maintenance budget cycle.

The 5X00226G02 I/O interface module sits at a critical junction in the WDPF architecture. It handles the communication pathway between field instruments and the controller backplane. A failure at this node does not degrade performance gradually — it causes an abrupt loss of I/O visibility that can trigger process shutdowns. Unlike a failed power supply that can sometimes be bypassed temporarily, an I/O interface fault demands immediate hardware replacement.

How to Extend Legacy Automation Asset Life by 5–10 Years

For plant management facing pressure to retire aging DCS infrastructure, the financial case for a managed spare parts strategy is straightforward. A full WDPF-to-modern-DCS migration project — including engineering design, hardware procurement, installation, loop testing, and operator retraining — typically requires 18 to 36 months of planning and execution. The capital outlay is substantial. Against that baseline, a targeted inventory of critical obsolete modules represents a fraction of the cost and can defer the migration decision by a full operational cycle.

Condition & Reliability Assurance

Every 5X00226G02 unit supplied by DriveKNMS passes a structured 5-step quality process before dispatch review:

• Step 1 – Visual and Mechanical Inspection: Full examination of PCB surface, connector pins, and housing for physical damage, corrosion, or evidence of prior field failure.
• Step 2 – Electrolytic Capacitor Assessment: Capacitors are the primary age-related failure point in modules of this era. Each unit is evaluated for capacitor bulging, leakage, and ESR degradation. Units with compromised capacitors are either recapped with equivalent-spec components or rejected.
• Step 3 – Connector and Pin Integrity Check: Backplane connector pins are inspected under magnification for oxidation, bending, and contact resistance. Pin corrosion is the most common cause of intermittent I/O faults in legacy modules.
• Step 4 – Firmware Version Verification: Where applicable, firmware version is documented and confirmed against known compatible revisions for the target system configuration.
• Step 5 – Functional Bench Test: Units are powered and tested for basic operational response prior to packaging.

Key Features for System Maintenance

How do I know the unit is genuine and not a counterfeit?
All units are sourced through documented supply channels. Physical markings, board revision codes, and component configurations are cross-referenced against known-good reference units. Any unit that cannot be positively verified is not offered for sale.

Should I buy more than one unit?
For a module confirmed as obsolete with no active manufacturing source, holding a minimum of two spare units is a standard risk management practice. The cost of a second unit is negligible relative to the cost of an unplanned shutdown while a replacement is sourced from the spot market. For facilities with multiple WDPF systems, a proportionally larger buffer is warranted.

Can you source other Westinghouse WDPF modules?
Yes. DriveKNMS specializes in obsolete and hard-to-find industrial automation components across multiple legacy platforms. Contact us with your full part number list for availability and pricing.
