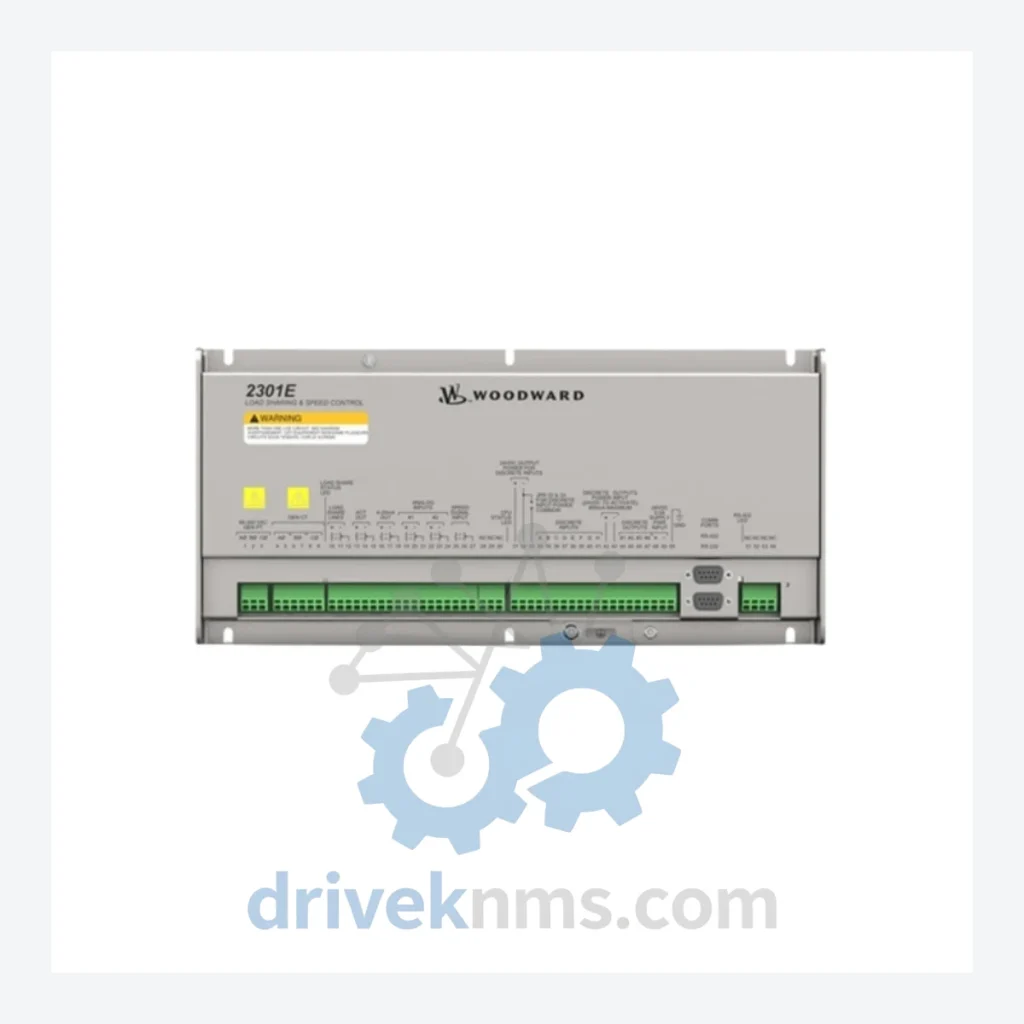

WOODWARD 2301E Speed Controller Modules

Technical Dossier

Product Details And Specifications

WOODWARD 2301E Series: Comprehensive Module Range and Technical Overview

The WOODWARD 2301E is an electronic speed controller and load-sharing unit engineered for isochronous load sharing and speed governing of diesel and gas engines driving generators in parallel operation. It has accumulated significant installed base across heavy industrial sectors including petrochemical plants, offshore platforms, refineries, and nuclear auxiliary power systems. The 2301E operates as a standalone governor control with integrated load-sharing circuitry, making it a standard reference component in genset synchronization panels globally. Its analog control architecture, combined with field-adjustable gain and droop parameters, has made it a long-term fixture in facilities where control system replacement carries high operational risk.

The Evolution of 2301E Architecture

The 2301E was introduced as a successor to the WOODWARD 2301 and 2301A analog governor series, retaining backward-compatible wiring conventions while adding enhanced load-sharing stability and improved magnetic pickup signal conditioning. Early production units (pre-1995) used through-hole PCB construction with discrete analog components; mid-generation units introduced surface-mount technology for improved vibration resistance. The 2301E operates on a 12–24 VDC supply rail and interfaces directly with electro-hydraulic actuators (EG, UG, and PE series) via a 4–20 mA or ±200 mA output signal.

Compatibility considerations span three generations: (1) Original 2301E units are pin-compatible with 2301A panels but require actuator current range verification. (2) The 2301E Load Sharing variant adds a parallel droop bus (typically 0–3 VDC) for multi-unit synchronization. (3) Modern replacement candidates include the WOODWARD 2301D and EasYgen-1000 series, though these require panel rewiring and parameter re-commissioning. Facilities operating the 2301E beyond its nominal service life (15–20 years) increasingly rely on third-party MRO suppliers for board-level repair and exchange programs, as WOODWARD has transitioned primary support to digital governor platforms.

2301E Full Catalog & Functionalities (SKU List)

The following SKUs represent verified models within the WOODWARD 2301E product family, classified by function:

Speed Controllers / Governor Units

2301E: Base isochronous speed controller, 12–24 VDC, ±200 mA actuator output
2301E-ST: Speed controller with start-fuel limiting circuit for diesel engine cranking protection
2301E-LS: Load-sharing variant with parallel droop bus, for multi-genset isochronous paralleling
2301E-EC: Enhanced control version with expanded gain adjustment range and improved MPU input filtering
2301E-HC: High-current output variant, supports actuators requiring up to 400 mA drive current

Load Sharing & Synchronizing Modules

2301E-LSS: Load-sharing and speed-matching module, integrates synchronizer output for bus tie applications
2301E-LSD: Load-sharing with droop-switchable output, allows transition between isochronous and droop modes
2301E-LSSC: Load-sharing with soft-close load transfer logic for utility paralleling
9905-459: Replacement PCB assembly for 2301E base unit, direct board-swap compatible
9905-460: Replacement PCB assembly for 2301E-LS load-sharing variant

Actuator Interface & Signal Conditioning

2301E-AI: Analog input expansion card, adds auxiliary load reference input (4–20 mA)
2301E-MPU: Magnetic pickup signal conditioner module, extends MPU input sensitivity to 0.5 Vrms minimum
2301E-PS: Isolated 24 VDC power supply module for 2301E panel installations
2301E-TB: Terminal block expansion assembly for field wiring consolidation
2301E-DIN: DIN-rail mounting adapter kit for 2301E chassis in retrofit panel installations

Accessories & Spare Components

2301E-POT: Speed reference potentiometer assembly, panel-mount, 1 kΩ
2301E-FUSE: Internal fuse kit, includes all rated fuses for 2301E power and output circuits
2301E-CONN: Replacement connector kit, all mating connectors for J1/J2 harness interface

Sourcing Hard-to-Find & Obsolete 2301E Parts

WOODWARD has progressively reduced direct spare parts availability for the 2301E series as production shifted to digital governor platforms (2301D, EasYgen, MicroNet). PCB-level components, potentiometers, and connector assemblies are no longer stocked through standard distribution channels in most regions. DriveKNMS maintains a dedicated inventory of 2301E units and sub-assemblies sourced through authorized surplus channels, OEM overstock, and decommissioned plant equipment. All units are cataloged by part number, date code, and functional test status prior to listing. For facilities operating 2301E controllers in critical standby or continuous-duty applications, DriveKNMS provides lifecycle extension support including: exchange programs (tested-for-failed unit swap), board-level repair referral, and long-term consignment stocking agreements. Inquiries for bulk quantities, specific date codes, or export documentation should be directed to the sales team directly.

Quality Control for the 2301E Range

The 2301E presents specific test challenges due to its analog closed-loop architecture and load-sharing bus interface. DriveKNMS applies the following verification procedures to all 2301E units prior to dispatch:

Power-on functional test: Unit is energized at rated supply voltage (12 VDC and 24 VDC) and output current is verified across the full actuator drive range (0 to ±200 mA or 0 to 400 mA for HC variants). Speed reference input simulation: A calibrated MPU signal (0.5–70 Vrms, 100–10,000 Hz) is injected to verify speed sensing and governor response. Load-sharing bus verification: For LS-variant units, the droop bus output (0–3 VDC) is measured under simulated parallel load conditions to confirm load-sharing linearity. Gain and stability check: Proportional, integral, and derivative (PID) response is verified using a step-load simulation to confirm stability margins within WOODWARD factory specification. Visual and mechanical inspection: PCB condition, connector integrity, potentiometer sweep linearity, and enclosure condition are documented. All test data is retained and available upon request with shipment.
