Woodward 5441-413 Relay Interface Module – Obsolete Governor Spare Part

Technical Dossier

Product Details And Specifications

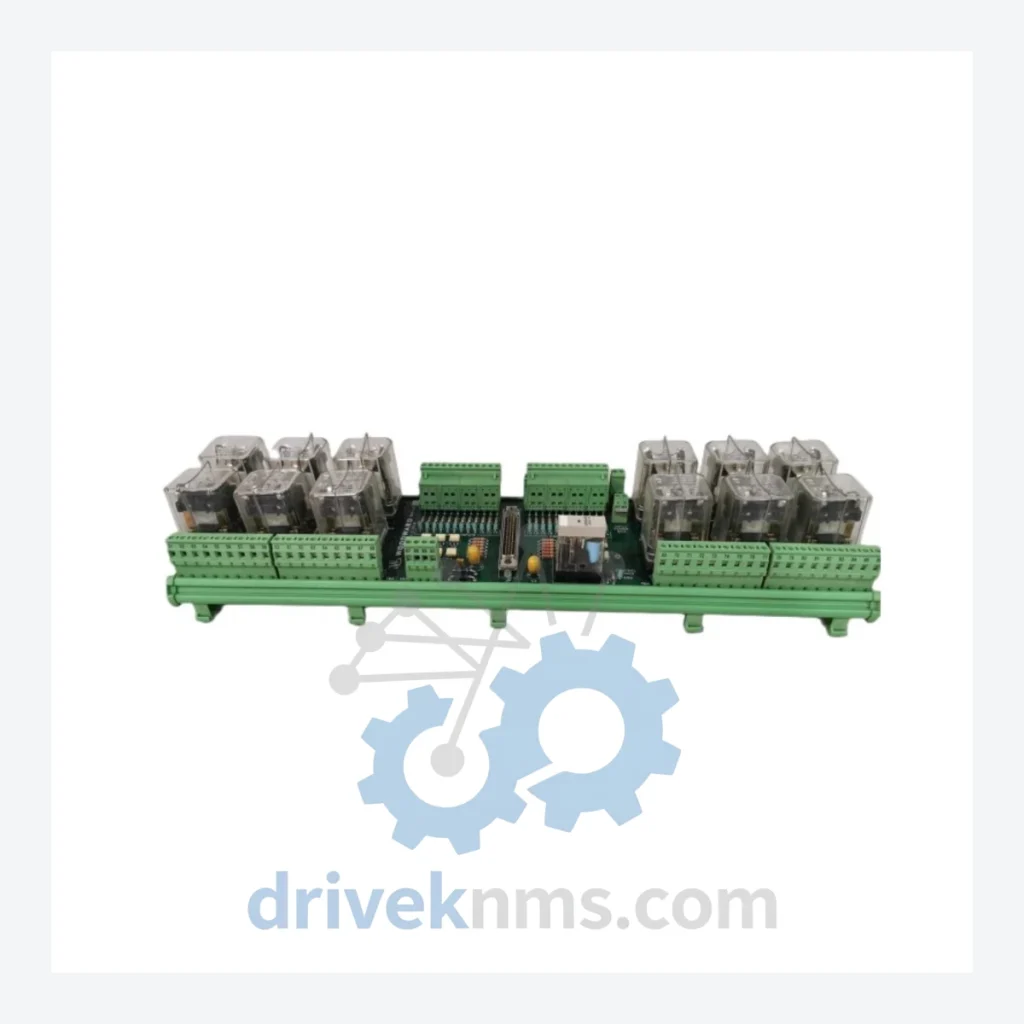

Woodward 5441-413 Relay Interface Module – Obsolete Governor Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters are not published here to prevent misapplication. Contact our technical team for verified specification confirmation prior to ordering.

Solving the Discontinued Hardware Crisis

Woodward governor control systems have been the backbone of gas turbine, steam turbine, and hydro power generation facilities for decades. The relay interface module within these systems handles the critical handshake between the governor controller and external relay logic — managing start/stop sequences, load shedding signals, and protective trip circuits. There is no generic substitute. The signal conditioning, relay timing, and backplane interface of the 5441-413 are specific to Woodward's control architecture.

When this module fails, plant operators face a binary choice: locate an original replacement, or commit to a full control system upgrade. The upgrade path is not simply a procurement decision — it requires months of engineering design, FAT/SAT testing, regulatory re-certification in many jurisdictions, and a planned outage window that most facilities cannot afford. For power generation assets with 20–40 year operational lifespans, the economic case for maintaining original hardware is clear. A single 5441-413 module, properly sourced and verified, can extend the operational life of the entire control system by 5 to 10 years at a fraction of the cost of platform migration.

Condition & Reliability Assurance

DriveKNMS applies a 5-step quality assurance protocol to all obsolete modules before dispatch review:

• Step 1 – Visual & Mechanical Inspection: Full board inspection for physical damage, burnt traces, cracked solder joints, and connector pin integrity.
• Step 2 – Electrolytic Capacitor Assessment: Aging electrolytic capacitors are the primary failure mode in legacy PCBs. Each capacitor is tested for ESR and capacitance drift. Units with out-of-tolerance capacitors are either recapped or quarantined.
• Step 3 – Firmware & Configuration Verification: Where applicable, firmware version is confirmed against the known compatible revision for the target system. No unauthorized firmware modifications are made.
• Step 4 – Pin & Contact Corrosion Inspection: All connector pins and edge contacts are inspected under magnification and cleaned to IPC standards. Corroded contacts are flagged and addressed before release.
• Step 5 – Functional Burn-In Test: Modules are powered and exercised under controlled conditions prior to packaging. Only units that pass all five steps are released for sale.

Key Features for System Maintenance

Q: How do I know the unit is genuine and not counterfeit?
A: All units are sourced through traceable industrial channels. Physical markings, board revision codes, and component dates are cross-referenced against known-good references. We do not source from unverified secondary markets.

Q: Can you confirm compatibility with my specific system configuration before I order?
A: Yes. Provide your system model, existing module revision, and application details to our technical team. We will confirm compatibility before processing the order.
