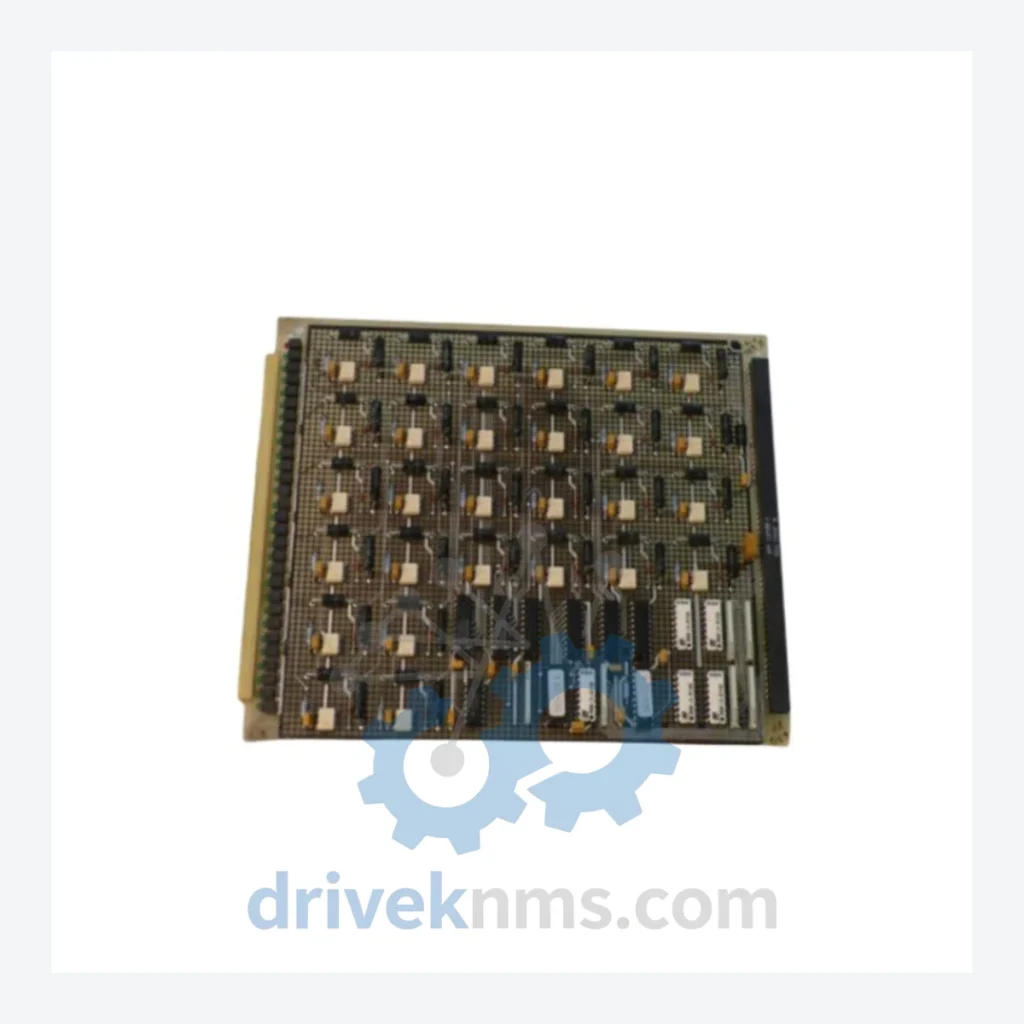

Woodward 5000 Series Modules | 5462-757 Discrete Input Module

Technical Dossier

Product Details And Specifications

Woodward 5000 Series Technical Notes

The Evolution of 5000 Series Architecture

The Woodward 5000 Series evolved from earlier analog governor control platforms into a fully digital, rack-based modular architecture. The platform introduced a proprietary backplane bus that allows CPU, I/O, and communication modules to share a common data highway within a single chassis. Early revisions used parallel backplane addressing; later hardware revisions introduced higher-speed serial backplane variants, creating compatibility constraints between first-generation and second-generation I/O modules that plant engineers must account for during upgrades or module substitutions.

The series progressed through several hardware generations: initial releases focused on discrete and analog I/O for turbine speed and temperature control; mid-generation releases added redundant CPU configurations and expanded communication adapter options (Modbus RTU, PROFIBUS DP, DeviceNet); late-generation releases introduced enhanced diagnostics and self-test routines. As of 2026, the 5000 Series is in the mature-to-end-of-life phase. Woodward has transitioned new projects to the MicroNet Plus and MicroNet TMR platforms. However, the installed base of 5000 Series systems remains substantial, and Woodward-authorized service partners continue to provide repair, calibration, and replacement module support.

5000 Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced modules within the Woodward 5000 Series. Modules are classified by functional category.

Discrete Input Modules

• 5462-757: 24 VDC discrete input module, 16-channel, rack-mount, backplane bus interface — the subject of this listing.
• 5462-756: 24 VDC discrete input module, 8-channel, compatible with standard 5000 Series chassis backplane.
• 5462-760: 120 VAC discrete input module, 16-channel, for high-voltage field signal conditioning.
• 5462-761: 120 VAC discrete input module, 8-channel, isolated input design for noise-sensitive environments.

Discrete Output Modules

• 5462-770: 24 VDC discrete output module, 16-channel, solid-state relay outputs, 0.5 A per channel.
• 5462-771: 24 VDC discrete output module, 8-channel, relay contact outputs for high-inrush loads.
• 5462-772: 120 VAC discrete output module, 16-channel, triac output, for AC actuator control.

Analog Input Modules

• 5462-700: 4–20 mA analog input module, 8-channel, 12-bit resolution, for process variable monitoring.
• 5462-701: 4–20 mA / 0–10 VDC analog input module, 4-channel, configurable input range per channel.
• 5462-710: Thermocouple input module, 8-channel, supports J, K, T, E type thermocouples, cold-junction compensated.
• 5462-711: RTD input module, 4-channel, supports PT100 and PT1000, 3-wire configuration.

Analog Output Modules

• 5462-720: 4–20 mA analog output module, 4-channel, 12-bit resolution, for valve positioner and actuator control.
• 5462-721: 0–10 VDC analog output module, 4-channel, for speed reference and setpoint transmission.

CPU / Controller Modules

• 5462-600: Main CPU module, single-processor, 32-bit architecture, primary control execution for 5000 Series chassis.
• 5462-601: Redundant CPU module, hot-standby configuration, automatic failover, for critical turbine control applications.

Communication Adapter Modules

• 5462-800: Modbus RTU communication adapter, RS-485 interface, for DCS integration and SCADA connectivity.
• 5462-810: PROFIBUS DP communication adapter, supports DP-V0 and DP-V1 profiles, for fieldbus-based plant networks.
• 5462-820: Ethernet TCP/IP communication module, 10/100 Mbps, for modern plant historian and OPC-DA server integration.

Power Supply Modules

• 5462-900: 24 VDC rack power supply module, 10 A output, single-rail, for standard 5000 Series chassis.
• 5462-901: Redundant power supply module, dual-input 24 VDC, automatic switchover, for high-availability installations.

Sourcing Hard-to-Find & Obsolete 5000 Series Parts

For plant operators who cannot justify a full control system migration, DriveKNMS provides lifecycle extension support: module-level repair with functional test certification, cross-reference identification for compatible substitute part numbers, and consignment sourcing for low-volume emergency requirements. All sourced modules are traceable to documented origin and are not counterfeit or remarked components.

Quality Control for the 5000 Series Range

The Woodward 5000 Series backplane uses a proprietary parallel/serial hybrid bus that requires module-level functional validation beyond standard power-on testing. DriveKNMS applies the following test protocol to all 5000 Series modules prior to shipment:

• Visual inspection: PCB condition, connector pin integrity, conformal coating assessment, capacitor ESR check.
• Powered functional test: Module inserted into a live 5000 Series test chassis; backplane communication handshake verified; all I/O channels exercised against calibrated signal sources.
• For discrete input modules (including 5462-757): all 16 input channels are individually stimulated at 24 VDC nominal and verified for correct state registration in the CPU scan cycle.
• For analog modules: channel linearity, offset error, and gain error are measured across the full input/output range and compared against Woodward factory tolerance specifications.
• Final burn-in: 4-hour powered soak at ambient temperature prior to packaging.
