Woodward 5464-648 Analog Output Module – Obsolete 500 Series Spare Part

Technical Dossier

Product Details And Specifications

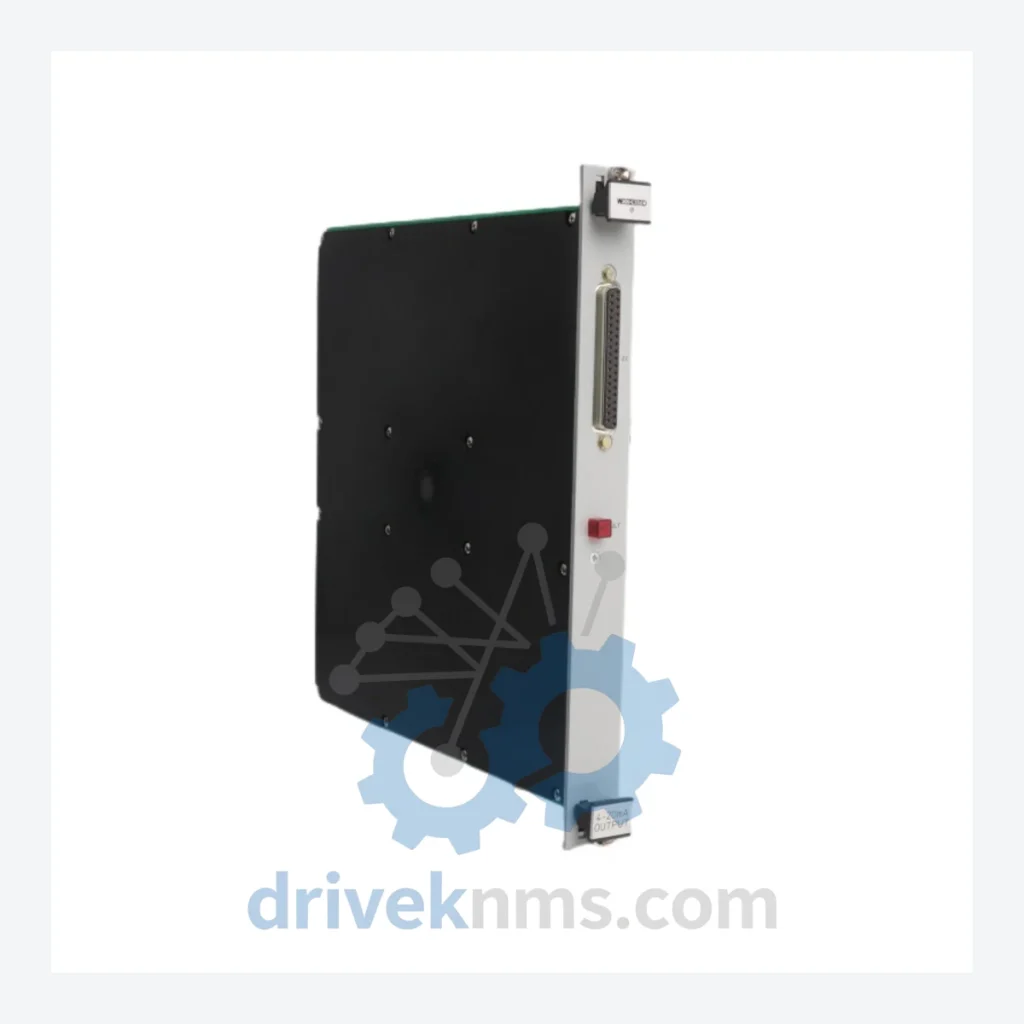

Woodward 5464-648 Analog Output Module – Obsolete 500 Series Spare Part

When a single analog output module fails in a Woodward 500 Series turbine or compressor control system, the consequences extend far beyond the cost of the component itself. A forced system-wide upgrade — driven by one unavailable spare — routinely carries engineering, commissioning, and production-loss costs measured in the hundreds of thousands to millions of dollars. The Woodward 5464-648 is a discontinued 8-channel 4-20mA analog output module that remains a load-bearing component in a large installed base of legacy turbine and process control systems worldwide. DriveKNMS maintains verified stock of this module specifically to protect facilities from that scenario.

Technical Specifications

Solving the Discontinued Hardware Crisis

The Woodward 505 and 500 Series control platforms were deployed extensively across gas turbine, steam turbine, and compressor applications from the 1980s through the 2000s. Many of these systems remain in active service — not because operators are unaware of their age, but because the cost and risk of replacing a functioning control architecture cannot be justified against current capital budgets.

The 5464-648 analog output module sits at the interface between the controller and final control elements — valve positioners, actuators, and variable-speed drives. Loss of this module does not degrade performance gradually; it causes an immediate and hard shutdown of the control loop it serves. In turbine applications, that means a forced unit trip. In compressor trains, it means process interruption with potential safety implications.

Sourcing a verified replacement on the open market is not straightforward. Woodward ceased production of this module, and authorized distribution channels have long since exhausted their buffer stock. What remains in circulation exists in the hands of specialist suppliers, decommissioned plant inventories, and industrial surplus channels — with no guarantee of condition or authenticity. DriveKNMS operates specifically within this supply segment, maintaining traceable stock of hard-to-find Woodward modules for facilities that cannot afford to wait.

For plant managers facing system retirement pressure: the economic case for extending a functional 500 Series installation by 5 to 10 years rests on three pillars — verified spare availability, documented maintenance procedures, and a disciplined inspection cycle. A single 5464-648 module held in on-site inventory eliminates the highest-probability failure mode that would otherwise force an unplanned upgrade decision. The cost of that insurance is a fraction of one day of lost production.

Condition & Reliability Assurance

Discontinued modules sourced from the secondary market carry age-related risks that new production components do not. DriveKNMS applies a 5-step inspection protocol to every 5464-648 unit before it is offered for sale:

• Step 1 – Electrolytic Capacitor Assessment: Capacitors are the primary age-failure component in analog output circuitry. Each board is inspected for bulging, leakage, and ESR deviation. Units with degraded capacitors are either recapped to specification or rejected.
• Step 2 – Firmware Version Verification: Where applicable, firmware revision is confirmed against known-compatible versions for the target 500 Series platform to prevent integration conflicts.
• Step 3 – Pin and Connector Inspection: All edge connectors and I/O pins are examined under magnification for oxidation, corrosion, and mechanical deformation. Contact surfaces are cleaned and treated where required.
• Step 4 – Functional Output Test: Each channel is tested for correct 4–20 mA output linearity and loop compliance under load conditions representative of field use.
• Step 5 – Cosmetic and Structural Review: Physical condition of the PCB, housing, and labeling is documented. Units showing evidence of prior field damage, unauthorized repair, or counterfeit indicators are rejected from inventory.

Key Features for System Maintenance

• Drop-in Replacement: The 5464-648 installs directly into the existing 500 Series backplane slot with no hardware modification required.
• No Reprogramming Required: Module configuration is held at the controller level. Swapping the output module does not require re-engineering the control application or recalibrating the system from scratch.
• Avoids Engineering Reconstruction Costs: Replacing this module preserves the existing control architecture. The alternative — migrating to a current-generation platform — involves control system redesign, I/O rewiring, loop tuning, and extended commissioning downtime. None of that is necessary when a verified spare is available.
• Long-Term Spares Strategy: For facilities operating multiple 500 Series units, holding two to three 5464-648 modules in bonded storage provides multi-year protection against the most common single-point failure in the analog output subsystem.

FAQ

What warranty applies to a discontinued module?
DriveKNMS provides a 90-day functional warranty on all inspected and tested units. This covers failure under normal operating conditions and excludes damage resulting from incorrect installation or electrical overstress.

How do I know the unit is genuine and not counterfeit?
Every unit is inspected against known-authentic reference samples. Board markings, component layout, and manufacturing characteristics are verified. Units that do not pass authenticity review are not offered for sale under any condition classification.

Should I buy more than one unit?
For any facility operating Woodward 500 Series equipment in continuous-duty service, holding at least one spare 5464-648 on-site is a minimum prudent position. Given the declining availability of this module in the secondary market, procurement of two to three units while stock exists is a defensible asset-protection decision. Prices for obsolete industrial modules do not decrease over time.

What condition classifications are available?
Units are offered as New Old Stock (NOS) where available, or as Tested & Refurbished (T&R) following the 5-step QA process described above. Condition classification is stated explicitly on every quotation.
