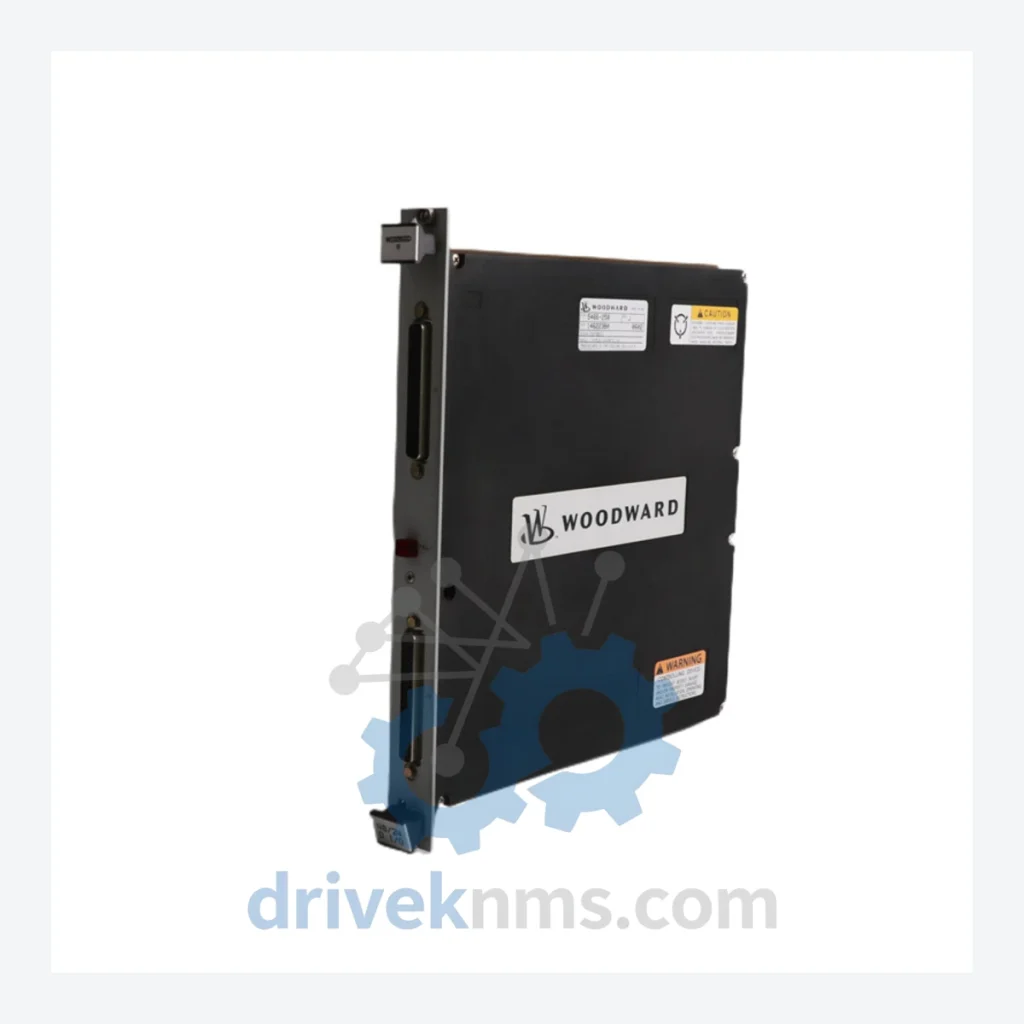

Woodward 5466 Series Modules | 5466-258 Simplex Discrete I/O Module

Technical Dossier

Product Details And Specifications

Woodward 5466 Series: Comprehensive Module Range and Technical Overview

The Woodward 5466 Series represents a core product line within Woodward's industrial control and turbine management ecosystem. Deployed extensively across global heavy industries — including petrochemical refineries, nuclear power stations, offshore platforms, and combined-cycle gas turbine (CCGT) plants — the 5466 Series provides modular I/O, communication, and control infrastructure for Woodward's MicroNet and NetCon governor control systems. These systems govern critical rotating machinery including gas turbines, steam turbines, compressors, and diesel engines. The 5466 Series is characterized by its DIN-rail and backplane-mounted architecture, deterministic real-time processing, and compatibility with Woodward's proprietary communication buses. Its installed base spans decades of continuous industrial operation, making long-term spare parts availability a primary concern for plant maintenance engineers worldwide.

The Evolution of 5466 Series Architecture

The 5466 Series was developed as part of Woodward's transition from analog governor control to fully digital, networked turbine management. Early iterations of the platform focused on discrete I/O expansion for the MicroNet TMR (Triple Modular Redundancy) and MicroNet Plus controllers. Over successive hardware revisions, the series expanded to include analog I/O modules, communication adapters (supporting Modbus RTU, Modbus TCP, and proprietary Woodward protocols), and dedicated power supply modules.

Architecturally, the 5466 Series uses a passive backplane with active module insertion, allowing hot-swap capability in redundant configurations. The series is compatible with Woodward's WoodwardSuite configuration software and integrates with SCADA systems via standard industrial protocols. As the MicroNet platform has matured into a late-lifecycle phase, the 5466 Series has transitioned from active production to a sustained availability model — meaning new units are increasingly sourced from authorized distributors, certified refurbishers, and surplus inventory specialists rather than direct factory orders.

Compatibility note: 5466 Series modules are not interchangeable with Woodward's newer MicroNet Plus II or Protech 203 platforms without engineering review. Cross-referencing firmware versions and backplane revision levels is mandatory before substitution.

5466 Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly referenced part numbers within the Woodward 5466 Series. Each module is classified by functional category:

Discrete I/O Modules

• 5466-258: Simplex Discrete I/O Module — 24 VDC digital input/output expansion for MicroNet simplex control systems.
• 5466-259: TMR Discrete I/O Module — Triple modular redundancy discrete I/O for fault-tolerant turbine control.
• 5466-260: Discrete Input Module — Dedicated 24-channel digital input module, high-density field wiring.
• 5466-261: Discrete Output Module — Relay and transistor output module for actuator and solenoid control.

Analog I/O Modules

• 5466-270: Analog Input Module — 8-channel 4–20 mA / 0–10 V configurable analog input for process variables.
• 5466-271: Analog Output Module — 4-channel analog output module for valve positioner and actuator control.
• 5466-272: RTD/Thermocouple Input Module — Multi-type temperature sensor input with cold junction compensation.
• 5466-273: High-Speed Analog Input Module — Fast-scan analog acquisition for vibration and dynamic process monitoring.

Communication & Network Adapters

• 5466-280: Modbus RTU Communication Module — RS-485 serial Modbus RTU gateway for SCADA integration.
• 5466-281: Modbus TCP/IP Ethernet Module — 10/100 Ethernet adapter for Modbus TCP supervisory communication.
• 5466-282: Woodward Link Communication Module — Proprietary Woodward inter-controller network adapter.
• 5466-283: DeviceNet Adapter Module — DeviceNet fieldbus interface for distributed I/O expansion.

CPU & Controller Modules

• 5466-300: MicroNet Controller CPU Module — Primary processing unit for MicroNet simplex governor control systems.
• 5466-301: MicroNet TMR CPU Module — Redundant triple-channel CPU for safety-critical turbine governor applications.
• 5466-310: Application Processor Module — Co-processor module for expanded control logic and HMI interface tasks.

Power Supply Modules

• 5466-320: 24 VDC Power Supply Module — Regulated DC power supply for 5466 Series backplane and field I/O circuits.
• 5466-321: Redundant Power Supply Module — Hot-standby dual power supply for continuous availability in critical installations.

Sourcing Hard-to-Find & Obsolete 5466 Series Parts

As the Woodward 5466 Series has entered its mature and end-of-active-production lifecycle phase, procurement of specific modules — particularly low-volume I/O variants and communication adapters — has become increasingly difficult through standard distribution channels. DriveKNMS maintains a dedicated inventory program for 5466 Series components, sourced from decommissioned plant equipment, certified surplus stock, and controlled refurbishment pipelines.

DriveKNMS provides the following lifecycle support services for the 5466 Series:

• Verified surplus stock of common and low-volume 5466 SKUs
• Functional testing against Woodward factory test specifications prior to shipment
• Cross-reference and substitution advisory for discontinued part numbers
• Emergency same-day quotation for unplanned outage procurement
• Export documentation and compliance support for international shipments

Plant engineers managing aging MicroNet installations are advised to establish a strategic spare parts buffer for 5466 Series modules, particularly CPU and communication modules, which carry the longest lead times when sourced new.

Quality Control for the 5466 Series Range

The Woodward 5466 Series presents specific quality verification challenges due to its backplane-dependent architecture and proprietary communication bus. DriveKNMS applies the following test procedures to all 5466 Series units prior to dispatch:

• Backplane continuity test: All edge connector pins verified for continuity and correct impedance against reference specifications.
• Power-on functional test: Each module powered in an isolated 5466-compatible test rack; LED status indicators and self-diagnostic outputs verified.
• I/O channel verification: For discrete modules, all input and output channels individually stimulated and verified. For analog modules, calibration accuracy verified across the full signal range (0–20 mA, 0–10 V).
• Communication bus test: Communication modules verified for correct protocol handshake and data frame integrity using protocol analyzers.
• Thermal cycling: Units subjected to operational temperature range cycling (0°C to 60°C) to identify latent component failures.
• Firmware version logging: Firmware revision recorded and disclosed to customer prior to shipment to ensure compatibility with target control system.

All test records are retained and available upon request. Units that do not pass all test stages are quarantined and not offered for sale.
