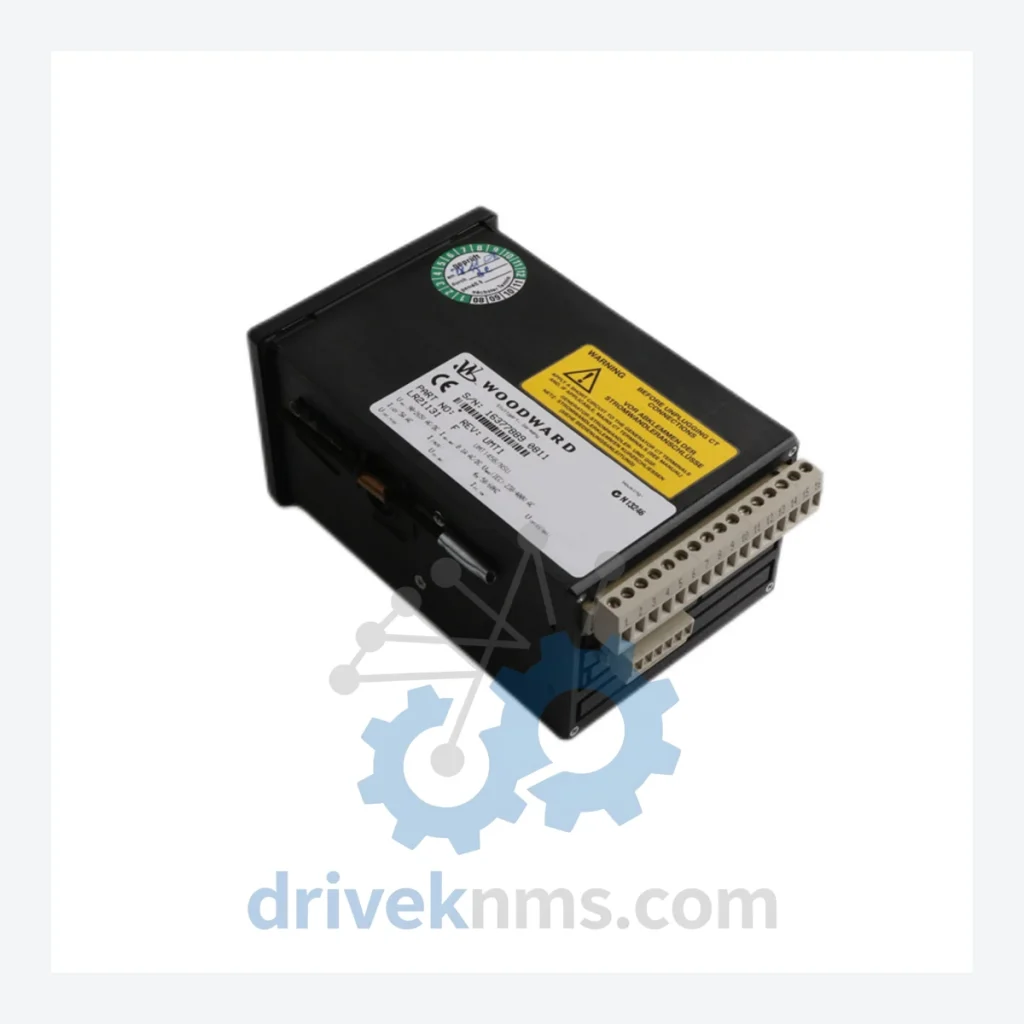

WOODWARD UMT1 Modules: UMT145B/NSU LR21131 Battery Module —

Technical Dossier

Product Details And Specifications

WOODWARD UMT1 Series: Comprehensive Module Range and Technical Overview

The WOODWARD UMT1 series is a family of modular control and power management components deployed across heavy industrial sectors including petrochemical refining, power generation, offshore platforms, and nuclear auxiliary systems. WOODWARD, headquartered in Fort Collins, Colorado (USA), has supplied turbine and engine control systems to critical infrastructure globally for over a century. The UMT1 platform represents one of its established mid-generation control architectures, widely installed in gas turbine governor systems, steam turbine control panels, and combined-cycle plant automation racks. Units from this series remain in active service at facilities with 20–30 year operational horizons, making long-term spare parts availability a primary procurement concern for plant engineers and maintenance contractors.

The Evolution of UMT1 Architecture

The UMT1 platform was developed as part of WOODWARD's transition from discrete relay-based governor panels to integrated digital control modules during the late 1980s and 1990s. Early UMT1 variants used parallel backplane communication with proprietary WOODWARD bus protocols, designed for deterministic real-time response in turbine speed and load control applications. Mid-generation revisions introduced enhanced battery-backed memory retention (as seen in the UMT145B/NSU LR21131 battery module), allowing control parameter preservation during power interruptions — a critical requirement in uninterruptible turbine control environments.

As WOODWARD transitioned its product line toward the MicroNet, NetCon, and 505 series platforms through the 2000s and 2010s, the UMT1 series entered a maintenance and end-of-life phase. Direct OEM support has been discontinued for most UMT1 part numbers; however, the installed base remains substantial. Compatibility between UMT1 modules is constrained by backplane revision and firmware version — cross-substitution between sub-variants requires engineering validation. Modern replacement pathways typically involve full panel upgrades to WOODWARD MicroNet TMR or third-party retrofit solutions.

UMT1 Full Catalog & Functionalities (SKU List)

The following SKUs represent confirmed components within the WOODWARD UMT1 control system family, organized by functional category:

Battery & Power Backup Modules

UMT1 UMT145B/NSU LR21131: Battery backup module; maintains SRAM/NVRAM data retention during power loss events in UMT1 governor control racks.

UMT145B/NSU: Base battery module assembly; paired with LR21131 cell for field replacement cycles.

UMT1 PWR-24VDC: 24 VDC regulated power supply module for UMT1 rack; provides isolated bus voltage to I/O and CPU cards.

Control & CPU Modules

UMT1 CPU-01: Primary processor card; executes governor control algorithms and manages inter-module communication over UMT1 backplane.

UMT1 CPU-02: Revised CPU module with expanded program memory; backward-compatible with UMT1 CPU-01 rack positions.

UMT1 PROC-A: Analog processing sub-module; handles speed signal conditioning and setpoint calculation for turbine governor loops.

Analog Input Modules (AI)

UMT1 AI-04: 4-channel analog input module; 4–20 mA / 0–10 V configurable; used for temperature, pressure, and load feedback signals.

UMT1 AI-08: 8-channel analog input expansion; supports differential and single-ended wiring configurations.

UMT1 AI-16: 16-channel high-density analog input card; deployed in large turbine panels requiring extensive process variable monitoring.

Digital Input Modules (DI)

UMT1 DI-08: 8-channel 24 VDC digital input module; used for discrete status signals including trip relays, valve position, and permissive interlocks.

UMT1 DI-16: 16-channel digital input card; supports both sourcing and sinking input configurations.

Digital Output Modules (DO)

UMT1 DO-08R: 8-channel relay output module; rated for 2A resistive loads; used for alarm annunciation and actuator command outputs.

UMT1 DO-16: 16-channel transistor output module; 24 VDC solid-state switching for high-cycle solenoid valve applications.

Communication & Network Adapters

UMT1 COMM-RS232: RS-232 serial communication adapter; interfaces UMT1 CPU with HMI terminals and historian systems.

UMT1 COMM-485: RS-485 multi-drop communication module; supports Modbus RTU protocol for SCADA integration.

UMT1 NET-ETH: Ethernet gateway adapter; retrofitted to UMT1 racks for OPC-DA/OPC-UA connectivity to modern DCS platforms.

Speed & Frequency Input Modules

UMT1 MPU-02: Dual-channel magnetic pickup unit input module; processes turbine shaft speed signals from passive MPU sensors; configurable pulse-per-revolution scaling.

Sourcing Hard-to-Find & Obsolete UMT1 Parts

The WOODWARD UMT1 series has been formally discontinued by the OEM, with no new production runs available through authorized distribution channels. DriveKNMS maintains a dedicated inventory program for UMT1 spare parts, sourced through decommissioned plant buybacks, controlled surplus channels, and tested pull inventory from retired turbine control panels. All units are inspected against original WOODWARD engineering documentation prior to listing.

For battery modules such as the UMT1 UMT145B/NSU LR21131, DriveKNMS provides cell replacement and module reconditioning services, restoring backup retention capacity to OEM specification. Lead times for low-volume UMT1 parts are typically 3–10 business days from confirmed stock; for rare sub-variants, DriveKNMS operates a global sourcing network with access to plant maintenance warehouses across North America, Europe, and Southeast Asia.

Customers operating facilities with UMT1-based governor systems are advised to establish a standing spare parts agreement to mitigate unplanned downtime risk, given the absence of OEM replenishment pipelines.

Quality Control for the UMT1 Range

UMT1 modules present specific testing challenges due to their proprietary backplane bus architecture and battery-dependent memory subsystems. DriveKNMS applies the following verification procedures to all UMT1 inventory:

Backplane Communication Test: Each module is seated in a UMT1-compatible test rack and subjected to live backplane polling to confirm address recognition and data integrity across the proprietary WOODWARD bus.

Battery Retention Verification: For battery modules including the UMT145B/NSU LR21131, cell voltage is measured under load, and SRAM retention is validated over a minimum 72-hour hold period without external power.

Analog Signal Calibration: AI and AO modules are tested across the full input/output range (0–20 mA, 0–10 V) using calibrated signal sources, with linearity and offset error recorded against OEM tolerance specifications.

Digital I/O Functional Test: All DI and DO channels are individually exercised; relay contact resistance is measured on DO-R variants; transistor output leakage current is verified on solid-state DO modules.

Visual and Component Inspection: PCB surfaces are inspected for electrolytic capacitor bulge, corrosion on edge connectors, and solder joint integrity — common failure modes in UMT1 modules after 15+ years of service.
