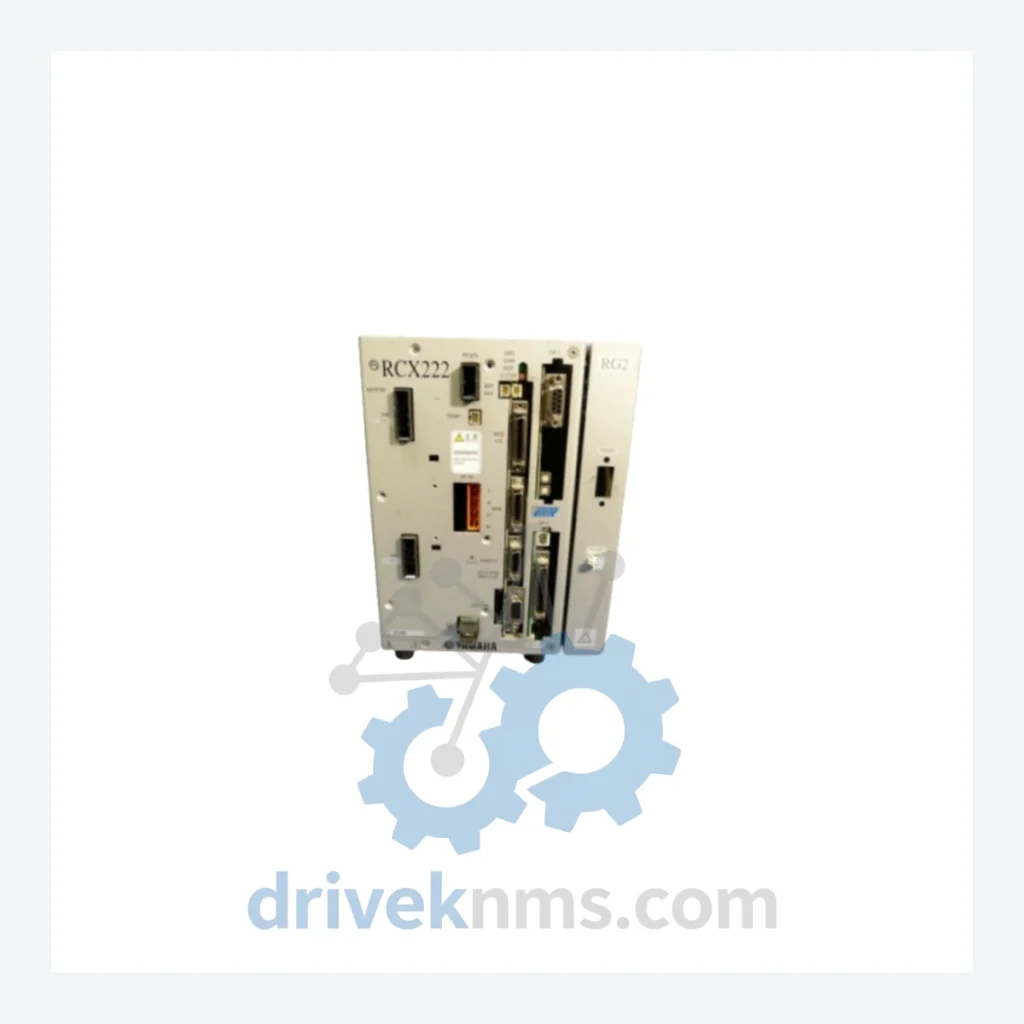

YAMAHA RCX222 Robot Controller – Obsolete YAMAHA SCARA Spare Part

Technical Dossier

Product Details And Specifications

YAMAHA RCX222 Robot Controller – Obsolete YAMAHA SCARA Spare Part

A single failed RCX222 controller can bring an entire YAMAHA SCARA robot cell to a complete standstill. For facilities running legacy YAMAHA RCX-series automation lines — common in electronics assembly, semiconductor handling, and precision dispensing — the cost of a forced system upgrade is not measured in thousands of dollars. It is measured in weeks of lost production, six-figure engineering re-integration fees, and the full capital expenditure of a new robot platform. The YAMAHA RCX222 has been discontinued by the OEM. Replacement units are no longer available through standard distribution channels. DriveKNMS maintains a carefully managed inventory of genuine RCX222 controllers sourced from decommissioned lines and verified refurbishment programs, specifically to support facilities that cannot justify a full system migration.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters not independently verified by DriveKNMS are intentionally omitted. All specifications above are sourced from publicly available YAMAHA documentation. Do not rely on third-party parameter listings for safety-critical applications without OEM datasheet confirmation.

Solving the Discontinued Hardware Crisis

The RCX222 was deployed extensively throughout the 2000s and early 2010s in YAMAHA SCARA robot installations across automotive sub-assembly, PCB handling, and laboratory automation. Its YAMAHA BASIC programming environment and compact two-axis control architecture made it a standard choice for integrators building cost-efficient pick-and-place cells.

A verified RCX222 replacement unit eliminates this cost entirely. The existing motion programs, I/O wiring, and teach pendant remain fully compatible. The robot cell returns to production without re-engineering. For multi-cell facilities, maintaining a single RCX222 spare in inventory represents a risk mitigation investment with a return measured in orders of magnitude.

Condition & Reliability Assurance

Discontinued controllers sourced from the secondary market carry inherent risk if not properly evaluated. DriveKNMS applies a structured 5-step qualification process to every RCX222 unit before it is offered for sale:

1. Electrolytic Capacitor Assessment: All electrolytic capacitors on the main control board and power supply section are inspected for bulging, leakage, and ESR degradation. Units with capacitor failure indicators are either recapped by qualified technicians or rejected from inventory.
2. Firmware Version Verification: The installed firmware version is documented and cross-referenced against known compatibility requirements for the target YAMAHA SCARA robot model. Firmware downgrade or upgrade paths are noted where applicable.
3. Pin and Connector Corrosion Inspection: All I/O connectors, communication ports, and internal board-to-board connectors are inspected under magnification for oxidation, pin deformation, and contact resistance anomalies.
4. Power-On Functional Test: Each unit is powered on and subjected to a basic operational check including axis initialization response, I/O signal verification, and communication port handshake confirmation.
5. Final Documentation: A condition report is issued with each unit, recording test results, firmware version, and any remediation work performed.

Key Features for System Maintenance

Q: Can the RCX222 be used with newer YAMAHA SCARA models?
A: Compatibility is robot-model specific. Contact DriveKNMS with your robot model number and current firmware version for a compatibility assessment before purchase.
