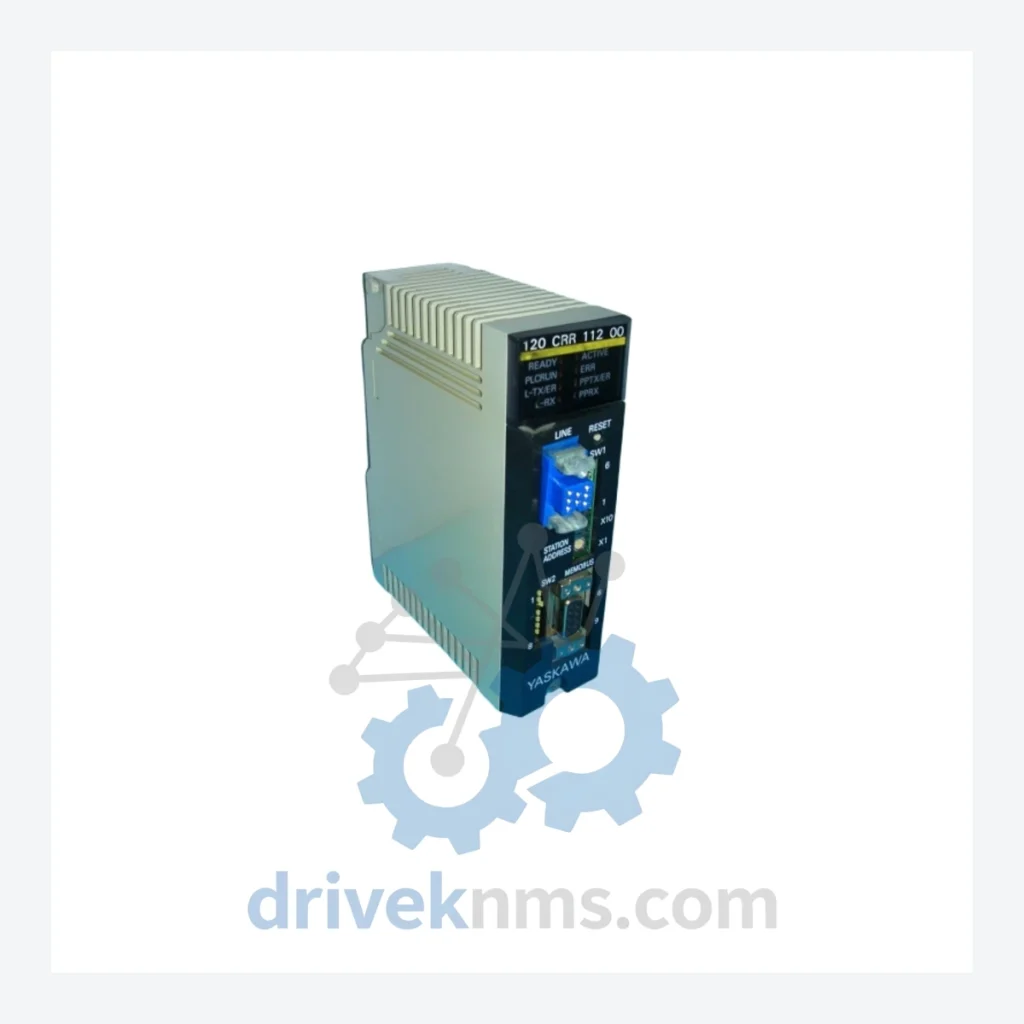

Yaskawa JAMSC-120CRR11200 Remote I/O Receiver Module – Obsolete Memocon Series Spare Part

Technical Dossier

Product Details And Specifications

Yaskawa JAMSC-120CRR11200 Remote I/O Receiver Module – Obsolete Memocon Series Spare Part

When a Remote I/O Receiver Module fails inside a Yaskawa Memocon-based control architecture, the consequences extend far beyond a single card replacement. The JAMSC-120CRR11200 sits at the communication backbone of the remote I/O network — its failure severs the data link between the CPU and field devices, bringing the entire controlled process to a halt. For facilities running legacy Memocon MP900, MP2000, or CP9200SH systems, there is no modern drop-in equivalent that does not require a full engineering redesign. A forced migration to a current-generation PLC platform — including hardware, software, integration, and revalidation — routinely costs between USD 300,000 and USD 1,500,000 per production line, and that figure does not account for lost production during the transition period.

DriveKNMS maintains verified physical stock of the JAMSC-120CRR11200. This is not a catalog listing. Procurement teams and plant engineers facing unplanned downtime or building a long-term spares buffer should act on confirmed availability rather than wait for a secondary market search that may return nothing.

Technical Specifications

Solving the Discontinued Hardware Crisis

The Yaskawa Memocon platform was deployed extensively across automotive stamping lines, steel processing equipment, paper mills, and chemical batch systems throughout the 1990s and 2000s. The JAMSC-120CRR11200 is a receiver-side node in the remote I/O communication chain — it translates serial link data from the transmitter into parallel I/O signals that field devices can act upon. Without it, the CPU loses visibility of and control over every device connected downstream on that I/O segment.

Yaskawa ceased production of the JAMSC-120 series modules years ago. Authorized distributor stock has been exhausted. The only reliable source is the secondary industrial market, where verified, tested units are increasingly scarce. Facilities that have not established a spares buffer are exposed to lead times measured in weeks or months — if a unit can be located at all.

The economic case for maintaining this hardware rather than replacing the control system is straightforward. A single JAMSC-120CRR11200 unit, sourced and held as a critical spare, costs a fraction of one percent of the capital expenditure required to retire and replace the surrounding automation infrastructure. For plant managers operating under capital budget constraints, this is not a compromise — it is the rational asset protection strategy.

Extending the operational life of a Memocon-based system by 5 to 10 years through disciplined spare parts management requires three things: a verified inventory of high-failure-risk modules (receiver and transmitter I/O cards, power supply units, and CPU boards rank highest), a documented failure mode register for each module type, and a qualified source for replacement units. DriveKNMS addresses the third requirement directly. The first two are the responsibility of the plant engineering team, and we can advise on prioritization based on the modules we most frequently supply.

Condition & Reliability Assurance

Every JAMSC-120CRR11200 unit that leaves DriveKNMS has passed a structured 5-step inspection protocol developed specifically for legacy industrial modules:

• Step 1 – Visual and Mechanical Inspection: Board surface examined for physical damage, burn marks, cracked solder joints, and connector pin integrity. Units with any structural compromise are rejected at this stage.
• Step 2 – Electrolytic Capacitor Assessment: Capacitors are the primary age-related failure point in modules of this era. Each unit is inspected for bulging, electrolyte leakage, and ESR deviation. Capacitors showing degradation are flagged; units are not shipped with known capacitor faults.
• Step 3 – Connector and Pin Corrosion Check: Backplane connectors and I/O terminal interfaces are inspected under magnification for oxidation and corrosion. Contact surfaces are cleaned where necessary and re-inspected before approval.
• Step 4 – Firmware and Label Verification: Where accessible, firmware version markings are cross-referenced against known Memocon system compatibility matrices to confirm the unit is appropriate for the target application.
• Step 5 – Functional Verification: Units are powered and tested for basic communication response where test infrastructure permits. Results are documented and available on request.

Units are classified as New Old Stock (NOS), Tested Surplus, or Refurbished, and this classification is disclosed at the point of sale. We do not mix condition grades within a single order without explicit customer agreement.

Key Features for System Maintenance

• Drop-in replacement: The JAMSC-120CRR11200 installs into the existing backplane slot without mechanical modification. No rewiring of field devices is required.
• No reprogramming required: The replacement module operates with the existing CPU program and I/O configuration. There is no need to modify ladder logic, function block diagrams, or I/O address maps.
• No engineering redesign: Unlike a platform migration, swapping this module does not trigger a revalidation cycle, safety review, or production qualification run — provided the replacement unit matches the original part number and firmware revision.
• Immediate operational restoration: Correctly installed, the module restores the remote I/O link and returns the controlled process to normal operation. Downtime is limited to the physical replacement and system restart sequence.
• Capital expenditure avoidance: Each year of extended service life from the existing Memocon system defers the capital cost of platform replacement and preserves engineering resources for higher-priority projects.

FAQ

What warranty applies to a discontinued module like the JAMSC-120CRR11200?
DriveKNMS provides a 90-day warranty covering functional defects identified under normal operating conditions. Extended warranty terms are available for volume orders. Warranty does not cover damage resulting from incorrect installation or operation outside the module's rated parameters.

How do I confirm the unit is genuine and not a counterfeit?
All units are sourced from documented industrial surplus channels — decommissioned plant equipment, authorized distributor closeouts, and verified broker networks. Yaskawa part number labels, date codes, and board markings are inspected for consistency. We do not source from unverified online marketplaces. Documentation of unit origin is available on request for critical applications.

Should I order more than one unit?
For any Memocon installation where the JAMSC-120CRR11200 is a single point of failure, holding a minimum of one cold spare is standard practice. For facilities with multiple I/O segments using this module, a ratio of one spare per three installed units is a defensible starting position. Given the declining availability of this part number on the secondary market, procurement decisions made today will be more favorable than those made after a failure event.

Can you source other JAMSC-120 series modules?
Yes. DriveKNMS maintains stock and sourcing capability across the broader JAMSC-120 module family. Contact us with your full bill of materials for a consolidated availability check.
