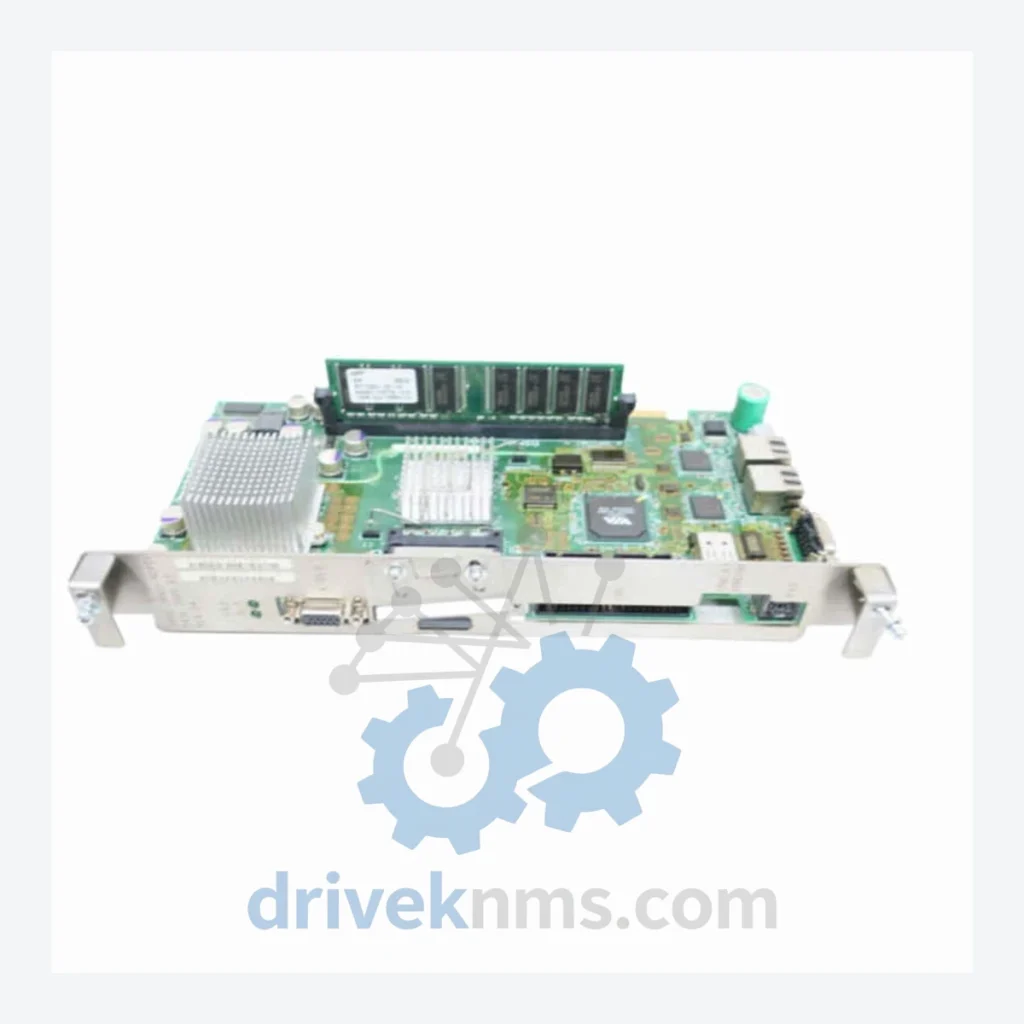

Yaskawa JANCD-NCP01 Robot Controller CPU Board – Obsolete Motoman NX100 Spare Part

Technical Dossier

Product Details And Specifications

Yaskawa JANCD-NCP01 Robot Controller CPU Board – Obsolete Motoman NX100 Spare Part

When the JANCD-NCP01 CPU board fails inside a Motoman NX100 robot controller, the production line does not pause politely. It stops. For facilities running Yaskawa Motoman NX100 or NX100+ systems, this board is the central processing unit that governs all motion coordination, I/O communication, and safety interlock logic. There is no field-level workaround. Without a direct replacement, the robot is offline.

The cost of that downtime is not abstract. A single robotic welding or assembly cell going dark can halt an entire production sequence. Engineering teams are then forced into an emergency evaluation: source the obsolete board, or commit to a full controller replacement program that routinely runs into six figures per unit — before factoring in reprogramming, re-certification, and lost production weeks. DriveKNMS maintains verified stock of the JANCD-NCP01 specifically to give maintenance managers a third option: restore the existing asset, protect the capital already invested, and defer the upgrade decision on your own schedule.

Technical Specifications

Solving the Discontinued Hardware Crisis

The Motoman NX100 controller platform was deployed extensively across automotive, metal fabrication, and general manufacturing sectors through the 2000s and into the 2010s. Many of these installations remain productive assets — mechanically sound robots with thousands of hours of remaining service life, running proven process programs that took years to develop and validate.

Yaskawa has since moved to successor platforms. Replacement parts for the NX100 series are no longer available through standard distribution channels. When a CPU board like the JANCD-NCP01 fails, the maintenance team faces a sourcing problem that cannot be solved through a standard purchase order.

This is the hardware crisis that defines obsolete parts management. The robot itself is not worn out. The tooling, fixtures, and process logic built around it represent substantial sunk investment. The failure of a single circuit board — a component that originally cost a fraction of the system's total value — should not force a capital expenditure decision measured in hundreds of thousands of dollars. Sourcing a verified JANCD-NCP01 replacement is the direct, low-cost path to restoring full system function without touching the surrounding infrastructure.

For plant managers operating under asset-life extension mandates, maintaining a buffer stock of critical CPU boards is a documented risk mitigation strategy. The cost of holding two spare JANCD-NCP01 units is negligible against the cost of a single unplanned outage. DriveKNMS sources, inspects, and holds these boards so that your maintenance team has a reliable supply point when the failure occurs — not after a six-week search.

Condition & Reliability Assurance

Obsolete boards sourced from secondary markets carry real risk if they are not properly evaluated before installation. DriveKNMS applies a 5-step inspection protocol to every JANCD-NCP01 unit before it is offered for sale:

• Step 1 – Visual Inspection: Full board examination for physical damage, burn marks, cracked solder joints, and corrosion on connector pins and edge contacts.
• Step 2 – Electrolytic Capacitor Assessment: Targeted inspection of all electrolytic capacitors for signs of bulging, leakage, or ESR degradation — the most common failure mode in boards of this age.
• Step 3 – Firmware Version Verification: Where accessible, firmware revision is documented and cross-referenced against known NX100 compatibility requirements.
• Step 4 – Pin and Connector Integrity Check: All board connectors are inspected for corrosion, bent pins, and contact resistance issues that would cause intermittent faults after installation.
• Step 5 – Functional Bench Test: Where test equipment permits, boards are powered and basic operational checks are performed prior to packaging.

Each unit is packaged in anti-static materials and shipped with documentation of its inspection status. Condition grade is disclosed clearly — new old stock, refurbished, or tested-used — before purchase is confirmed.

Key Features for System Maintenance

• Drop-in Replacement: The JANCD-NCP01 installs directly into the NX100 controller chassis using the original mounting points and connectors. No mechanical modification is required.
• No Reprogramming Required: Robot job files, I/O assignments, and system parameters reside in separate memory modules within the NX100 architecture. Replacing the CPU board does not erase or require reloading of existing programs under standard conditions.
• Avoids Engineering Reconstruction Costs: A controller platform migration requires re-teaching robot paths, re-mapping I/O, updating safety validation documentation, and often modifying peripheral equipment interfaces. A direct board replacement eliminates all of that cost.
• Extends Asset Life by 5–10 Years: A functioning NX100 controller with a replaced CPU board can continue operating for a further decade, provided other wear components are maintained. The mechanical robot arm, servo drives, and process tooling are unaffected by the board swap.
• Supports Long-Term Spare Parts Strategy: Facilities managing multiple NX100 units should consider holding at least one JANCD-NCP01 in reserve. The secondary market supply of this board will continue to tighten as existing units are consumed. Procurement now, at current pricing, is a straightforward hedge against future scarcity.

FAQ

Q: What warranty applies to an obsolete part like the JANCD-NCP01?
A: DriveKNMS provides a 90-day warranty against defects identified under normal operating conditions. Warranty terms are confirmed in writing at the time of sale.

Q: How do I know the board is genuine and not a counterfeit?
A: All units are sourced from decommissioned OEM equipment or verified industrial surplus channels. Board markings, PCB revision codes, and component profiles are cross-checked against known genuine examples. Counterfeit risk is documented and disclosed if any uncertainty exists.

Q: Should I buy more than one unit?
A: For facilities operating two or more NX100 controllers, holding a minimum of one spare JANCD-NCP01 per controller cluster is a standard risk management practice. Secondary market availability of this board is finite and declining. Procurement in advance of failure is consistently lower cost than emergency sourcing under production pressure.

Q: Can this board be used in NX100+ controllers as well?
A: Compatibility between NX100 and NX100+ variants should be verified against your specific controller serial number and configuration documentation before installation. Contact DriveKNMS for pre-sale compatibility consultation.
