Yaskawa JANCD-YIO22-E Servo I/O Harness – Obsolete Sigma Series Spare Part

Technical Dossier

Product Details And Specifications

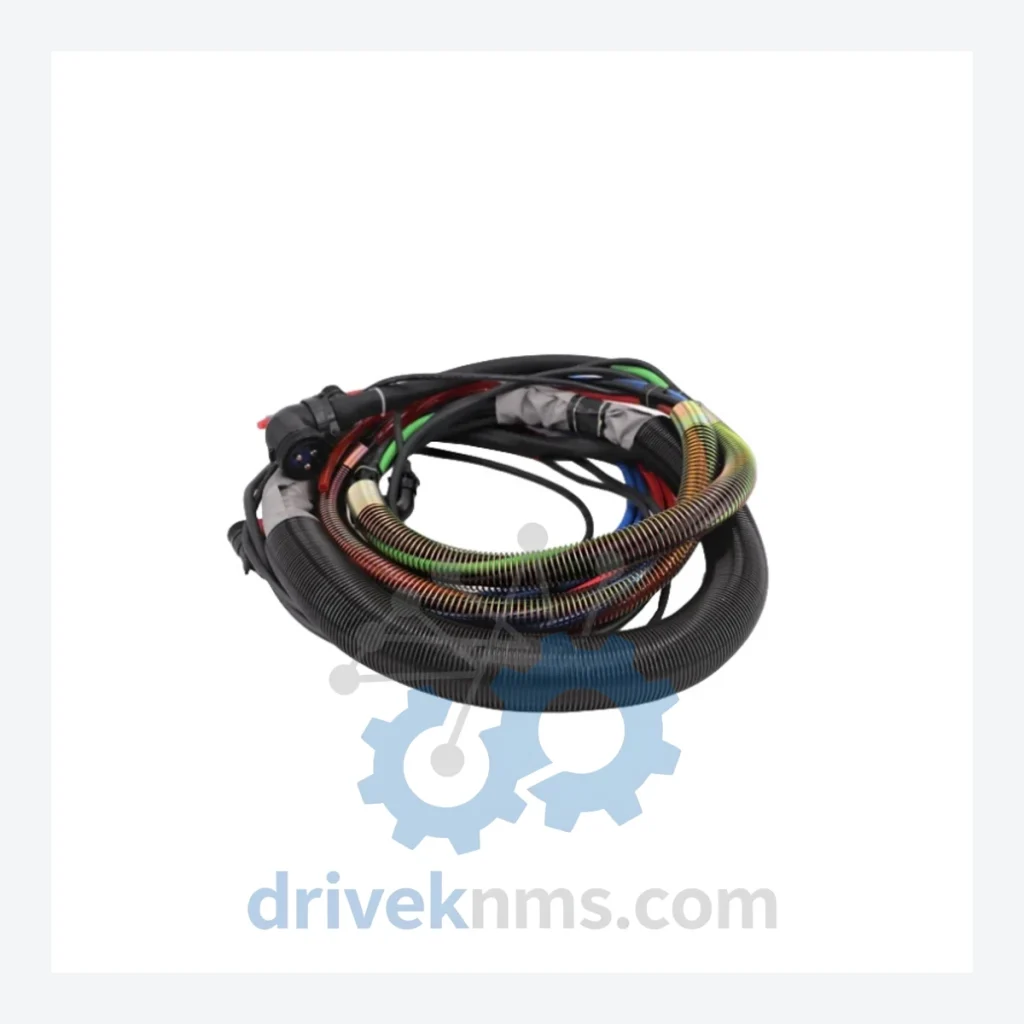

Yaskawa JANCD-YIO22-E Servo I/O Harness – Obsolete Sigma Series Spare Part

When a servo I/O harness fails in a Yaskawa Sigma-series drive system, the consequences extend far beyond a single cable. The JANCD-YIO22-E is a dedicated interconnect harness linking the JANCD-YBK21-3E backplane to the MPL300 servo amplifier module (HW0174949-A). In a production environment running legacy Sigma-II or Sigma-III architecture, this harness carries encoder feedback, I/O command signals, and interlock logic simultaneously. Its failure does not degrade performance gradually — it stops the axis entirely.

Replacing this harness with a modern substitute is not a plug-and-swap operation. The connector pinout, signal timing, and cable shielding specification are proprietary to Yaskawa's Sigma-series backplane design. Sourcing a compatible replacement from the open market without the correct part number risks mis-wiring encoder lines, which can result in runaway servo faults, damaged amplifier output stages, or — in worst cases — mechanical collision events. The engineering cost of a forced system migration to a current-generation Sigma-7 or equivalent platform routinely exceeds USD $200,000–$800,000 per axis cluster when factoring in PLC reprogramming, mechanical re-commissioning, and production downtime.

DriveKNMS holds verified physical stock of the JANCD-YIO22-E. This is not a broker listing. Securing this part today is the lowest-cost path to restoring your servo axis without touching your control architecture.

Technical Specifications

Solving the Discontinued Hardware Crisis

Yaskawa's Sigma-II and Sigma-III servo platforms were workhorses of precision motion control throughout the 1990s and 2000s. Thousands of these systems remain embedded in automotive stamping lines, semiconductor handling equipment, packaging machinery, and CNC machining centers worldwide. Yaskawa has since migrated its product roadmap to the Sigma-7 series, and OEM production of Sigma-II/III-specific harnesses and interconnect assemblies — including the JANCD-YIO22-E — has ceased.

The JANCD-YIO22-E is not a generic cable. It is a precision-routed, shielded harness assembly with defined impedance characteristics matched to the JANCD-YBK21-3E backplane's differential signal architecture. Substituting an unverified cable introduces ground loop risk and signal integrity degradation that may not manifest immediately but will accelerate encoder read errors and amplifier fault trips over time.

For plant managers operating Sigma-II/III-based lines, the strategic calculus is straightforward: a verified spare harness at a fraction of a percent of system replacement cost buys 3–7 additional years of reliable operation. That window is sufficient to plan a controlled, budgeted migration on your schedule — not an emergency forced by a single cable failure at 2 AM on a production shift.

How to extend your Yaskawa Sigma-series system life by 5–10 years:

• Maintain a minimum of two JANCD-YIO22-E harnesses per servo cluster as cold spares. Harness degradation is the leading cause of intermittent encoder fault codes (A.810, A.820) in aged Sigma-II systems.
• Pair harness replacement with a scheduled inspection of the JANCD-YBK21-3E backplane connector pins. Oxidized contacts on the backplane side will destroy a new harness within months.
• Document firmware revision levels on all SGDH/SGDS amplifiers in the cluster before any harness swap. Firmware mismatches between amplifier and controller can cause initialization failures that are misdiagnosed as harness faults.
• Store spare harnesses in anti-static packaging at controlled humidity (below 60% RH). Connector contact corrosion is the primary failure mode for NOS harnesses stored improperly.
• Establish a 3-year rolling spare parts budget that includes harnesses, encoder cables, and backplane modules. This is consistently the lowest-cost maintenance strategy compared to reactive emergency sourcing.

Condition & Reliability Assurance

Every JANCD-YIO22-E unit shipped by DriveKNMS passes a structured 5-step inspection protocol before release:

1. Visual & Mechanical Inspection: Full harness length examined for jacket cracking, kinking, and connector housing integrity. Strain relief boots checked for brittleness — a common failure point in aged assemblies.
2. Pin Continuity & Isolation Test: Each conductor verified for continuity end-to-end. Cross-conductor isolation resistance measured to confirm no internal short circuits from insulation breakdown.
3. Connector Pin Condition: All mating pins inspected under magnification for corrosion, deformation, or gold plating wear. Corroded pins are not polished and re-used — units with pin corrosion are rejected.
4. Shield Integrity Check: Braided shield continuity verified. Compromised shielding is a direct cause of encoder noise faults in Sigma-series systems and is a non-negotiable rejection criterion.
5. Reference Verification: HW0174949-A harness reference label and Yaskawa part marking verified against known-good reference units to confirm authenticity and correct revision.

Key Features for System Maintenance

• Drop-in replacement: The JANCD-YIO22-E installs directly into the JANCD-YBK21-3E backplane and MPL300 module without modification. No re-pinning, no adapter, no engineering change order required.
• No reprogramming required: Harness replacement does not alter servo parameter sets, encoder resolution settings, or PLC I/O mapping. The axis returns to service with existing configuration intact.
• Avoids engineering reconstruction costs: A forced migration from Sigma-II/III to a current-generation platform requires servo parameter re-tuning, mechanical coupling verification, and PLC I/O remapping — a process that typically consumes 40–120 engineering hours per axis. A verified spare harness eliminates this entirely.
• Supports multi-axis installations: Suitable for use across all JANCD-YBK21-3E backplane slots in multi-axis Sigma-series configurations.

FAQ

Q: What warranty applies to discontinued parts?
A: DriveKNMS provides a 90-day functional warranty on all refurbished units and a 30-day warranty on New Old Stock units. Warranty covers verified electrical failure under normal operating conditions. Physical damage caused by installation error is excluded.

Q: How do I confirm the unit is genuine Yaskawa and not a counterfeit?
A: All units are verified against Yaskawa OEM part markings and the HW0174949-A harness reference. We do not source from unverified secondary markets. Upon request, pre-shipment photos of the part label and connector condition are provided before payment.

Q: Should I buy more than one unit?
A: For any production line with more than two Sigma-series axes, holding a minimum of two spare harnesses is the standard recommendation. Single-point-of-failure exposure on a discontinued harness in a multi-axis system is an unacceptable operational risk. Stock is finite and will not be replenished from OEM production.

Q: Can this harness be used with Sigma-7 systems?
A: No. The JANCD-YIO22-E is specific to the Sigma-II/III backplane architecture. It is not compatible with Sigma-7 SERVOPACK hardware.
