Yaskawa JEBC Series Control Boards

Technical Dossier

Product Details And Specifications

Yaskawa JEBC Series: Comprehensive Control Board Range and Technical Overview

The Yaskawa JEBC series comprises dedicated control boards engineered for Yaskawa medium-voltage and industrial drive systems, including the G7, F7, and E7 drive families. These boards are deployed across global heavy industry sectors — petrochemical refineries, nuclear auxiliary systems, offshore platforms, pulp and paper mills, and steel rolling lines — where drive uptime is a direct operational cost variable. The JEBC board series handles gate drive signal processing, feedback interface, and protection logic within the drive's control architecture. Their long service life in installed base equipment makes them a critical spare parts category for maintenance engineers managing aging drive fleets.

The Evolution of JEBC Architecture

The JEBC board lineage traces to Yaskawa's drive control platform standardization in the late 1990s and early 2000s, when the company unified gate drive and feedback logic onto dedicated PCB assemblies to improve serviceability and reduce field repair time. Early JEBC variants were designed for specific drive frame sizes and voltage classes, with board-level firmware embedded in masked ROM or OTP devices. As the G7 and F7 platforms matured through the 2000s, JEBC revisions introduced improved IGBT gate drive isolation, enhanced fault detection circuits, and compatibility with Yaskawa's DriveWizard diagnostic interface.

By the 2010s, the JEBC series entered a maintenance-phase lifecycle as Yaskawa transitioned new installations toward the A1000 and GA700 platforms. However, the installed base of G7, F7, and E7 drives in heavy industry remained substantial, sustaining demand for JEBC boards as long-term spare parts. Compatibility between JEBC sub-variants is revision-specific; substitution requires verification of the drive model, frame size, and firmware revision to avoid gate timing mismatches or protection threshold errors.

JEBC Full Catalog & Functionalities (SKU List)

The following SKUs represent confirmed JEBC series control boards across Yaskawa G7, F7, and E7 drive platforms, organized by functional role:

Gate Drive & Main Control Boards

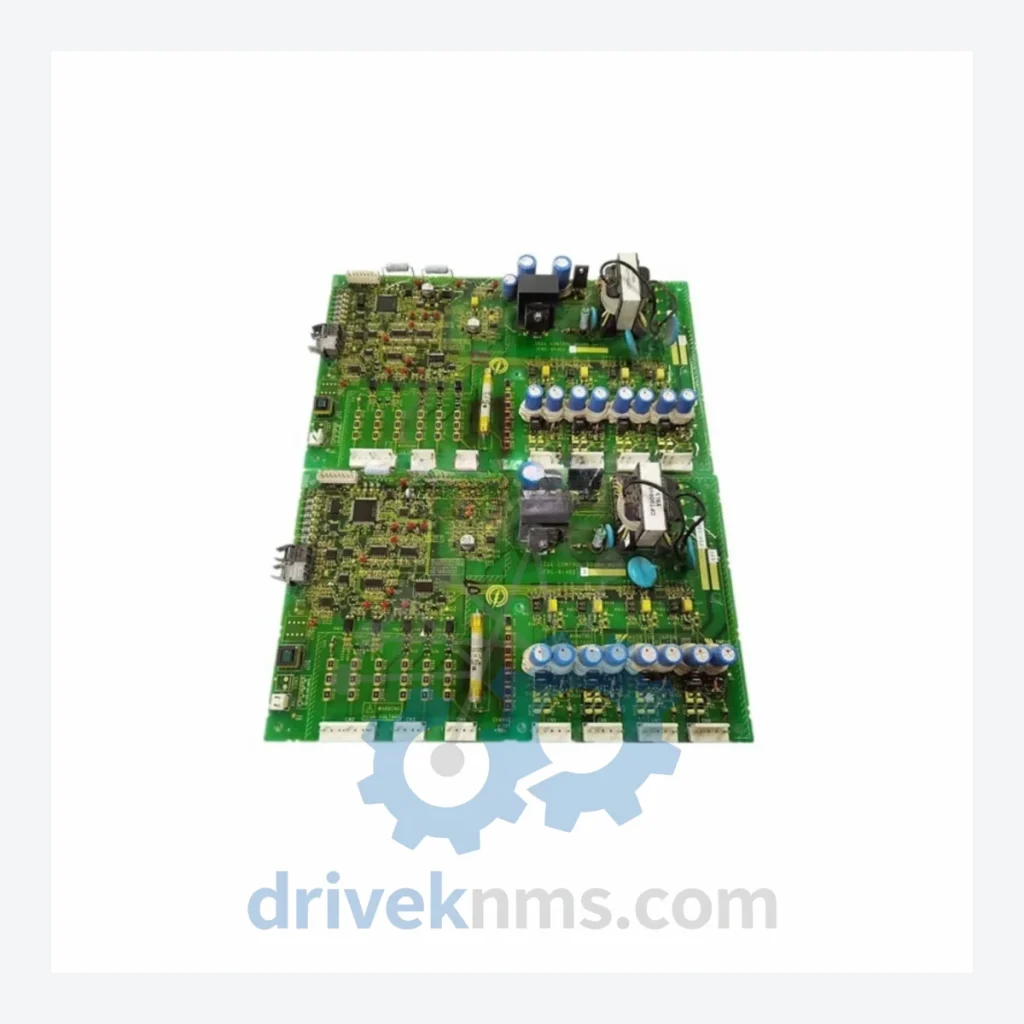

JEBC-61402-3: Main control board for Yaskawa G7 medium-voltage drive, gate signal processing and protection logic.
JEBC-61402-1: Earlier revision of the G7 main control board; limited firmware compatibility with later drive builds.
JEBC-61402-2: Intermediate revision; improved IGBT gate isolation over Rev.1, precursor to Rev.3.
JEBC-61401-3: Control board variant for alternate G7 frame configuration; different connector layout.
JEBC-61401-1: Early-production G7 control board; OTP firmware, no field reprogramming support.
JEBC-60760-1: F7 series main control board; handles speed reference processing and fault relay output.
JEBC-60760-2: Revised F7 control board with updated analog input conditioning circuitry.
JEBC-60761-1: F7 variant for high-capacity frame sizes; reinforced gate drive output stage.
JEBC-60762-1: F7 control board for regenerative drive configurations; includes braking logic interface.
JEBC-60500-1: E7 series control board; HVAC-optimized drive control with BACnet-ready interface support.
JEBC-60500-2: Revised E7 board with improved EMC filtering on analog reference inputs.
JEBC-60501-1: E7 variant for larger frame sizes; extended I/O connector block.
JEBC-61100-1: G7 auxiliary control board; manages pre-charge circuit sequencing and DC bus monitoring.
JEBC-61100-2: Updated auxiliary board with enhanced DC bus overvoltage detection threshold.
JEBC-61200-1: G7 interface board for external fault input expansion and relay output mapping.
JEBC-61300-1: G7 power supply interface board; regulates control power distribution to gate drive stages.
JEBC-60900-1: F7 gate driver sub-board for upper IGBT bank; pairs with main control board.

Sourcing Hard-to-Find & Obsolete JEBC Series Parts

The JEBC series is classified as a mature/end-of-life product line by Yaskawa. OEM new stock availability through standard distribution channels is limited or exhausted for most SKUs. DriveKNMS maintains a dedicated inventory program for JEBC boards sourced through authorized surplus channels, decommissioned equipment recovery, and verified third-party stock. All units are individually catalogued by part number and revision level.

Quality Control for the JEBC Range

JEBC boards present specific test challenges due to their integration of high-voltage gate drive isolation circuits, multi-layer PCB construction, and mixed analog/digital signal paths. DriveKNMS applies the following inspection and test protocol to all JEBC units prior to dispatch:

Visual inspection covers solder joint integrity on IGBT gate drive output transistors, electrolytic capacitor condition (ESR measurement), and PCB trace continuity in high-current paths. Functional testing is performed using drive-specific test fixtures that simulate the backplane power supply and control signal environment of the target drive frame. Gate output waveforms are verified against Yaskawa reference specifications for rise time, dead-time, and isolation voltage. Fault detection circuits are exercised by injecting out-of-range signals on overcurrent, overvoltage, and temperature inputs. Each board is issued a test record documenting measured parameters and pass/fail status before shipment.
