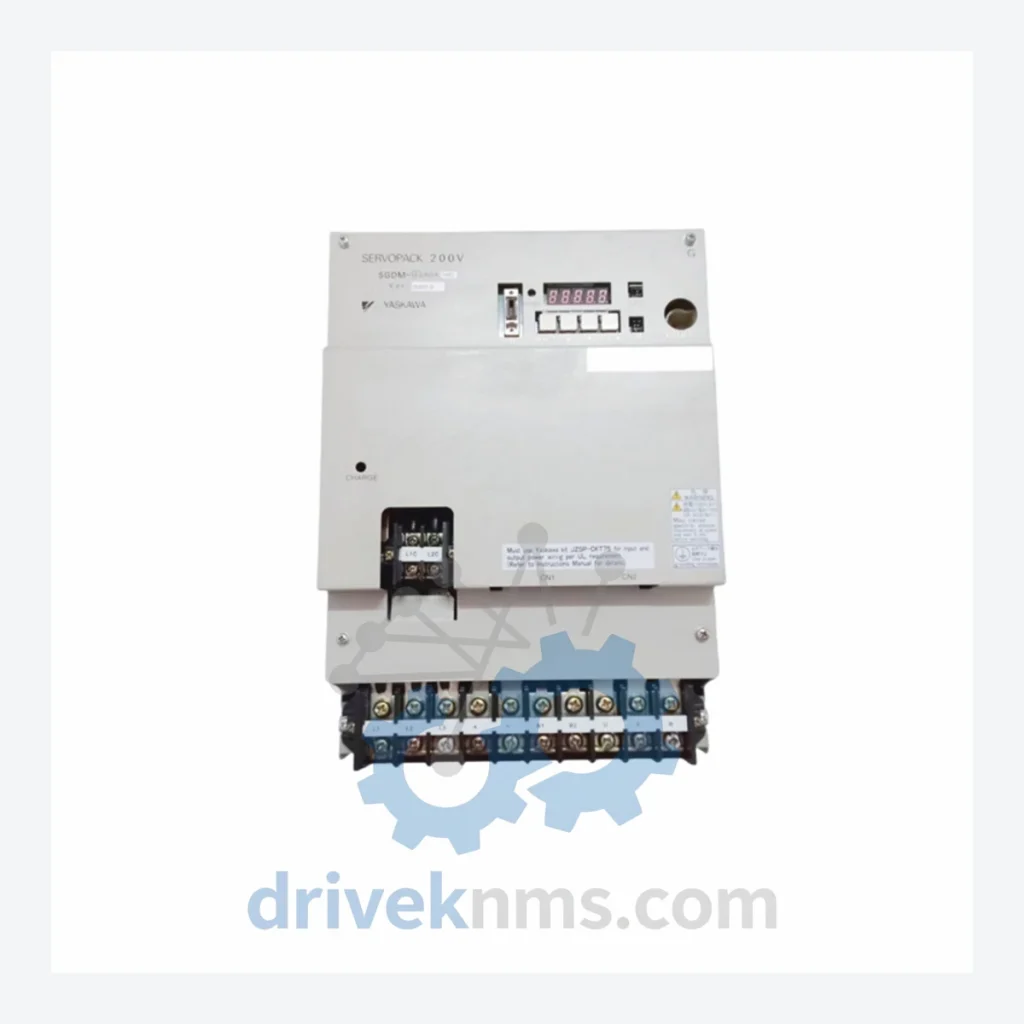

Yaskawa SGDM-60ADA Servo Motor – Obsolete Sigma-I Series Spare Part

When a SGDM-60ADA servo motor fails on your production line, the clock starts immediately. This unit belongs to Yaskawa's Sigma-I series — a platform that has been out of production for years and is no longer supported through standard distribution channels. The cost of a forced migration away from a Sigma-I-based motion control system is not a maintenance budget item. Engineering re-scoping, new servo amplifier procurement, PLC parameter reconfiguration, mechanical re-coupling, and production downtime during commissioning routinely push total replacement costs into the hundreds of thousands of dollars — and that figure does not account for lost output or contractual penalties. A single verified spare part, sourced now, eliminates that exposure entirely.

DriveKNMS maintains physical stock of the SGDM-60ADA. This is not a brokered listing. Securing one unit today is a direct hedge against a production stoppage that no expedite fee can resolve once the failure occurs.

Technical Specifications

Note: Electrical parameters such as rated output, voltage, and encoder resolution are not published here to prevent specification errors. Please contact us with your application requirements for verified datasheet confirmation.

Solving the Discontinued Hardware Crisis

The Sigma-I SGDM series was designed for deterministic, high-cycle servo positioning in applications where motion repeatability is critical — semiconductor handling, precision packaging, and multi-axis CNC routing among them. These systems were engineered to run for decades, and many have. The problem is not the machine; the problem is that the supply chain for its components has collapsed.

Yaskawa's current Sigma-V and Sigma-7 platforms are not backward-compatible with Sigma-I wiring harnesses, encoder protocols, or amplifier communication interfaces. Replacing a failed SGDM-60ADA with a current-generation motor is not a swap — it is a re-engineering project. For plant managers operating under capital expenditure constraints, that distinction matters enormously.

The practical strategy adopted by maintenance engineers who have navigated this before is straightforward: identify the two or three servo axes most critical to throughput, source verified spare motors for each, and store them in controlled conditions. The cost of three spare SGDM-60ADA units is a fraction of one day of unplanned downtime on a high-output line. This is asset protection, not parts hoarding.

Facilities running Yaskawa MP900-series controllers or legacy SGDA amplifier cabinets should treat SGDM-series motor availability as a finite resource. The secondary market window for verified units narrows every year as working machines are decommissioned and cannibalised for parts. Acting during a planned maintenance window — not during a breakdown — is the only way to control both cost and timeline.

How to extend your Sigma-I system's service life by 5 to 10 years:

• Conduct a full servo axis audit. Identify which axes are single points of failure for your highest-value production processes.
• Source and store at least one verified spare motor per critical axis. Rotate spares into service on a scheduled basis to prevent storage degradation.
• Maintain amplifier firmware documentation. SGDA amplifiers have known firmware version dependencies; mismatched firmware after a swap causes tuning failures that are difficult to diagnose without original documentation.
• Inspect encoder cables and connectors annually. Sigma-I encoder connectors are no longer manufactured; damaged connectors on a working motor are a secondary failure risk that is often overlooked.
• Establish a relationship with a specialist supplier — not a general distributor — who can verify part authenticity and condition before shipment.

Condition & Reliability Assurance

Sourcing a discontinued servo motor from the secondary market carries real risk. DriveKNMS applies a structured 5-step inspection protocol to every SGDM-series unit before it is offered for sale.

1. Electrolytic Capacitor Assessment: Internal capacitors in servo motors and associated drive components degrade over time regardless of usage. Each unit is assessed for capacitor condition. Units showing measurable ESR drift are flagged and not offered as ready-to-install stock.
2. Encoder Integrity Verification: The encoder is tested for signal integrity and resolution consistency. Sigma-I encoders are incremental types; any signal dropout or count error under rotation disqualifies the unit.
3. Pin and Connector Corrosion Inspection: All motor connectors — power, encoder, and brake where applicable — are inspected under magnification for oxidation, pin deformation, and contact resistance. Corroded pins are the leading cause of intermittent faults that are misdiagnosed as amplifier failures.
4. Winding Resistance and Insulation Check: Phase-to-phase winding resistance is measured and compared against reference values. Insulation resistance to frame is tested to confirm winding integrity.
5. Mechanical Inspection: Shaft runout, bearing noise, and brake engagement (where fitted) are checked. Units with bearing wear or shaft damage are not offered for sale.

Key Features for System Maintenance

• Drop-in replacement: The SGDM-60ADA installs directly into existing Sigma-I mechanical and electrical interfaces. No mechanical re-coupling, no wiring modification, no amplifier parameter changes required in standard configurations.
• No reprogramming required: Sigma-I servo systems store motion parameters in the amplifier, not the motor. Swapping the motor does not require re-tuning the servo loop in most standard applications, reducing commissioning time to minutes rather than days.
• Avoids engineering re-scoping costs: A verified spare eliminates the need to engage a systems integrator for a platform migration. The cost differential between a spare motor and a full-axis upgrade is typically measured in multiples of ten.
• Preserves validated process parameters: Production lines with certified or validated motion profiles — pharmaceutical, food processing, electronics assembly — cannot simply adopt a new servo platform without revalidation. A like-for-like replacement protects existing process certifications.

FAQ

What warranty applies to a discontinued part like the SGDM-60ADA?
DriveKNMS provides a 90-day warranty covering functional performance against the specifications verified during our inspection process. This covers electrical and mechanical function; it does not cover damage resulting from incorrect installation or incompatible amplifier configuration.

How do I know the unit is genuine and not a counterfeit or heavily worn part?
Every unit sold by DriveKNMS is inspected against the 5-step protocol described above. We provide inspection records on request. We do not sell units that fail any inspection criterion, and we do not relabel or remanufacture units beyond what is disclosed. If you require third-party inspection or a specific condition grade, contact us before purchase.

Should I buy more than one unit?
For any production line where this motor is a single point of failure, yes. The secondary market supply of SGDM-60ADA units is not replenished — every unit sold reduces the available pool. If your line runs multiple axes using this motor, the risk of a second failure during the period it takes to source a replacement after the first failure is not negligible. A minimum of one cold spare per critical axis is the standard recommendation for legacy servo systems with no upgrade path in the near term.

Can you source other Sigma-I series components?
Yes. DriveKNMS specialises in legacy Yaskawa components including SGDA amplifiers, JUSP series interface boards, and associated Sigma-I accessories. Contact us with your full BOM if you are conducting a comprehensive spare parts audit.
