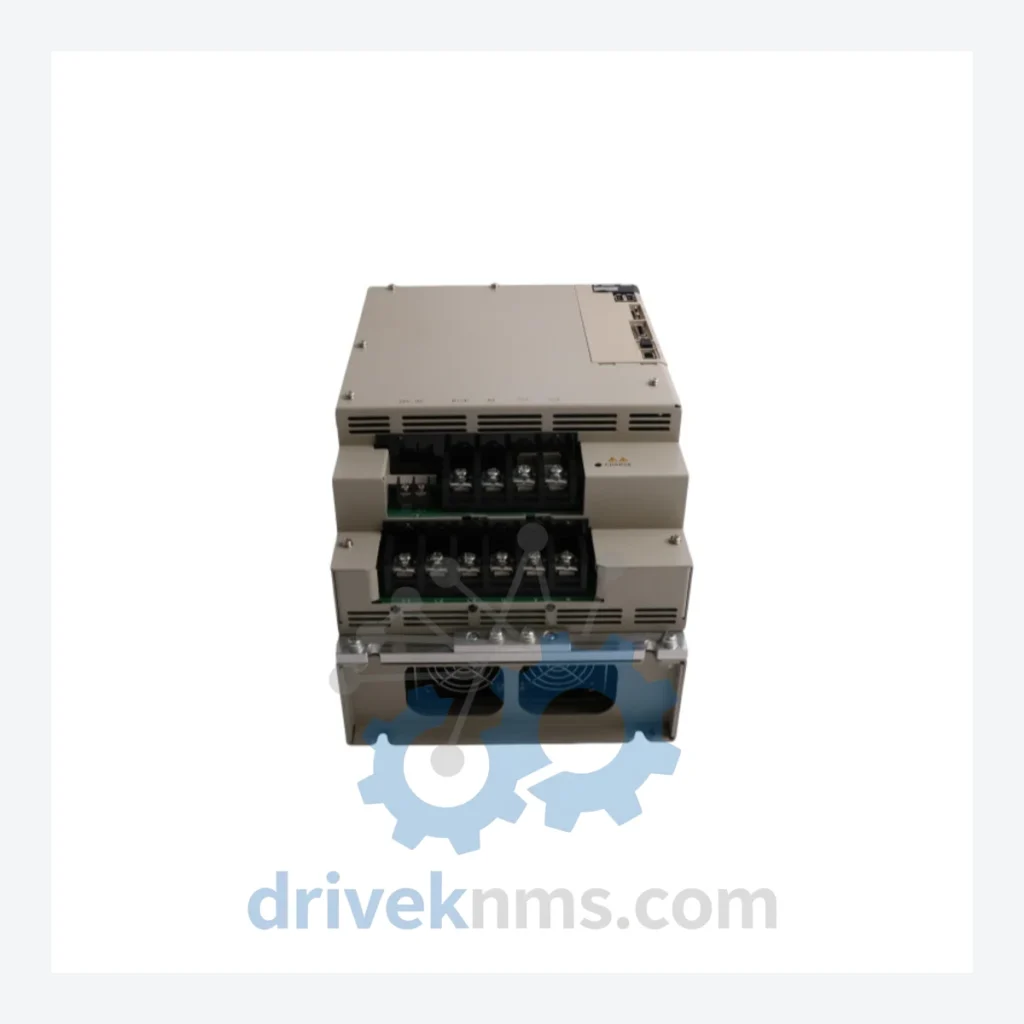

Yaskawa SGDV-260D11A Servo Drive – Obsolete Sigma-5 Spare Part

Technical Dossier

Product Details And Specifications

Yaskawa SGDV-260D11A Servo Drive – Obsolete Sigma-5 Spare Part

When a Yaskawa SGDV-260D11A fails on the production floor, the immediate question is not whether to repair it — it is whether a replacement unit can be sourced before the line goes cold. This model belongs to the Sigma-5 (SGDV) series, a servo drive platform that powered precision motion control across semiconductor fabrication, automotive assembly, packaging, and food processing lines worldwide. As the Sigma-5 series has transitioned into end-of-life status in Yaskawa's active product catalog, field-available stock has become progressively scarcer.

The cost calculus is straightforward: a single SGDV-260D11A unit, when sourced in time, preserves a motion axis that may be embedded in a machine worth USD 500,000 to several million dollars. The alternative — a forced migration to Sigma-7 or a third-party servo platform — requires re-engineering the servo parameters, replacing the motor feedback cable harness, rewriting motion profiles, and commissioning the axis from zero. Engineering time alone routinely exceeds 200 hours. DriveKNMS maintains verified stock of the SGDV-260D11A specifically to eliminate that scenario.

Technical Specifications

Note: Parameters are provided for reference based on published Yaskawa Sigma-5 series documentation. Verify against your specific machine nameplate before ordering.

Solving the Discontinued Hardware Crisis

The Sigma-5 SGDV platform was introduced in the mid-2000s and achieved widespread adoption across Asia, Europe, and North America. Its MECHATROLINK-II communication protocol and high-resolution serial encoder interface made it the default choice for machine builders integrating Yaskawa motion into CNC machining centers, pick-and-place systems, and web tension control lines.

The SGDV-260D11A specifically addresses the 400 V, 26 A output class — a power range common in mid-to-large servo axes driving ball screws, rotary tables, and conveyor indexing mechanisms. Because the Sigma-5 encoder protocol is not backward-compatible with Sigma-7 without a cable adapter and full parameter migration, a direct swap is not possible without engineering intervention. This makes the SGDV-260D11A irreplaceable within its installed base unless a full axis retrofit is budgeted.

Factories operating Sigma-5-based machines face a defined lifecycle pressure: Yaskawa's repair service for out-of-warranty Sigma-5 units has a finite horizon, and third-party repair shops capable of servicing IGBT modules and encoder interface boards for this series are declining in number. The practical strategy for plant asset managers is to maintain a minimum buffer stock of one to two SGDV-260D11A units per critical axis, held in climate-controlled storage, to cover the remaining operational life of the machine — typically five to ten years from the point of last production.

DriveKNMS sources SGDV-260D11A units through decommissioned equipment recovery, authorized distributor closeouts, and factory surplus channels. Each unit is individually logged with its acquisition source and inspection history before being offered for sale.

Condition & Reliability Assurance

Obsolete servo drives present specific failure modes that differ from active-production units. Our QA process for the SGDV-260D11A addresses the five most common degradation vectors in this series:

1. Electrolytic Capacitor Assessment: DC bus capacitors and control board electrolytics are measured for capacitance and ESR. Units showing more than 20% capacitance loss or elevated ESR are flagged for capacitor replacement before sale.
2. IGBT Module Integrity Check: Gate drive signals and switching waveforms are verified under load simulation. Thermal paste condition on the heatsink interface is inspected and renewed where necessary.
3. Firmware Version Verification: The installed firmware version is documented and cross-referenced against Yaskawa's Sigma-5 compatibility matrix to confirm it is appropriate for MECHATROLINK-II or analog-pulse operation as required.
4. Encoder Interface Pin Inspection: The CN2 encoder connector and internal signal conditioning circuitry are inspected for corrosion, pin deformation, and solder joint integrity — a known failure point in units stored in humid environments.
5. Functional Power-On Test: Each unit is powered at rated voltage, servo-ready signal is confirmed, and basic parameter read/write is verified via SigmaWin+ or equivalent interface before shipment.

Key Features for System Maintenance

• Drop-in Replacement: The SGDV-260D11A is a direct physical and electrical replacement for any existing SGDV-260D11A installation. No mechanical modification to the cabinet is required.
• No Reprogramming Required: Servo parameters stored in the existing drive can be backed up via SigmaWin+ and restored to the replacement unit in under 30 minutes, eliminating axis re-tuning.
• Avoids Engineering Retrofit Costs: Substituting a Sigma-7 or third-party drive requires new cabling, parameter translation, and motion profile validation — costs that routinely reach USD 15,000–50,000 per axis when engineering, downtime, and commissioning are included. A like-for-like SGDV-260D11A replacement eliminates all of that.
• Long-Term Sparing Strategy: For facilities with multiple Sigma-5 axes, DriveKNMS can provide a multi-unit quotation to support a 5–10 year maintenance buffer. Contact us for volume pricing.

FAQ

Q: What warranty applies to an obsolete SGDV-260D11A unit?
A: DriveKNMS provides a 90-day functional warranty on all tested units. Extended warranty options are available on request. Warranty covers failure under normal operating conditions and excludes physical damage or incorrect installation.

Q: How do I confirm the unit is genuine and not counterfeit?
A: All units supplied by DriveKNMS carry original Yaskawa serial numbers traceable to manufacturing records where available. We provide full acquisition documentation and do not source from unverified secondary markets.

Q: Is the unit new or refurbished?
A: Stock condition varies. We clearly state whether a unit is new-in-box (NIB), new-surplus (unused but without original packaging), or professionally refurbished. Refurbished units have passed the full 5-step QA process described above.

Q: How many units should we stock as long-term spares?
A: For a single critical axis, a minimum of one cold spare is recommended. For production lines with three or more Sigma-5 axes, a ratio of one spare per three axes is a standard industrial practice. Contact us to discuss a structured sparing program.
