Yaskawa NX100 Series: Comprehensive Module Range and Technical Overview

The Yaskawa NX100 is a robot controller platform deployed across heavy industrial sectors including petrochemical processing, nuclear facility maintenance, automotive body welding, and offshore refinery operations. Introduced as the successor to the XRC and MRC controller generations, the NX100 established a standardized backplane architecture capable of managing multi-axis coordinated motion for Yaskawa Motoman robot arms (UP, ES, HP, MA, and SK series). Its modular card-cage design allows field-level replacement of individual functional boards without full controller swap, a critical requirement for facilities operating under continuous production mandates. The NX100 remains one of the most widely installed robot controller platforms globally, with active installations spanning 1998–2015 production windows. As of 2026, the NX100 has entered its end-of-life phase; Yaskawa has transitioned current production to the DX100, DX200, and YRC1000 platforms. However, the installed base remains substantial, and demand for verified spare boards continues across MRO (Maintenance, Repair, and Overhaul) channels.

The Evolution of NX100 Architecture

The NX100 controller architecture is built around a VME-compatible backplane with proprietary Yaskawa bus extensions. The CPU board (JANCD-NCP01 / JANCD-NCP01-1) serves as the central processing unit, executing motion interpolation, I/O polling, and inter-board communication via the MECHATROLINK-II serial bus. Early NX100 revisions used the SRDA-SDA71A01A board family for servo drive amplifier interfacing; later revisions introduced the SRDA-SDA71A01A-E suffix, indicating an enhanced EMC-compliant variant with revised gate driver circuitry.

The JZRCR-NPP01B-1 is the operator panel interface board, providing the physical connection layer between the Programming Pendant (JZRCR-YPP01-1 / DX100 pendant) and the controller backplane. Compatibility between NX100 and DX100 pendant hardware is partial and version-dependent; firmware mismatches are a documented failure mode during cross-generation maintenance.

The NX100 backplane supports up to 8 functional slots. Board communication relies on a parallel data bus with dedicated interrupt lines per slot. This architecture differs fundamentally from the DX100's serial-only inter-board topology, making direct board substitution between generations impossible without firmware and hardware adaptation.

Key architectural milestones: XRC (pre-2000) → NX100 (2001–2010, primary production) → DX100 (2008–2016) → DX200 (2013–present) → YRC1000 (2017–present). NX100 boards are not forward-compatible with DX100 or later platforms.

NX100 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the Yaskawa NX100 controller ecosystem, classified by functional category:

CPU & Main Control Boards

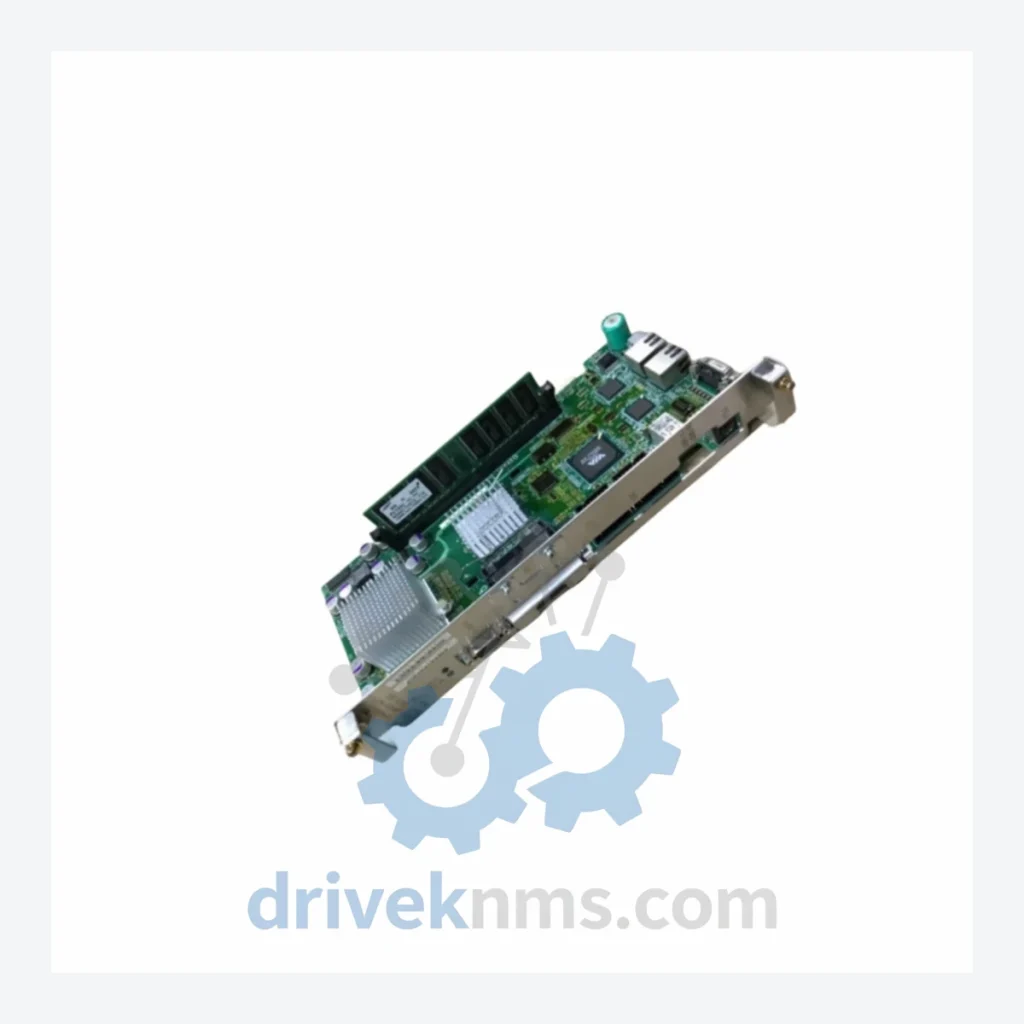

JANCD-NCP01: NX100 main CPU board; motion control and system coordination.
JANCD-NCP01-1: Revised CPU board; enhanced memory addressing and bus timing.
JANCD-NCP01B: Later CPU variant with updated firmware ROM socket layout.
JZRCR-NPP01B-1: Operator panel interface board; pendant and HMI bus connection.

Servo Amplifier Interface Boards

SRDA-SDA71A01A-E: Servo drive amplifier board; axis 1–3 gate drive and feedback interface.
SRDA-SDA71A01A: Base variant of the servo amplifier board; pre-EMC revision.
SRDA-COA30A: Servo control option board; extended axis configuration support.
SRDA-EAXA01A: Servo amplifier axis expansion board for 7-axis robot configurations.

I/O Interface Boards

JANCD-IO01: Standard I/O board; 32 DI / 32 DO discrete signal interface.
JANCD-IO02: Extended I/O board; 64 DI / 64 DO with terminal block interface.
JANCD-IO03: High-density I/O board; 128-point mixed signal configuration.
JANCD-AIO01: Analog I/O board; 4-channel AI / 2-channel AO, ±10V range.

Communication & Network Adapter Boards

JANCD-YCP01: DeviceNet communication board; master/slave configurable.
JANCD-YCP02: PROFIBUS-DP adapter board; 12 Mbps max transfer rate.
JANCD-YCP03: CC-Link communication board; remote I/O station support.
JANCD-YEW01: Ethernet communication board; FTP and socket-level data transfer.

Power Supply Boards

JZRCR-NPP01: Controller power supply board; 24VDC regulated output for backplane.
SRDA-SDA71A02A: Servo power distribution board; DC bus interface for drive section.

Sourcing Hard-to-Find & Obsolete NX100 Parts

The NX100 platform reached official end-of-production status. Yaskawa's standard spare parts support window has closed for the majority of NX100 board-level components. Facilities operating NX100-based cells face three primary sourcing constraints: (1) OEM channels no longer stock board-level spares; (2) authorized repair centers have reduced NX100 service capacity; (3) cross-generation substitution is technically restricted by bus incompatibility.

DriveKNMS maintains a dedicated NX100 spare parts inventory sourced through verified industrial surplus, decommissioned cell buybacks, and controlled-environment storage. All boards are cataloged by part number, revision suffix, and functional test status. For obsolete variants such as JANCD-NCP01 (non-B revision) and SRDA-SDA71A01A (pre-E suffix), DriveKNMS provides direct cross-reference matching to confirm hardware revision compatibility before shipment. Lifecycle extension support includes board-level repair assessment, firmware version documentation, and multi-unit lot sourcing for facilities requiring buffer stock.

Quality Control for the NX100 Range

NX100 boards present specific test challenges due to their VME-bus parallel architecture and multi-layer impedance-controlled PCB construction. DriveKNMS applies the following test protocol to all NX100 boards prior to dispatch:

Visual Inspection: Component-level examination under 10× magnification. Inspection targets include electrolytic capacitor ESR degradation (common on JANCD-NCP01 boards after 10+ years), solder joint fatigue on BGA and PLCC packages, and corrosion on edge connector gold fingers.

Power-On Functional Test: Each board is energized in an NX100-compatible test rig. CPU boards are verified for POST completion and MECHATROLINK-II bus initialization. Servo amplifier boards are tested for gate drive signal output on all axis channels. I/O boards are verified for full point-by-point DI/DO switching.

Communication Bus Verification: For network adapter boards (DeviceNet, PROFIBUS, CC-Link), protocol-level handshake testing is performed using dedicated master simulators to confirm frame integrity and error-free data exchange.

Burn-In Cycle: Boards are subjected to a 24-hour thermal cycling burn-in at operating temperature range (0°C to 45°C) to screen for latent component failures before shipment.
