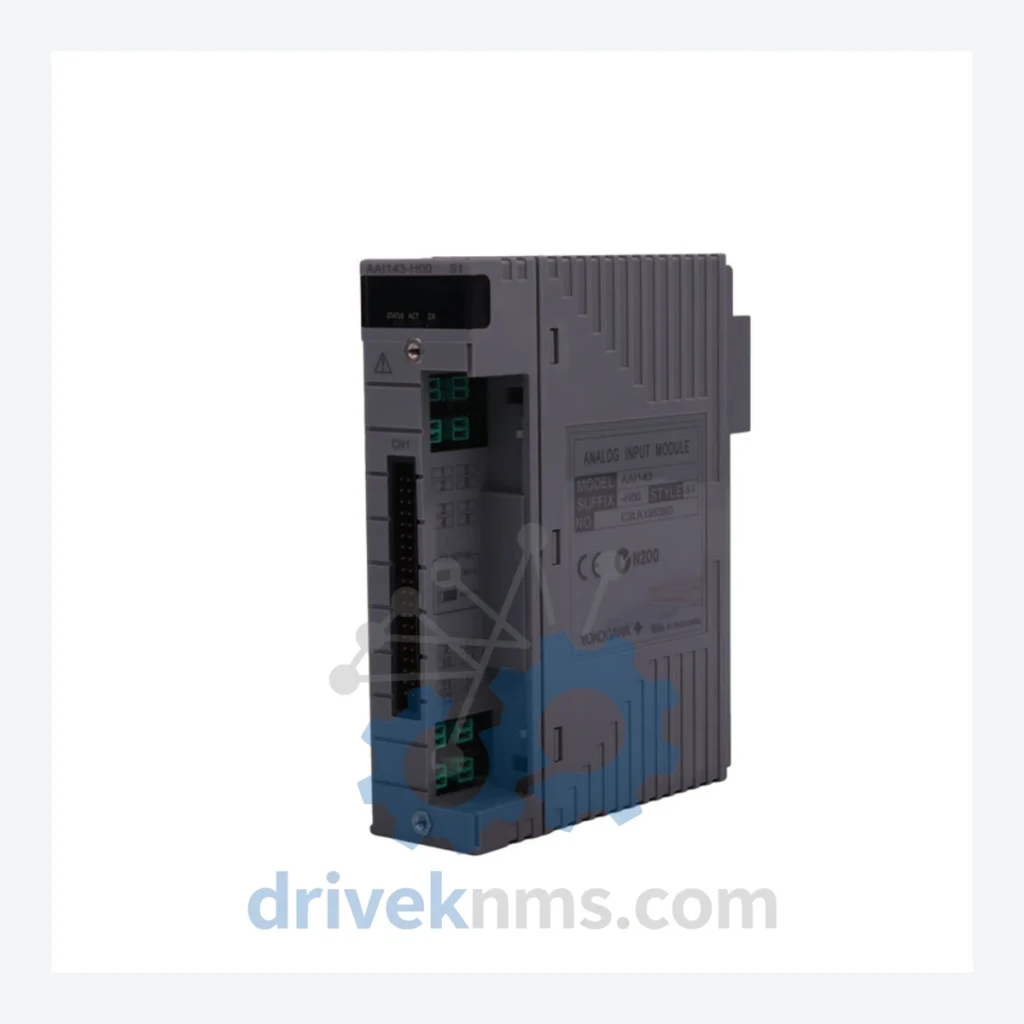

Yokogawa AAI143-H00 S1 Modules

Technical Dossier

Product Details And Specifications

Yokogawa AAI Series Technical Notes

The Yokogawa AAI/AAO series of analog I/O modules forms the field interface backbone of the CENTUM CS 3000 and CENTUM VP distributed control systems — two of the most widely deployed DCS platforms in global heavy industry. These modules are installed across petrochemical complexes, LNG terminals, nuclear power auxiliary systems, crude oil refineries, and continuous process plants where signal integrity and long-term platform stability are non-negotiable operational requirements. The AAI143-H00 S1 specifically provides 16-channel analog input capability with HART communication support, making it a standard specification item in greenfield and brownfield process automation projects across Asia-Pacific, the Middle East, and Europe.

The Evolution of AAI Series Architecture

The AAI/AAO module lineage originates from the CENTUM CS 3000 platform introduced in the late 1990s, where Yokogawa standardized a modular field I/O architecture based on the RIO (Remote I/O) bus. Early-generation modules operated under the FCS (Field Control Station) architecture with fixed channel counts and limited HART pass-through capability. With the transition to CENTUM VP (circa 2008), Yokogawa introduced enhanced variants with dual-redundancy support, expanded HART multiplexing, and improved EMC tolerance ratings for harsh industrial environments.

The AAI143-H00 S1 belongs to the mature CENTUM VP-compatible generation. The suffix structure encodes key configuration data: AAI = Analog Input, 143 = 16-channel HART-enabled variant, H00 = standard housing/connector type, S1 = revision/specification level. Backward compatibility with CS 3000 RIO bus infrastructure is maintained, enabling module-level upgrades without full system replacement — a critical factor for plants operating on 20–30 year lifecycle horizons. As CENTUM CS 3000 has entered end-of-active-support status, the AAI series has transitioned into a lifecycle maintenance phase, with procurement now driven primarily by spare parts demand rather than new project specification.

AAI/AAO Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced modules within the Yokogawa CENTUM CS 3000 / CENTUM VP analog I/O module family. Each entry reflects a distinct functional specification:

AAI143-H00 S1: 16-ch analog input, HART-enabled, CENTUM VP/CS 3000 compatible
AAI143-S00 S1: 16-ch analog input, non-HART standard variant, RIO bus interface
AAI141-H00 S1: 8-ch analog input, HART-enabled, single-slot form factor
AAI141-S00 S1: 8-ch analog input, non-HART, standard signal range 4–20 mA
AAI135-H00 S1: 16-ch analog input, high-density HART, dual-redundancy ready
AAI135-S00 S1: 16-ch analog input, non-HART, high-density channel configuration
AAO145-H00 S1: 16-ch analog output, HART-enabled, 4–20 mA output range
AAO145-S00 S1: 16-ch analog output, non-HART, standard process output module
AAO141-H00 S1: 8-ch analog output, HART-enabled, single-slot mounting
AAO141-S00 S1: 8-ch analog output, non-HART, 4–20 mA, CS 3000 / VP compatible
AAI841-H00 S1: 8-ch analog input, HART, for CENTUM VP R6 FCS architecture
AAI841-S00 S1: 8-ch analog input, non-HART, CENTUM VP R6 compatible
AAO841-H00 S1: 8-ch analog output, HART, CENTUM VP R6 field I/O station
AAI543-H00 S1: 16-ch analog input, HART, for ESB (Extended Serial Bus) I/O
AAO543-H00 S1: 16-ch analog output, HART, ESB bus, remote I/O enclosure mount
AAI143-H50 S1: 16-ch analog input, HART, intrinsically safe (Ex ia) certified variant
AAO145-H50 S1: 16-ch analog output, HART, intrinsically safe, Zone 1 rated

Sourcing Hard-to-Find & Obsolete AAI Series Parts

For the AAI143-H00 S1 and related variants, DriveKNMS provides: RFQ-reviewed sourcing status availability checks within 24 hours, cross-reference verification against plant BOM and FCS configuration files, and documented traceability records for each unit shipped. Plants operating CS 3000 systems beyond OEM support windows rely on this supply chain to avoid forced full-system migrations — a capital expenditure that can reach seven figures for large continuous process facilities.

Quality Control for the AAI Series Range

Analog input modules in the AAI series interface directly with field transmitters via 4–20 mA current loops and HART protocol overlays. Failure modes specific to this module class include: ADC drift causing calibration offset, HART modem IC degradation reducing communication reliability, backplane connector wear from repeated insertion cycles, and capacitor aging in the signal conditioning stage. DriveKNMS applies a structured test protocol to all AAI/AAO modules prior to shipment:

Each unit undergoes full-channel signal injection testing across the 4–20 mA range at 0%, 25%, 50%, 75%, and 100% of span. HART communication is verified using a calibrated HART communicator at 1200 baud. Backplane connector pins are inspected under magnification and cleaned to IPC-A-610 standards. Firmware revision is confirmed against the target FCS software version. Units are burned in under load for a minimum of 4 hours before final acceptance. All test data is logged and provided with the shipment documentation.
