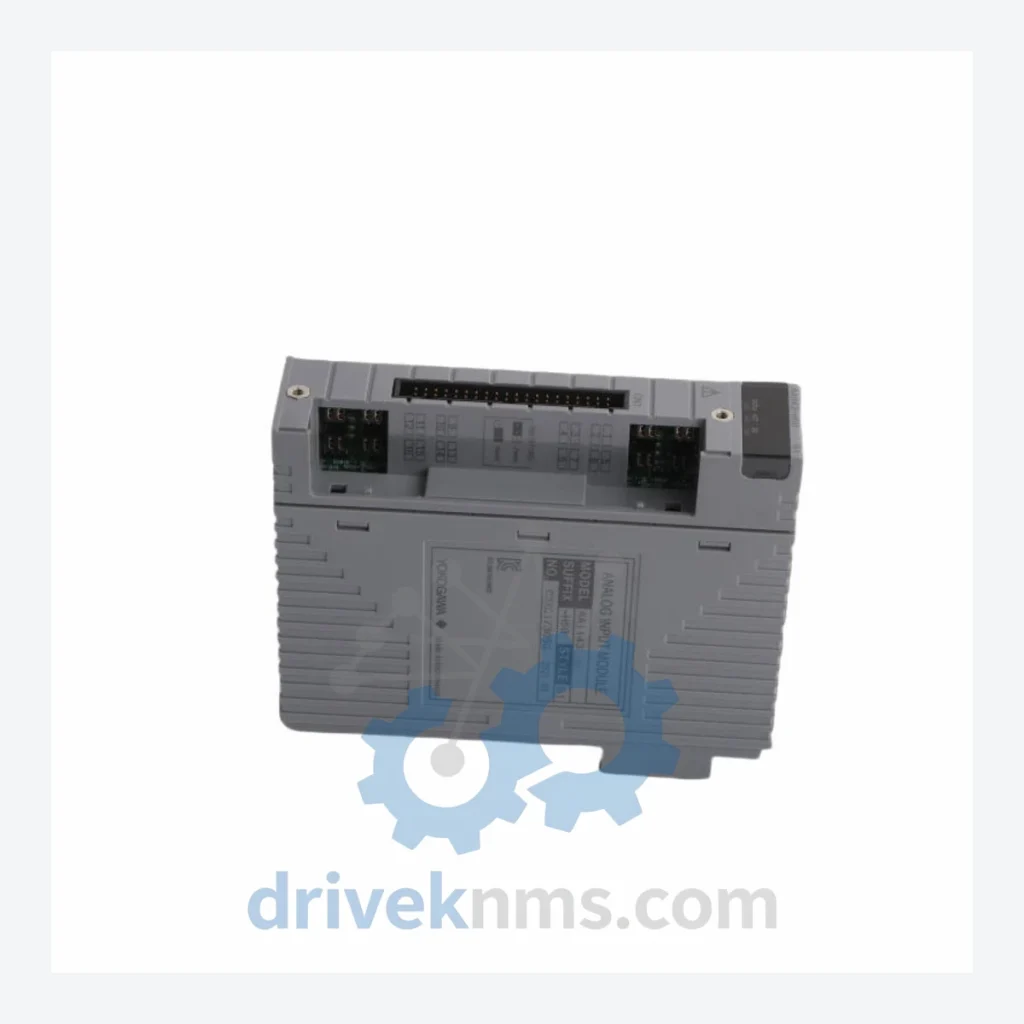

Yokogawa AAI143 Modules – AAI143-H03 Style S1 Analog Input Module

Technical Dossier

Product Details And Specifications

Yokogawa AAI143 Series Technical Notes

The Yokogawa AAI143 series is a family of analog input modules deployed within the Yokogawa CENTUM CS 3000 and CENTUM VP Distributed Control Systems (DCS). These modules occupy a critical position in global heavy industry infrastructure, with documented installations across petrochemical complexes, nuclear power generation facilities, crude oil refineries, LNG terminals, and continuous process manufacturing plants. The AAI143 series handles 4–20 mA current loop signal acquisition from field transmitters, converting analog process variables into digital data for the DCS controller. Its architecture conforms to Yokogawa's Field Control Station (FCS) backplane bus standard, making it a non-interchangeable, platform-specific component with long operational lifecycles measured in decades.

The Evolution of AAI143 Architecture

The AAI143 module was introduced as part of Yokogawa's CENTUM CS 3000 platform, which succeeded the CENTUM-XL and μXL systems in the late 1990s. The CS 3000 architecture standardized the Field Control Station (FCS) as the primary process control node, with I/O modules communicating over a proprietary high-speed backplane bus (ESB bus or ER bus depending on generation). The AAI143 was designed to interface with 16-channel, single-ended 4–20 mA analog inputs, supporting HART communication on select style variants.

As Yokogawa transitioned to CENTUM VP (introduced circa 2008), the AAI143 series was carried forward with backward compatibility maintained at the FCS level, though style revisions (Style S1, S2, S3, S4) introduced incremental changes to firmware, HART revision support, and diagnostic capability. Style S1 represents the earliest production revision; later styles added enhanced self-diagnostics and expanded HART pass-through functionality. The AAI143 series is now in the mature/end-of-active-production phase. Yokogawa continues to provide lifecycle support, but new installations are directed toward the CENTUM VP R6 platform with updated I/O modules. For existing CS 3000 and early CENTUM VP installations, the AAI143 remains the only compatible replacement module, making long-term spare parts inventory a critical operational requirement for plant maintenance teams.

AAI143 Full Catalog & Functionalities (SKU List)

The following SKUs represent the confirmed AAI143 series module variants. Each entry reflects a distinct hardware or style configuration. Functional classification follows Yokogawa's I/O module taxonomy.

Analog Input Modules (AI) — 4–20 mA, 16-Channel:

• AAI143-H03: 16-ch analog input, 4–20 mA, Style S1, non-HART, standard range, ESB bus compatible.
• AAI143-H53: 16-ch analog input, 4–20 mA, Style S1, HART Rev.5 enabled, ESB bus compatible.
• AAI143-H03S2: 16-ch analog input, 4–20 mA, Style S2, enhanced diagnostics, non-HART.
• AAI143-H53S2: 16-ch analog input, 4–20 mA, Style S2, HART Rev.5, enhanced diagnostics.
• AAI143-H03S3: 16-ch analog input, 4–20 mA, Style S3, firmware update, non-HART.
• AAI143-H53S3: 16-ch analog input, 4–20 mA, Style S3, HART Rev.5, expanded pass-through.
• AAI143-H03S4: 16-ch analog input, 4–20 mA, Style S4, latest production revision, non-HART.
• AAI143-H53S4: 16-ch analog input, 4–20 mA, Style S4, HART Rev.5, latest production revision.
• AAI143-S03: 16-ch analog input, 4–20 mA, Style S1, SIL-rated variant for safety instrumented systems.
• AAI143-S53: 16-ch analog input, 4–20 mA, Style S1, SIL-rated, HART Rev.5 enabled.
• AAI143-S03S2: 16-ch analog input, SIL-rated, Style S2, enhanced self-test diagnostics.
• AAI143-S53S2: 16-ch analog input, SIL-rated, Style S2, HART Rev.5, enhanced diagnostics.
• AAI143-S03S3: 16-ch analog input, SIL-rated, Style S3, updated safety firmware revision.
• AAI143-S53S3: 16-ch analog input, SIL-rated, Style S3, HART Rev.5, updated safety firmware.
• AAI143-S03S4: 16-ch analog input, SIL-rated, Style S4, current production SIL variant.
• AAI143-S53S4: 16-ch analog input, SIL-rated, Style S4, HART Rev.5, current production SIL variant.

Note: H-prefix variants are standard process control modules; S-prefix variants are certified for use in Safety Instrumented Systems (SIS) per IEC 61511. All variants are slot-compatible within the same FCS chassis generation but style cross-compatibility must be verified against the FCS firmware revision.

Quality Control for the AAI143 Range

The AAI143 module's internal architecture includes a dedicated analog front-end ASIC, a backplane bus interface controller, and an isolated DC/DC power stage. Quality verification for used or refurbished AAI143 units requires testing at each of these subsystem levels, not merely a power-on functional check.
