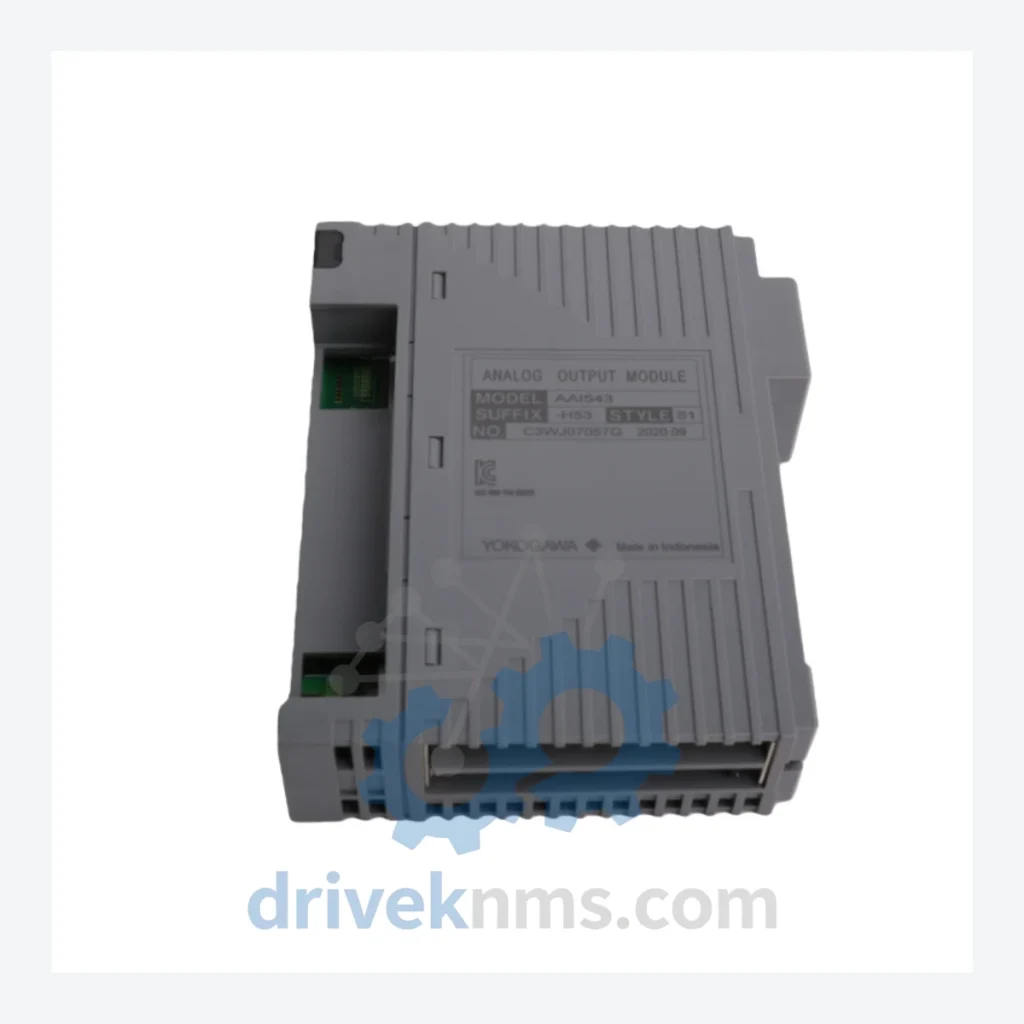

Yokogawa AAI543-H53 Analog Output Module – Obsolete CENTUM Spare Part

Technical Dossier

Product Details And Specifications

Yokogawa AAI543-H53 Analog Output Module – Obsolete CENTUM Spare Part

DriveKNMS reviews sourcing status and documentation for this model during RFQ handling before quotation.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Solving the Discontinued Hardware Crisis

The Yokogawa CENTUM CS 3000 and CENTUM VP platforms have been the backbone of process automation in petrochemical, pharmaceutical, and power generation facilities across Asia, the Middle East, and Europe for over two decades. Yokogawa has progressively moved its support focus toward the CENTUM VP R6 and the newer FAST/TOOLS ecosystem. Field replaceable units from the earlier CENTUM generations — including the AAI543-H53 — are no longer manufactured.

The AAI543-H53 specifically handles analog output functions that translate controller decisions into physical process actions — valve positions, pump speeds, heater outputs. There is no software workaround for a failed analog output card. The module must be replaced with a hardware-compatible unit. In a system where the OEM no longer supplies this part, the only alternative to a verified spare is a system redesign.

Condition & Reliability Assurance

Obsolete modules sourced from secondary markets carry real risks: electrolytic capacitor degradation, firmware version mismatches, pin corrosion from improper storage, and undisclosed prior damage. DriveKNMS applies a structured 5-step inspection protocol before any AAI543-H53 unit is offered for sale.

Step 1 – Visual and mechanical inspection: Enclosure integrity, connector pin condition, and PCB surface examination for corrosion, burn marks, or physical damage.

Step 2 – Electrolytic capacitor assessment: Capacitors are the primary failure point in aged electronics. Each unit is evaluated for bulging, leakage, and ESR deviation from specification.

Step 3 – Firmware version verification: The installed firmware version is recorded and cross-referenced against known compatible versions for CENTUM CS 3000 and CENTUM VP installations. Version mismatches are flagged before dispatch review.

Step 4 – Pin and connector integrity check: All I/O connectors and backplane interface pins are inspected for oxidation, deformation, and contact resistance.

Units that do not pass all five steps are not offered for sale. Condition grade (new surplus or tested refurbished) is disclosed clearly at the time of quotation.

Key Features for System Maintenance

The AAI543-H53 is a direct drop-in replacement for the same module position in a CENTUM CS 3000 or CENTUM VP cabinet. No hardware redesign is required. No new engineering drawings. No reconfiguration of the controller database in most standard replacement scenarios.

This matters operationally. A maintenance team can execute a module swap during a planned shutdown window without involving a system integrator or Yokogawa field service. The labor cost is limited to the time of a trained instrument technician. Compare this to the alternative: a forced I/O subsystem upgrade requires engineering design, procurement of new hardware, cabinet modification, loop testing, and control system database changes — a project measured in weeks and hundreds of thousands of dollars.

For facilities running parallel redundant configurations, a verified spare also serves as an immediate hot-standby replacement, eliminating the risk window that exists when a redundant module fails and the system is temporarily running on a single path.

Q: Can you source other Yokogawa CENTUM modules?
A: Yes. DriveKNMS specializes in hard-to-find Yokogawa I/O and controller modules across the CENTUM CS, CENTUM VP, and STARDOM product lines. Submit your full BOM or parts list for a consolidated quotation.
