Yokogawa AAI543-H53/S1 Analog Output Module – Critical CENTUM Spare Part

Technical Dossier

Product Details And Specifications

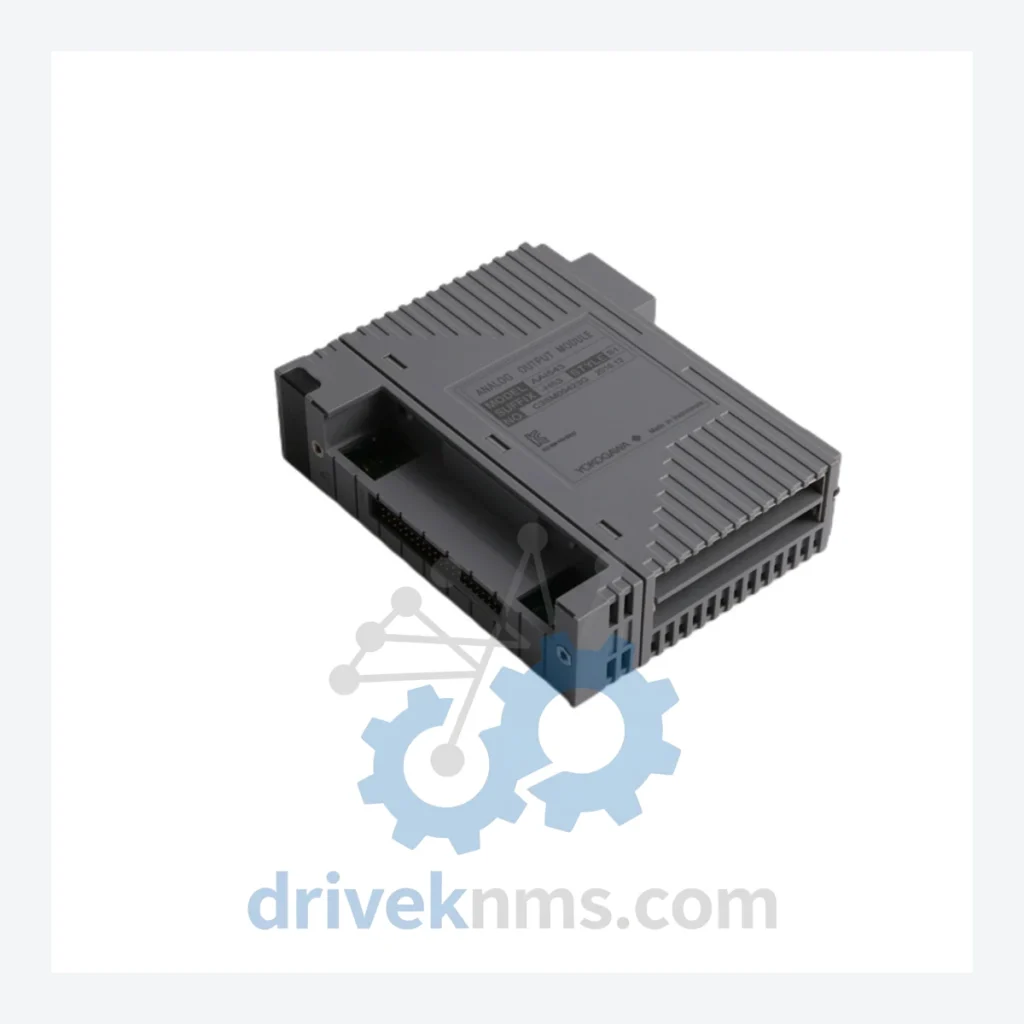

Yokogawa AAI543-H53/S1 Analog Output Module – Critical CENTUM Spare Part

A single failed analog output module can silence an entire process loop. In a CENTUM CS 3000 or CENTUM VP environment, the AAI543-H53/S1 is not a peripheral component — it is the direct interface between your control system and field instrumentation. When this module fails without a replacement on hand, the path forward is either an unplanned shutdown or an emergency procurement cycle measured in weeks, not hours. The cost of either outcome — lost production, expedited freight, contractor mobilization — routinely exceeds the value of years of spare parts inventory.

DriveKNMS reviews sourcing options for this model through RFQ handling before quotation.

Technical Specifications

Why the AAI543-H53/S1 Is a System-Critical Component

CENTUM CS 3000 and CENTUM VP installations represent capital investments that facilities routinely operate for 15 to 25 years. The analog output subsystem — built around modules like the AAI543-H53/S1 — handles the 4–20 mA signals that drive control valves, variable speed drives, and positioners across the plant. There is no software patch that compensates for a failed output channel. There is no firmware update that restores a burned output card.

For facilities managing aging CENTUM CS 3000 infrastructure specifically, the calculus is more urgent. As the installed base of CS 3000 systems ages, the secondary market for compatible I/O modules tightens. Units that are available today may not be available in 18 months. Securing spares now, while RFQ-reviewed sourcing status exists, is a straightforward asset protection decision.

Condition & Reliability Assurance

Every AAI543-H53/S1 unit shipped by DriveKNMS passes a structured 5-step inspection protocol before dispatch:

• Visual and mechanical inspection: Board-level examination for physical damage, connector pin integrity, and housing condition. Corroded or bent I/O pins are a disqualifying defect.
• Electrolytic capacitor assessment: Aging electrolytic capacitors are the primary failure mode in stored analog I/O modules. Units showing capacitor bulge, leakage, or ESR deviation are rejected.
• Firmware and label verification: Hardware revision markings and suffix codes (H53/S1) are cross-checked against the unit's physical configuration to confirm exact model match.
• Functional output verification: Where test infrastructure permits, output channel continuity and signal integrity are verified prior to packaging.
• Packaging and ESD protection: Units are packed in anti-static bags with desiccant and rigid outer packaging rated for international freight.

Key Features for System Maintenance

The AAI543-H53/S1 is a direct drop-in replacement for any failed unit of the same part number within a CENTUM CS 3000 or CENTUM VP I/O nest. No re-engineering is required. No control logic modifications are necessary. The replacement procedure follows standard Yokogawa hot-swap or cold-swap protocols depending on system configuration.

This matters operationally. Bringing in a third-party engineering team to redesign an I/O subsystem around a substitute module carries costs — engineering hours, system testing, validation documentation, potential requalification under process safety management frameworks — that can reach six figures before a single process loop is restored. A like-for-like replacement with a verified AAI543-H53/S1 eliminates that exposure entirely.

For maintenance teams operating under tight turnaround windows, the ability to swap a module without reprogramming or reconfiguration is not a convenience. It is the difference between a two-hour restoration and a two-week project.

How do I confirm the unit is genuine and correctly specified?
Each unit is shipped with documentation of its inspection record. The part number suffix (H53/S1) identifies the hardware revision and output configuration. If your application requires a specific firmware revision or hardware variant, confirm this with our technical team before ordering.

Should I hold more than one unit?
For facilities with multiple CENTUM I/O racks, holding a minimum of two AAI543-H53/S1 units is a defensible position. A single-unit spare strategy leaves no margin if a second failure occurs during the replacement cycle. For critical process units — reactors, compressors, primary separators — a two-unit minimum is standard practice among facilities with mature spare parts programs.
