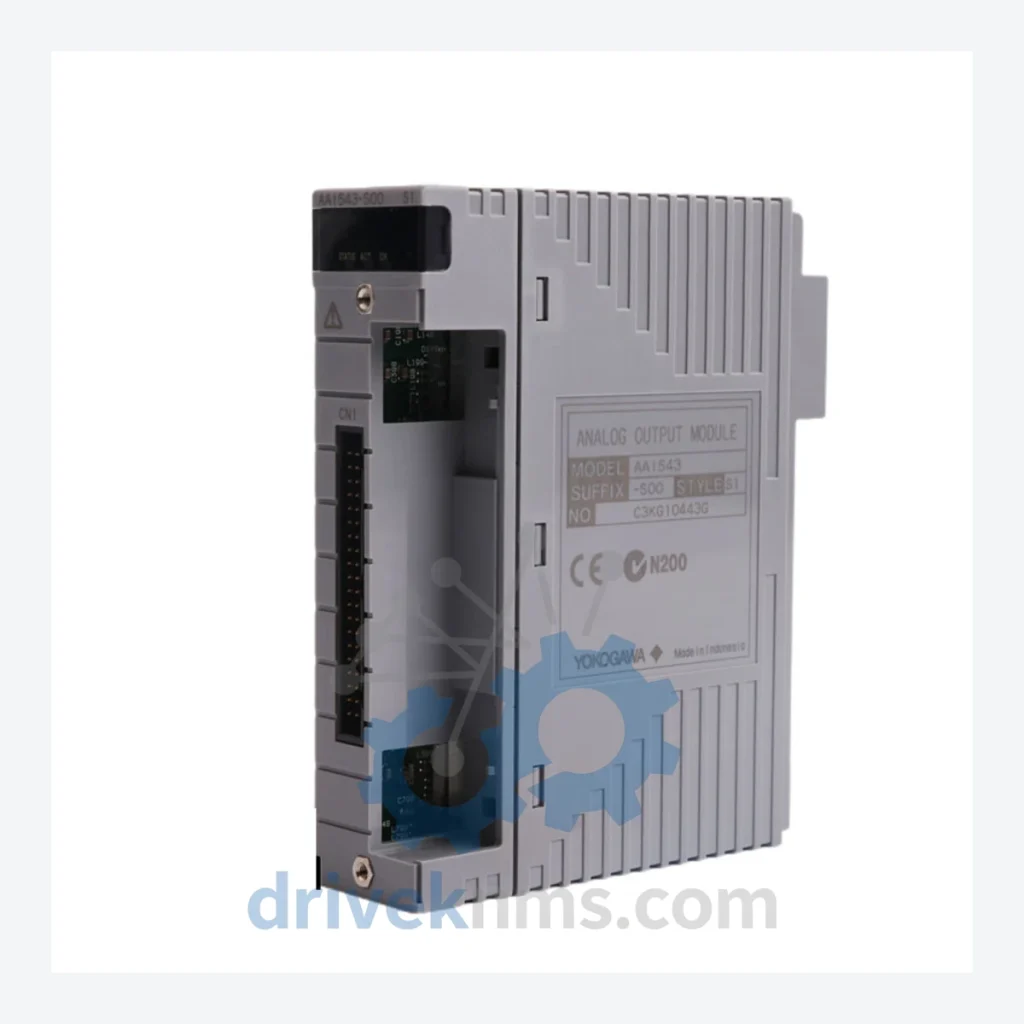

YOKOGAWA AAI543 Modules – AAI543-S00 S1

Technical Dossier

Product Details And Specifications

YOKOGAWA AAI543 Series Technical Notes

The YOKOGAWA AAI543 series comprises analog output modules engineered for deployment within YOKOGAWA's CENTUM CS 3000 and CENTUM VP Distributed Control Systems (DCS). These modules occupy a critical position in global heavy industry installations — including petrochemical refineries, nuclear power facilities, LNG terminals, and continuous-process chemical plants — where signal integrity, channel isolation, and long-term firmware stability are non-negotiable operational requirements.

The AAI543 family delivers 4–20 mA analog output signals across multiple isolated channels, interfacing directly with field devices such as control valves, positioners, and variable-speed drives. Their integration into YOKOGAWA's Vnet/IP and ESB bus architectures ensures deterministic scan cycle performance under high-load process conditions. Installed base figures across Asia-Pacific, the Middle East, and Europe confirm the AAI543 as one of the most widely deployed analog output module families in tier-1 DCS infrastructure globally.

The Evolution of AAI543 Architecture

The AAI543 series was introduced as part of YOKOGAWA's CENTUM CS 3000 platform, which succeeded the CENTUM-XL and μXL systems in the late 1990s. Early AAI543 variants were designed around the RIO (Remote I/O) bus architecture, providing galvanically isolated 4–20 mA outputs with HART pass-through capability on select models.

Key architectural milestones include: channel count standardization at 8 or 16 outputs per module; introduction of enhanced HART multiplexing; migration from parallel backplane to high-speed serial ESB bus; and integration of online self-diagnostics for open-loop and short-circuit detection. As of 2026, the AAI543 series is in its mature/end-of-active-production phase. YOKOGAWA continues to provide long-term maintenance support (LTMS) commitments, but new project specifications increasingly reference the CENTUM VP R6 generation modules. Operators maintaining legacy CS 3000 and early VP installations must source AAI543 units through authorized spare parts channels.

AAI543 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified models within the YOKOGAWA AAI543 analog output module series. Each entry reflects a distinct hardware suffix denoting channel configuration, isolation specification, or approval variant.

AAI543-S00 S1: 8-ch analog output, 4–20 mA, standard isolation, CENTUM CS3000/VP compatible
AAI543-S00 S2: 8-ch analog output, enhanced surge protection variant, field terminal block included
AAI543-S00 S3: 8-ch analog output, intrinsically safe barrier interface version
AAI543-S10: 16-ch analog output module, standard isolation, high-density I/O configuration
AAI543-S10 S1: 16-ch analog output, HART-enabled, CENTUM VP R4/R5 firmware certified
AAI543-S10 S2: 16-ch analog output, extended temperature range (-20°C to +70°C) industrial variant
AAI543-H00: 8-ch HART analog output, full HART 5/6/7 protocol support, device management integration
AAI543-H00 S1: 8-ch HART analog output, SIL 2 certified variant for safety instrumented systems
AAI543-H10: 16-ch HART analog output, high-density, CENTUM VP ESB bus architecture
AAI543-H10 S1: 16-ch HART analog output, redundant module support, hot-swap capable
AAI543-H10 S2: 16-ch HART analog output, ATEX/IECEx Zone 2 approved configuration
AAI543-S00 S4: 8-ch analog output, CE/UL dual-certified, export compliance variant
AAI543-S10 S3: 16-ch analog output, conformal coating applied, offshore/marine environment rated
AAI543-H00 S2: 8-ch HART output, loop-powered diagnostics, open-circuit detection per channel
AAI543-H10 S3: 16-ch HART output, high-vibration mounting variant, nuclear auxiliary system approved

Sourcing Hard-to-Find & Obsolete AAI543 Parts

For plant operators running CENTUM CS 3000 systems beyond their original design life, DriveKNMS provides multi-year supply agreements covering AAI543 and associated I/O modules, ensuring continuity of spare parts availability without forcing premature DCS platform migration.

Quality Control for the AAI543 Range

YOKOGAWA AAI543 modules incorporate a multi-layer backplane connector and ESB/RIO bus interface that requires specialized test procedures beyond standard bench power-up verification. DriveKNMS applies the following protocol to all AAI543 units prior to shipment:
