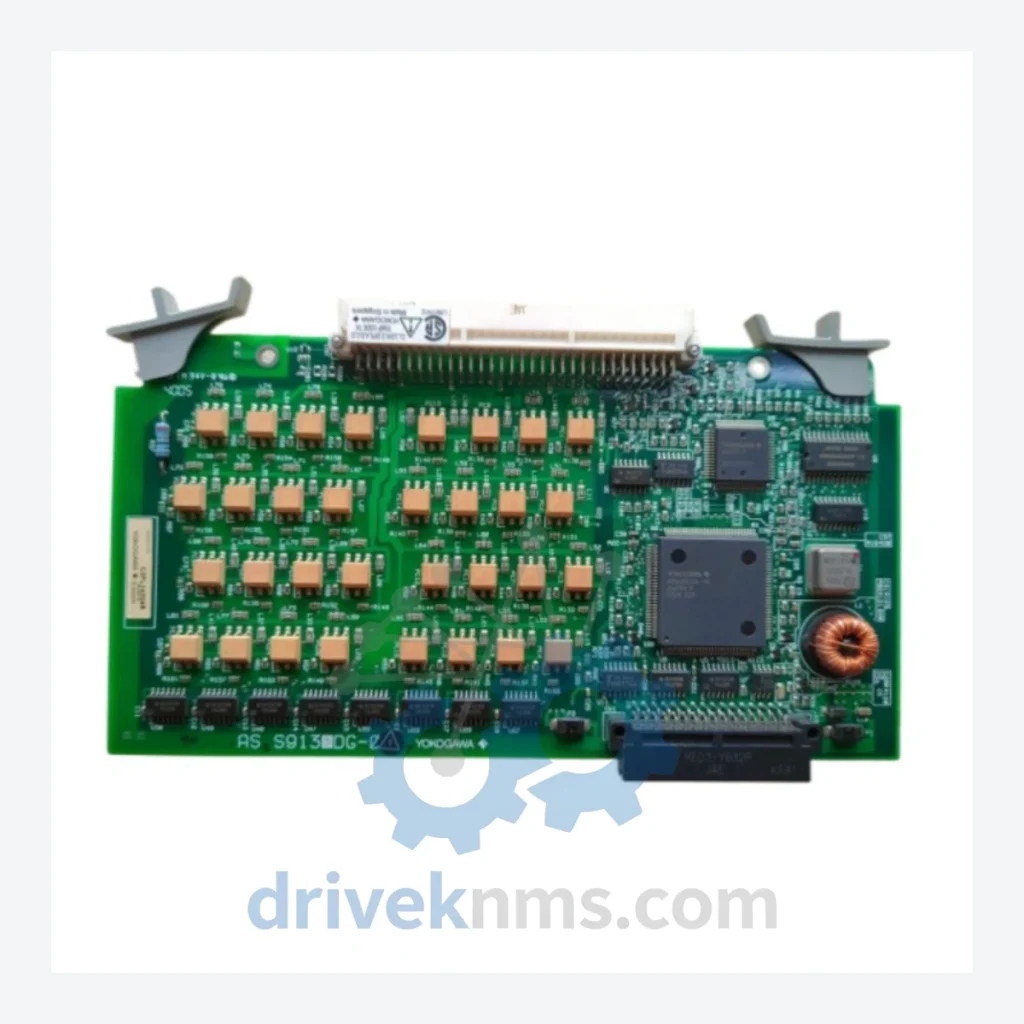

Yokogawa ADM Series Modules – ADM12 S4

Technical Dossier

Product Details And Specifications

Yokogawa ADM Series Technical Notes

The Evolution of ADM Series Architecture

The ADM series was introduced alongside the CENTUM CS platform in the early 1990s as a modular, rack-mounted I/O architecture. Early-generation modules used parallel backplane communication with proprietary Yokogawa bus protocols. With the transition to CENTUM CS 3000 (late 1990s), the ADM series was updated to support enhanced diagnostics and improved EMI tolerance, while maintaining backward compatibility with existing field wiring and marshalling cabinets.

The CENTUM VP generation (introduced mid-2000s) introduced the FIO (Field I/O) architecture as the strategic successor, offering Vnet/IP Ethernet-based communication and higher channel density. However, the ADM series remained supported for brownfield expansions and lifecycle extensions. Many ADM modules are now classified as mature or end-of-life by Yokogawa, meaning OEM production has ceased or is limited to service orders. This creates a sustained demand for tested surplus and refurbished ADM modules to support ongoing plant operations without full system migration.

ADM Series Full Catalog & Functionalities (SKU List)

Contact Output / Digital Output Modules

• ADM12 S4: Contact output I/O card, 16-channel relay contact output for CENTUM CS/CS 3000.
• ADM11 S4: Digital input I/O card, 32-channel 24 VDC isolated digital input module.
• ADM13 S4: Digital output I/O card, 32-channel transistor output for high-speed switching.
• ADM14 S4: Mixed DI/DO card, 16-channel digital input and 16-channel digital output combined.

Analog Input Modules

• ADM51 S4: Analog input card, 16-channel 4–20 mA current input with HART pass-through.
• ADM52 S4: Analog input card, 8-channel high-speed analog input for fast-loop applications.
• ADM53 S4: Thermocouple/RTD input card, 8-channel multi-sensor temperature input module.
• ADM55 S4: Analog input card, 16-channel voltage input (±10 V / 0–10 V selectable).

Analog Output Modules

• ADM61 S4: Analog output card, 8-channel 4–20 mA current output for control valve positioning.
• ADM62 S4: Analog output card, 16-channel 4–20 mA output, high-density configuration.
• ADM65 S4: Analog output card, 8-channel voltage output (0–10 V) for positioner and actuator control.

Communication & Specialty Modules

• ADM71 S4: Pulse input card, 8-channel high-speed pulse counter for flow measurement integration.
• ADM72 S4: Serial communication card, RS-232C/RS-485 interface for third-party device integration.
• ADM81 S4: Redundant I/O bus coupler card for dual-bus CENTUM CS 3000 redundant configurations.
• ADM82 S4: I/O bus interface card, node controller for multi-drop I/O nest expansion.
• ADM91 S4: Power supply module, 24 VDC field power distribution card for I/O nest assemblies.

Quality Control for the ADM Series Range

ADM series modules use a proprietary Yokogawa backplane bus with edge-connector interfaces that are sensitive to oxidation and mechanical wear. DriveKNMS applies a structured inspection and test protocol to all ADM modules prior to shipment:

• Visual inspection: PCB examination for corrosion, component damage, and connector pin integrity.
• Backplane connector cleaning: Gold-contact edge connectors are cleaned and inspected under magnification.
• Functional power-on test: Each module is powered and checked for correct LED status indication and self-diagnostic pass.
• Channel-level I/O verification: For analog modules, each channel is stimulated and output measured against Yokogawa accuracy specifications. For digital/contact modules, each channel switching function is verified under load.
• Firmware revision logging: Module firmware and hardware revision codes are recorded to confirm compatibility with target CENTUM system version.
• Burn-in period: Selected modules undergo 24-hour powered burn-in to screen for latent component failures.
