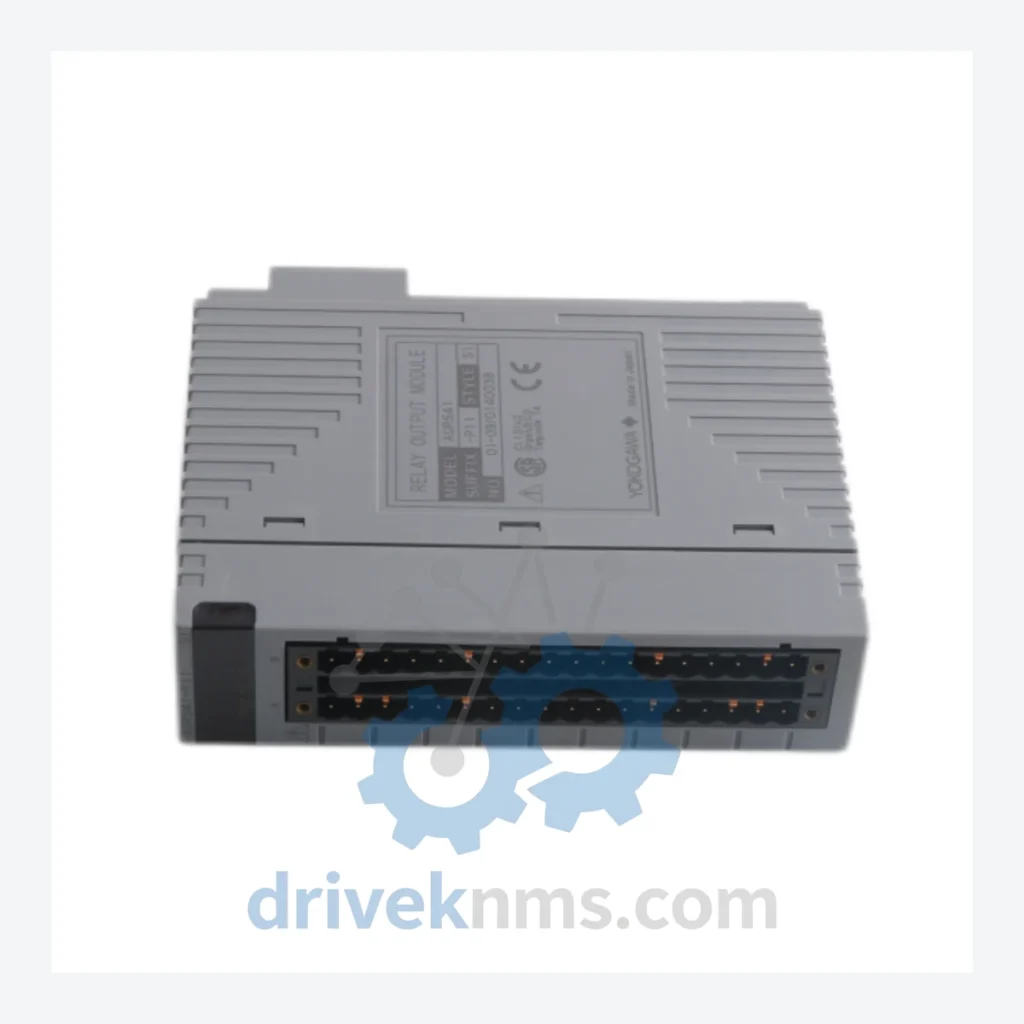

YOKOGAWA ADR541 Modules – ADR541-P11 S1

Technical Dossier

Product Details And Specifications

YOKOGAWA ADR541 Series Technical Notes

The YOKOGAWA ADR541 series comprises relay output modules designed for integration within YOKOGAWA's distributed control system (DCS) platforms, including CENTUM VP, CENTUM CS 3000, and ProSafe-RS safety instrumented systems. These modules are deployed across global heavy industries — petrochemical refineries, nuclear power generation facilities, LNG terminals, offshore platforms, and continuous-process chemical plants — where signal isolation, relay-driven field device control, and long-term platform stability are non-negotiable operational requirements. The ADR541 range provides dry-contact relay outputs used to drive solenoid valves, motor starters, alarm annunciators, and other discrete field actuators. Their backplane-mounted architecture ensures direct integration with YOKOGAWA's I/O bus without external wiring hubs, reducing failure points in safety-critical loops.

The Evolution of ADR541 Architecture

The ADR541 module lineage traces to YOKOGAWA's early CENTUM XL and CENTUM CS platform generations, where relay output modules were implemented as discrete, slot-mounted cards within field control stations (FCS). As YOKOGAWA transitioned through CENTUM CS 1000, CS 3000, and ultimately CENTUM VP (introduced circa 2008), the I/O module architecture evolved from parallel-bus backplanes to high-speed serial I/O bus (ESB bus) communication. The ADR541 series spans this transition, with earlier suffix variants (e.g., -P10) designed for CS 3000 FCS node compatibility, and later suffix variants (e.g., -P11, -P12) incorporating enhanced bus arbitration logic and improved EMI shielding for CENTUM VP environments. Compatibility between suffix generations is not guaranteed at the backplane level; substitution requires verification against the target FCS node type and I/O module slot assignment. As of 2026, the ADR541 series is in the mature-to-end-of-life phase. YOKOGAWA has transitioned new installations toward the ADV series (e.g., ADV151, ADV161) with enhanced diagnostics and HART pass-through capability. Long-term maintenance support for ADR541 variants is now primarily sourced through authorized third-party MRO suppliers and certified refurbishers.

ADR541 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified models within the YOKOGAWA ADR541 relay output module family, classified by functional variant and suffix designation:

ADR541-P11 S1: 16-channel relay output module, CENTUM VP FCS compatible, standard slot mount.
ADR541-P10 S1: 16-channel relay output module, CENTUM CS 3000 FCS compatible, earlier bus revision.
ADR541-P12 S1: 16-channel relay output module, enhanced EMI shielding, CENTUM VP R4 and above.
ADR541-P11 S2: 16-channel relay output, S2 suffix denotes conformal coating for high-humidity environments.
ADR541-P10 S2: CS 3000 compatible, conformal-coated variant for offshore and coastal installations.
ADR541-P13 S1: Relay output module with extended temperature range rating for high-ambient FCS enclosures.
ADR541-P11 S3: Relay output module, S3 suffix denotes CE/ATEX compliance marking for European hazardous area installations.
ADR541-P10 S3: CS 3000 bus, ATEX-compliant relay output for Zone 2 classified control room environments.
ADR541-P14 S1: High-density relay output variant, increased contact current rating per channel.
ADR541-P11 S4: Relay output module with UL/CSA certification suffix for North American market installations.
ADR541-P15 S1: Relay output module with integrated blown-fuse detection per output channel.
ADR541-P10 S4: CS 3000 compatible, UL/CSA-certified relay output for North American refinery installations.
ADR541-P16 S1: Relay output module, extended contact life rating, designed for high-cycle solenoid valve applications.
ADR541-P11 S5: Relay output module, S5 suffix denotes KCs (Korean Certification) compliance for South Korean market.
ADR541-P17 S1: Relay output module with dual-redundant coil drive circuit for safety-critical discrete output loops.
ADR541-P10 S5: CS 3000 bus, KCs-certified relay output module for Korean petrochemical plant installations.
ADR541-P18 S1: Relay output module, NAMUR NE 43-aligned output diagnostics, CENTUM VP R5 and above.
