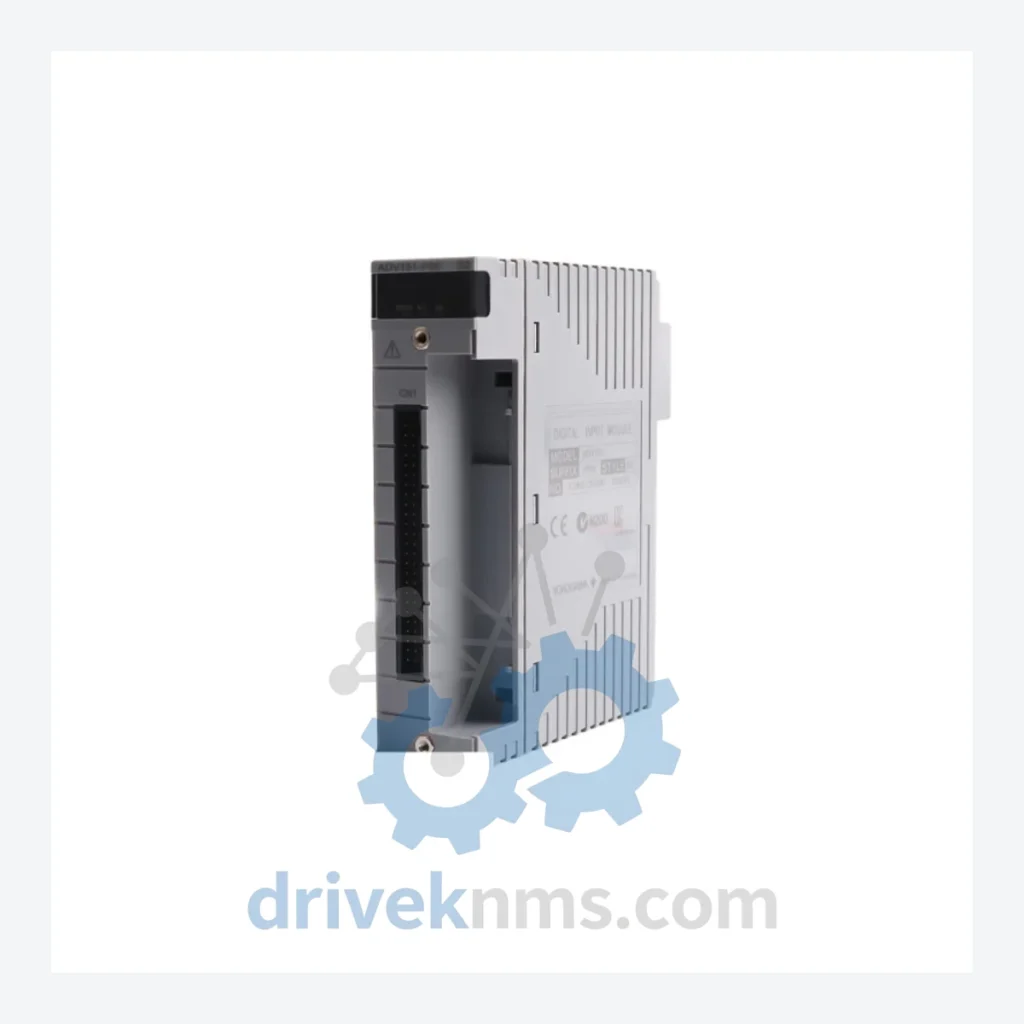

Yokogawa ADV151-E63 Digital Input Module

Technical Dossier

Product Details And Specifications

Yokogawa ADV151 Series: Comprehensive Module Range and Technical Overview

The Yokogawa ADV151 series represents a core family of Digital Input (DI) modules deployed within the Yokogawa CENTUM VP and CENTUM CS 3000 Distributed Control Systems. These modules are installed across critical heavy-industry infrastructure globally, including petrochemical complexes, nuclear power facilities, offshore platforms, and crude oil refineries. The ADV151 line interfaces field-level discrete signals — valve position feedback, motor run status, interlock signals — into the CENTUM process control network via the Vnet/IP or ESB bus backbone. Their role in safety-critical process loops makes long-term parts availability a primary operational concern for plant maintenance engineers.

ADV151 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly deployed modules within the Yokogawa ADV151 and closely related ADV-series DI/DO/AI/AO/CPU families used in CENTUM CS 3000 and CENTUM VP field control stations. Each entry reflects a distinct hardware configuration.

Digital Input (DI) Modules — ADV151 Series

• ADV151-E63: 32-ch 24VDC digital input module, enhanced isolation, S2 revision, ESB/Vnet compatible
• ADV151-P63: 32-ch 24VDC digital input module, standard isolation, panel-mount terminal block
• ADV151-E53: 32-ch 24VDC digital input, earlier hardware revision, ESB bus, reduced EMI shielding spec
• ADV151-P53: 32-ch 24VDC DI, standard isolation, P-type terminal, legacy CS 3000 FCS compatibility
• ADV151-E83: 32-ch 48VDC digital input module, enhanced isolation, extended voltage range variant
• ADV151-P83: 32-ch 48VDC DI, standard isolation, P-type terminal block configuration

Digital Output (DO) Modules — ADV161 Series

• ADV161-E63: 32-ch 24VDC digital output module, enhanced isolation, transistor sink output
• ADV161-P63: 32-ch 24VDC DO, standard isolation, P-type terminal, relay-compatible output
• ADV161-E53: 32-ch 24VDC DO, earlier revision, ESB bus, transistor output

Analog Input (AI) Modules — ADV551 / ADV557 Series

• ADV551-E53: 16-ch 4–20mA analog input module, enhanced isolation, HART pass-through capable
• ADV551-P53: 16-ch 4–20mA AI, standard isolation, P-type terminal block
• ADV557-E53: 8-ch thermocouple/RTD analog input, multi-sensor type, enhanced isolation

Analog Output (AO) Modules — ADV561 Series

• ADV561-E53: 8-ch 4–20mA analog output module, enhanced isolation, HART-capable
• ADV561-P53: 8-ch 4–20mA AO, standard isolation, P-type terminal

Communication & Power Modules

• ADM51E: ESB bus coupler module for CENTUM CS 3000 FCS, interfaces ADV-series I/O to station bus
• PW481: 24VDC power supply module for CENTUM VP field control station, redundancy-capable
• PW482: 48VDC power supply module, FCS rack-mount, redundant pair configuration

Quality Control for the ADV151 Range

ADV151-series modules present specific test challenges due to their multi-channel isolated DI architecture and ESB/Vnet backplane communication protocol. DriveKNMS applies the following test procedures to all ADV151 units prior to shipment: (1) Backplane bus communication verification using a CENTUM-compatible FCS test rack, confirming correct module recognition and channel-level addressing. (2) Per-channel input threshold testing across all 32 channels at rated voltage (24VDC or 48VDC), verifying ON/OFF switching at specified voltage margins. (3) Isolation resistance measurement between channel groups and chassis ground, per IEC 61010 requirements. (4) Terminal block torque and contact resistance verification, critical for S2-revision units with revised terminal specifications. (5) Firmware/hardware revision identification and documentation, ensuring the shipped unit matches the customer's specified revision. Units that fail any stage are quarantined and not returned to available inventory.
