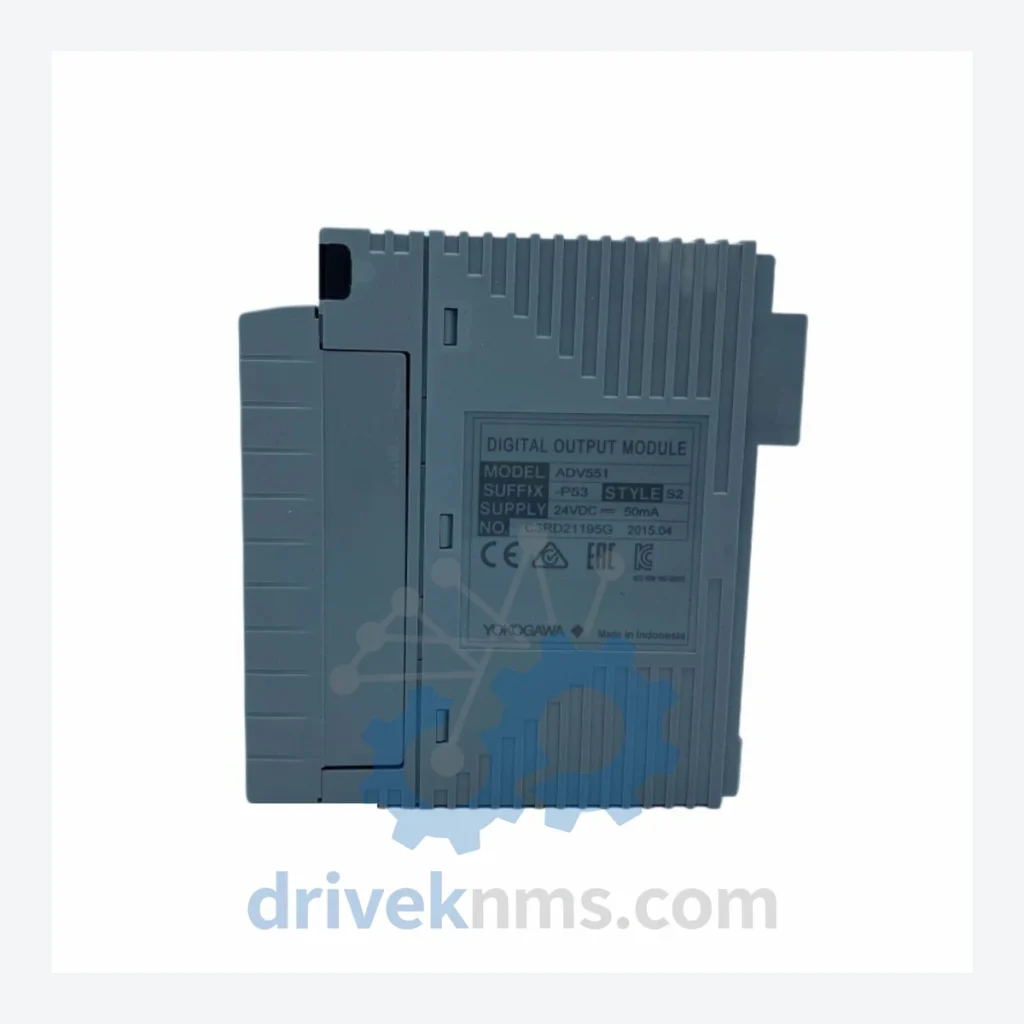

Yokogawa ADV151 Modules: ADV151-P53 S2 Digital Output Module

Technical Dossier

Product Details And Specifications

Yokogawa ADV151 Series Technical Notes

The Yokogawa ADV151 series is a family of digital output (DO) modules deployed within the Yokogawa CENTUM CS 3000 and CENTUM VP Distributed Control Systems (DCS). These modules occupy a critical position in global heavy industry infrastructure, with documented installations across petrochemical complexes, nuclear power facilities, LNG terminals, and crude oil refineries in Japan, China, Southeast Asia, the Middle East, and Europe. The ADV151 series interfaces directly with field devices — control valves, solenoid valves, motor starters, and on/off actuators — via isolated digital output channels. Their role in safety-critical loop control makes them among the most frequently maintained and replaced components in long-lifecycle DCS installations.

ADV151 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified models within the Yokogawa ADV151 digital output module series. Each entry includes a concise functional descriptor for engineering reference and procurement use.

ADV151-P53 S2: 16-ch 24VDC transistor DO, open-collector, terminal block type S2.
ADV151-P53 S3: 16-ch 24VDC transistor DO, open-collector, terminal block type S3.
ADV151-P54 S2: 32-ch 24VDC transistor DO, high-density, terminal block S2.
ADV151-P54 S3: 32-ch 24VDC transistor DO, high-density, terminal block S3.
ADV151-P55 S2: 16-ch relay contact DO, 250VAC/30VDC rated, terminal block S2.
ADV151-P55 S3: 16-ch relay contact DO, 250VAC/30VDC rated, terminal block S3.
ADV151-P56 S2: 32-ch relay contact DO, high-density relay output, terminal block S2.
ADV151-P56 S3: 32-ch relay contact DO, high-density relay output, terminal block S3.
ADV151-P57 S2: 16-ch 48VDC transistor DO, extended voltage range, terminal block S2.
ADV151-P57 S3: 16-ch 48VDC transistor DO, extended voltage range, terminal block S3.
ADV151-P58 S2: 16-ch 24VDC DO with enhanced surge protection, terminal block S2.
ADV151-P58 S3: 16-ch 24VDC DO with enhanced surge protection, terminal block S3.
ADV151-P59 S2: 32-ch 24VDC DO, isolated channel groups, terminal block S2.
ADV151-P60 S2: 16-ch 24VDC DO, NAMUR-compatible output, terminal block S2.
ADV151-P61 S2: 32-ch 24VDC DO, group isolation, CE/ATEX-rated variant, terminal block S2.
ADV151-P62 S2: 16-ch relay DO, gold-contact relay, low-current signal switching, terminal block S2.
ADV151-P63 S3: 32-ch relay DO, high-cycle relay, process interlock applications, terminal block S3.
