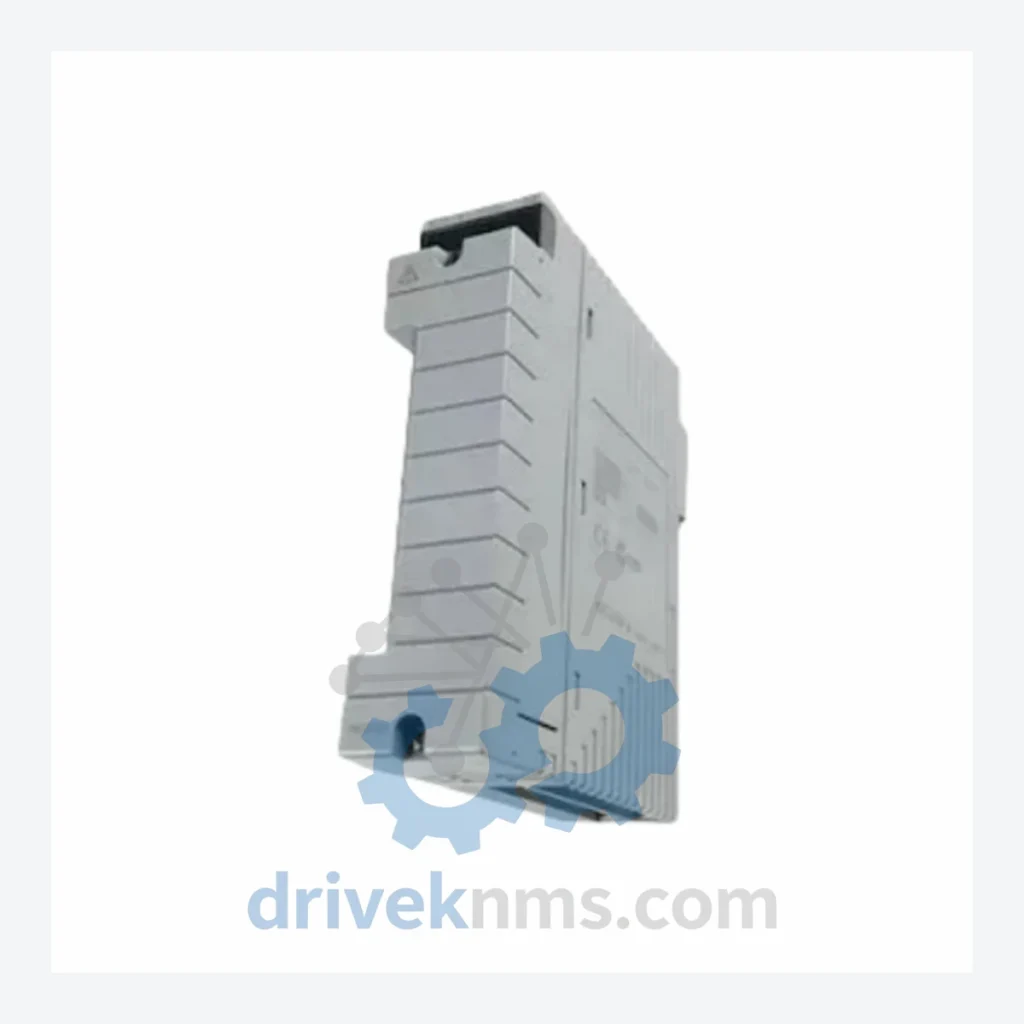

YOKOGAWA ADV551 Modules: ADV551-P03

Technical Dossier

Product Details And Specifications

YOKOGAWA ADV551 Series: Comprehensive Module Range and Technical Overview

The YOKOGAWA ADV551 series is a family of digital output (DO) modules deployed within the CENTUM VP Distributed Control System (DCS) platform — one of the most widely installed process automation architectures in global heavy industry. These modules are found in continuous operation environments including petrochemical complexes, LNG terminals, nuclear power auxiliary systems, crude oil refineries, and large-scale chemical manufacturing plants. The ADV551 series interfaces directly with the CENTUM VP Field Control Station (FCS) backplane, executing discrete output commands to field devices such as solenoid valves, motor starters, and relay-driven actuators. Their role in safety-critical and high-availability loops makes them a long-term maintenance priority for plant asset managers worldwide.

The Evolution of ADV551 Architecture

The ADV551 lineage traces to YOKOGAWA's CENTUM CS 3000 platform, where early-generation digital output modules established the 32-channel DO standard for FCS-based control. With the transition to CENTUM VP (introduced circa 2008), YOKOGAWA re-engineered the I/O subsystem to support enhanced diagnostics, hot-swap capability, and dual-redundant power distribution. The ADV551 series in its current form is designed for the RIO (Remote I/O) and ESB (Enhanced Signal Bus) node architecture, supporting both standard and SIL-rated configurations when paired with appropriate safety logic solvers.

Key architectural milestones include the shift from parallel wiring to multiplexed I/O bus communication, the introduction of field terminal assembly (FTA) separation for live maintenance, and the integration of module-level LED diagnostics for rapid fault isolation. Compatibility between ADV551 variants and their corresponding FTAs (e.g., ADT151, ADT161 series) is version-specific and must be verified against the CENTUM VP Engineering Reference prior to substitution.

As CENTUM VP enters its mature lifecycle phase, YOKOGAWA has announced migration pathways toward the CENTUM VP R6 and OpreX Control and Safety System platforms. However, the installed base of ADV551 modules across global brownfield sites ensures continued demand for spare parts, repair services, and lifecycle extension support well into the 2030s.

ADV551 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified models within the YOKOGAWA ADV551 and closely related CENTUM VP digital output module range. Each entry includes a concise functional descriptor:

ADV551-P03: 32-ch digital output module, 24VDC, FCS RIO node compatible, hot-swap.
ADV551-P01: 16-ch digital output module, 24VDC, standard FCS backplane mount.
ADV551-P02: 32-ch digital output module, 24VDC, enhanced diagnostics variant.
ADV551-P04: 32-ch digital output, 48VDC field power, high-voltage field device support.
ADV551-P05: 32-ch digital output, relay contact type, dry contact field interface.
ADV551-P06: 16-ch digital output, relay contact, SIL-capable configuration.
ADV161-P03: 32-ch digital input module, 24VDC, paired counterpart to ADV551-P03.
ADV161-P01: 16-ch digital input module, 24VDC, standard FCS backplane.
ADV551-S03: 32-ch DO module, HART-pass-through enabled, smart field device support.
ADV551-S01: 16-ch DO module, HART-enabled, reduced channel density variant.
ADV151-P03: 32-ch analog output module, 4–20mA, FCS RIO node, related I/O family.
ADV151-P01: 16-ch analog output, 4–20mA, standard backplane, CENTUM VP FCS.
ADV161-S03: 32-ch digital input, HART-enabled, smart transmitter diagnostics.
ADV551-P07: 32-ch digital output, 120VAC field power, AC-driven actuator support.
ADV551-P08: 32-ch digital output, 240VAC field power, high-voltage AC field interface.
ADV551-P09: 32-ch digital output, pulse output type, positioning and metering applications.
ADV551-P10: 16-ch digital output, 24VDC, compact node for space-constrained marshalling.

Sourcing Hard-to-Find & Obsolete ADV551 Parts

DriveKNMS maintains a dedicated inventory program for YOKOGAWA CENTUM VP and CENTUM CS 3000 spare parts, with particular focus on modules that have been discontinued or placed on limited availability by the OEM. The ADV551 series, while still supported under YOKOGAWA's standard maintenance contract framework, is subject to increasing lead times as production volumes decline in line with platform maturity.

DriveKNMS sources ADV551 modules through certified secondary market channels, decommissioned plant asset recovery, and direct OEM surplus. All units are catalogued by firmware revision and hardware revision code to ensure compatibility with the customer's existing FCS configuration. For end-users operating CENTUM VP systems beyond the standard 10-year support window, DriveKNMS provides lifecycle extension packages including module exchange, repair-and-return, and long-term consignment stocking agreements.

Customers requiring cross-reference validation between legacy CENTUM CS 3000 module part numbers and current CENTUM VP equivalents are encouraged to submit their existing BOM (Bill of Materials) for technical review prior to ordering.

Quality Control for the ADV551 Range

Each ADV551 module processed by DriveKNMS undergoes a structured inspection and functional verification protocol adapted to the specific electrical and communication architecture of CENTUM VP I/O subsystems. The procedure includes visual inspection of the backplane connector pins and PCB for corrosion, mechanical damage, or capacitor degradation; power-on self-test (POST) verification against YOKOGAWA's published diagnostic LED sequence; channel-level output verification across all 32 (or 16) DO channels using a calibrated load bank; ESB/RIO bus communication handshake test using a CENTUM VP FCS emulation bench; and firmware revision identification and logging against the customer's system revision baseline.

Modules exhibiting intermittent faults or communication errors are subjected to extended burn-in testing under thermal cycling conditions representative of typical cabinet operating environments (0°C to 60°C). All test results are documented and provided with the shipment as a module-level test certificate.
