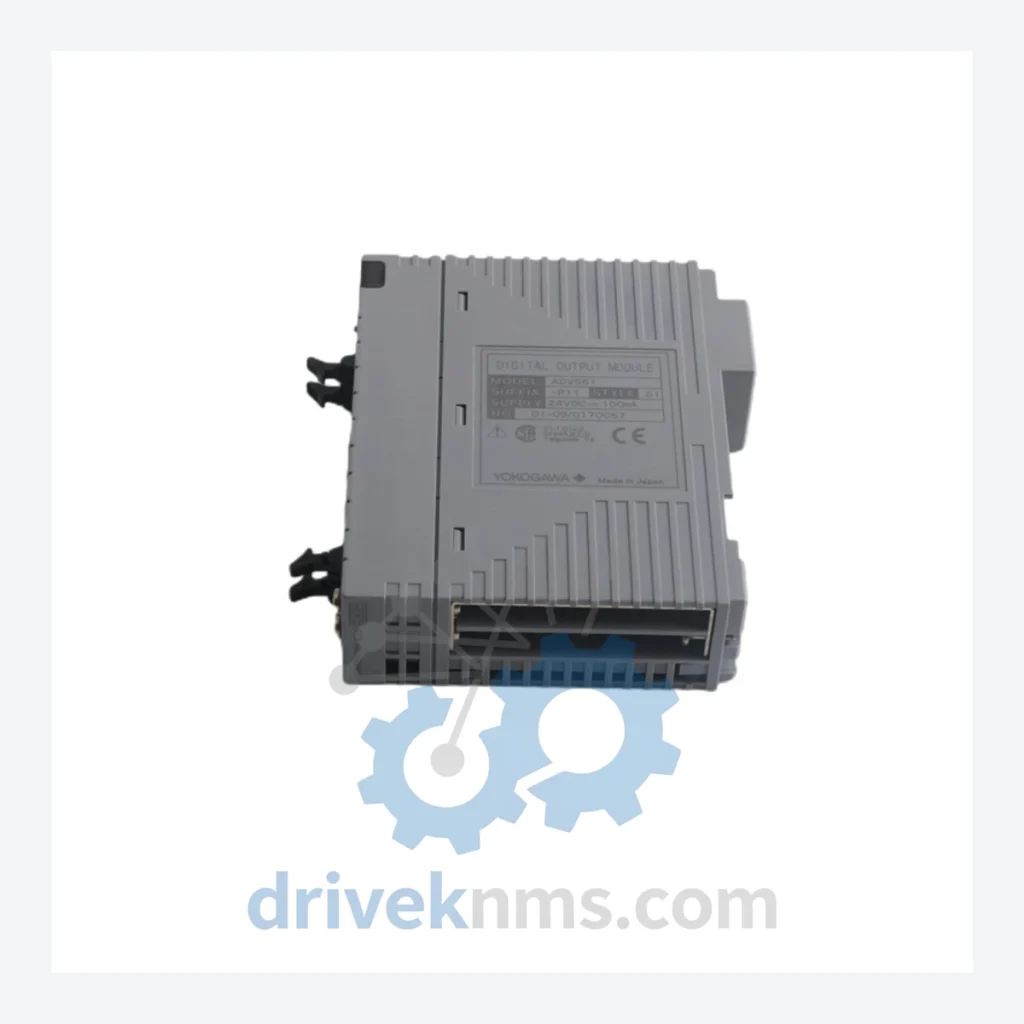

YOKOGAWA ADV561 Modules – ADV561-P11 S1

Technical Dossier

Product Details And Specifications

YOKOGAWA ADV561 Series Technical Notes

The YOKOGAWA ADV561 series is a line of digital output modules deployed within the YOKOGAWA CENTUM VP and CS 3000 Distributed Control Systems (DCS). These modules occupy a critical role in heavy industrial automation infrastructure, including petrochemical refineries, nuclear power generation facilities, LNG processing plants, and large-scale chemical manufacturing complexes. The ADV561 series interfaces directly with field devices — actuators, solenoid valves, motor starters, and relay-driven equipment — converting digital control signals from the DCS controller into discrete 24 VDC or 100/115 VAC output commands. Their modular architecture, high channel density, and compatibility with YOKOGAWA's Field Control Station (FCS) backplane make them a standard specification in engineering procurement packages for greenfield and brownfield industrial projects globally. Units such as the ADV561-P11 S1 remain in active service across installations with multi-decade operational lifespans, making spare parts availability a persistent operational requirement for plant maintenance teams.

The Evolution of ADV561 Architecture

The ADV561 series was introduced as part of YOKOGAWA's CENTUM CS and subsequently carried forward into the CENTUM CS 3000 and CENTUM VP platforms. Early revisions of the ADV561 were designed for 16-channel discrete output operation with isolated field terminals, supporting both sourcing and sinking output configurations depending on suffix designation. As the CENTUM platform matured through successive hardware generations, the ADV561 underwent incremental revisions — reflected in the suffix codes (S1, S2, S3) — addressing improvements in output driver reliability, EMC compliance, and backplane communication protocol alignment with updated FCS firmware versions.

Compatibility between suffix generations is a documented engineering concern: S1-suffix modules are fully compatible with earlier CS 3000 R2 and R3 FCS hardware, while later suffix variants may require FCS firmware at or above specific revision levels. Plants operating legacy CS 3000 installations must verify suffix compatibility before substituting modules during maintenance cycles. YOKOGAWA's transition toward the CENTUM VP platform introduced the ADV561-equivalent functionality within the VP I/O subsystem, but the physical ADV561 form factor and backplane pinout remain unchanged, preserving backward compatibility across platform generations.

ADV561 Full Catalog & Functionalities (SKU List)

The following catalog represents confirmed ADV561-series part numbers and their functional designations within the YOKOGAWA CENTUM DCS I/O subsystem. Each module occupies a single slot in the Node Unit (NU) or Field Control Unit (FCU) I/O nest.

ADV561-P10 S1: 16-ch 24VDC digital output, source type, S1 revision
ADV561-P10 S2: 16-ch 24VDC digital output, source type, S2 revision
ADV561-P10 S3: 16-ch 24VDC digital output, source type, S3 revision
ADV561-P11 S1: 16-ch 24VDC digital output, sink type, S1 revision
ADV561-P11 S2: 16-ch 24VDC digital output, sink type, S2 revision
ADV561-P11 S3: 16-ch 24VDC digital output, sink type, S3 revision
ADV561-P50 S1: 16-ch 100/115VAC digital output, isolated, S1 revision
ADV561-P50 S2: 16-ch 100/115VAC digital output, isolated, S2 revision
ADV561-P51 S1: 16-ch 200/240VAC digital output, isolated, S1 revision
ADV561-P51 S2: 16-ch 200/240VAC digital output, isolated, S2 revision
ADV561-P60 S1: 8-ch relay contact output, SPDT, 24VDC/240VAC
ADV561-P60 S2: 8-ch relay contact output, SPDT, updated contact rating
ADV561-P61 S1: 8-ch relay contact output, DPDT, 24VDC/240VAC
ADV561-P70 S1: 16-ch 24VDC DO, high-speed pulse output capable
ADV561-P70 S2: 16-ch 24VDC DO, high-speed, S2 revision
ADV561-P80 S1: 32-ch 24VDC digital output, high-density, source type
ADV561-P80 S2: 32-ch 24VDC digital output, high-density, S2 revision

Sourcing Hard-to-Find & Obsolete ADV561 Parts

DriveKNMS supports installed-base sourcing for this series through RFQ review, including model matching, condition checks and documentation requirements before quotation.
