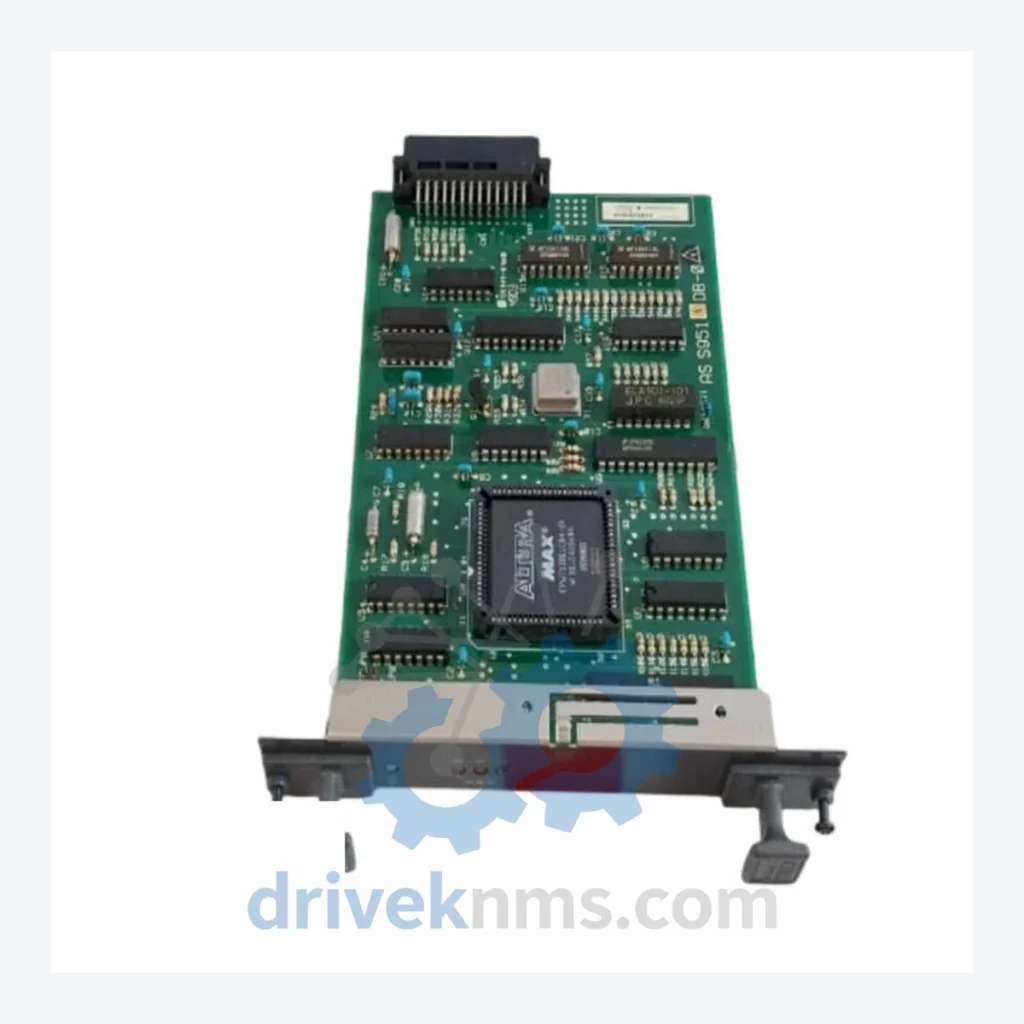

Yokogawa AIP171 Series Modules

Technical Dossier

Product Details And Specifications

Yokogawa AIP Series Technical Notes

The Yokogawa AIP Series constitutes the primary bus interface and I/O signal processing layer within the CENTUM CS and CENTUM VP Distributed Control Systems — two of the most widely deployed DCS platforms in global heavy industry. Installations span continuous-process environments including petroleum refining, petrochemical complexes, LNG terminals, nuclear power generation auxiliary systems, pulp and paper mills, and large-scale chemical manufacturing. The AIP series modules are mounted on Field Control Station (FCS) node units and serve as the physical and logical bridge between the V-net/Vnet-IP control network and field instrumentation. Their role is non-redundant in function: a failed AIP module directly impacts loop control, making spare parts availability a critical operational parameter for plant maintenance engineers.

The Evolution of AIP Series Architecture

The AIP designation was introduced alongside the CENTUM CS platform in the mid-1990s as Yokogawa transitioned from proprietary BRAIN bus architectures to a more modular, rack-based I/O philosophy. Early AIP modules (AIP171–AIP182 range) were designed for the CENTUM CS 1000/3000 FCS hardware, operating on the ESB (Expanded Signal Bus) backplane. These modules communicated via a parallel bus structure with strict slot-position dependencies — a constraint that required exact replacement with the same model number during maintenance.

With the introduction of CENTUM VP (circa 2008), Yokogawa extended AIP series compatibility through firmware revisions and introduced the AIP5xx sub-series to support enhanced I/O density and Vnet-IP dual-redundant Ethernet control networking. The AIP8xx sub-series further addressed high-channel-count applications and integration with FOUNDATION Fieldbus and HART pass-through configurations. Backward compatibility between CS and VP hardware generations is partial: AIP1xx modules can operate in VP FCS racks under specific firmware conditions, but AIP5xx and AIP8xx modules are not backward-compatible with CS 1000/3000 hardware. This generational boundary is the primary driver of obsolescence-related procurement challenges.

AIP Series Full Catalog & Functionalities (SKU List)

Bus Interface & Node Communication Modules

• AIP171: ESB bus interface module; primary FCS-to-I/O node communication link for CENTUM CS/VP.
• AIP172: Dual-redundant ESB interface module; used in high-availability FCS configurations.
• AIP173: Extended ESB node interface; supports increased node distance in large FCS racks.
• AIP174: ESB terminator and bus extension module for multi-node FCS architectures.
• AIP175: Node interface module with integrated diagnostics for ESB bus health monitoring.

Analog Input Modules

• AIP176: 16-channel analog input; 4–20 mA, HART-compatible, for process variable acquisition.
• AIP177: 8-channel high-accuracy analog input; ±0.1% FS, for precision measurement loops.
• AIP178: 16-channel analog input with HART multiplexer; supports device parameter read/write.
• AIP179: Thermocouple/RTD analog input module; 8-channel, multi-sensor type selection.
• AIP180: 16-channel analog input; isolated channel design for high-noise industrial environments.

Analog Output Modules

• AIP181: 8-channel analog output; 4–20 mA, HART pass-through, for control valve actuation.
• AIP182: 16-channel analog output; high-drive capability for long cable runs in field installations.

Digital I/O Modules

• AIP501: 32-channel digital input module; 24 VDC, for discrete status and interlock signal acquisition.
• AIP502: 32-channel digital output module; relay-isolated, for solenoid valve and motor starter control.
• AIP503: 16-channel digital input/output mixed module; configurable per channel via FCS parameter.
• AIP504: High-speed digital input module; pulse counting and frequency measurement, 32-channel.
• AIP505: 16-channel digital output; transistor type, for high-cycle switching applications.

Communication & Fieldbus Adapter Modules

• AIP506: FOUNDATION Fieldbus H1 interface module; supports up to 16 FF devices per segment.
• AIP507: PROFIBUS DP master interface module; integrates third-party field devices into CENTUM VP.
• AIP508: DeviceNet master interface; for integration of valve manifolds and motor drives.
• AIP827: Vnet-IP dual-port interface module; primary network node card for CENTUM VP FCS units.
• AIP828: Vnet-IP redundant interface module; secondary port for dual-ring Ethernet control network.
• AIP829: Enhanced Vnet-IP interface with integrated firewall function for cybersecurity-compliant installations.
• AIP830: Vnet-IP gateway module; bridges legacy V-net coaxial segments to Vnet-IP Ethernet infrastructure.
