YOKOGAWA AIP562 S1 V-Net Coupler Module – Obsolete CENTUM Series Spare Part

Technical Dossier

Product Details And Specifications

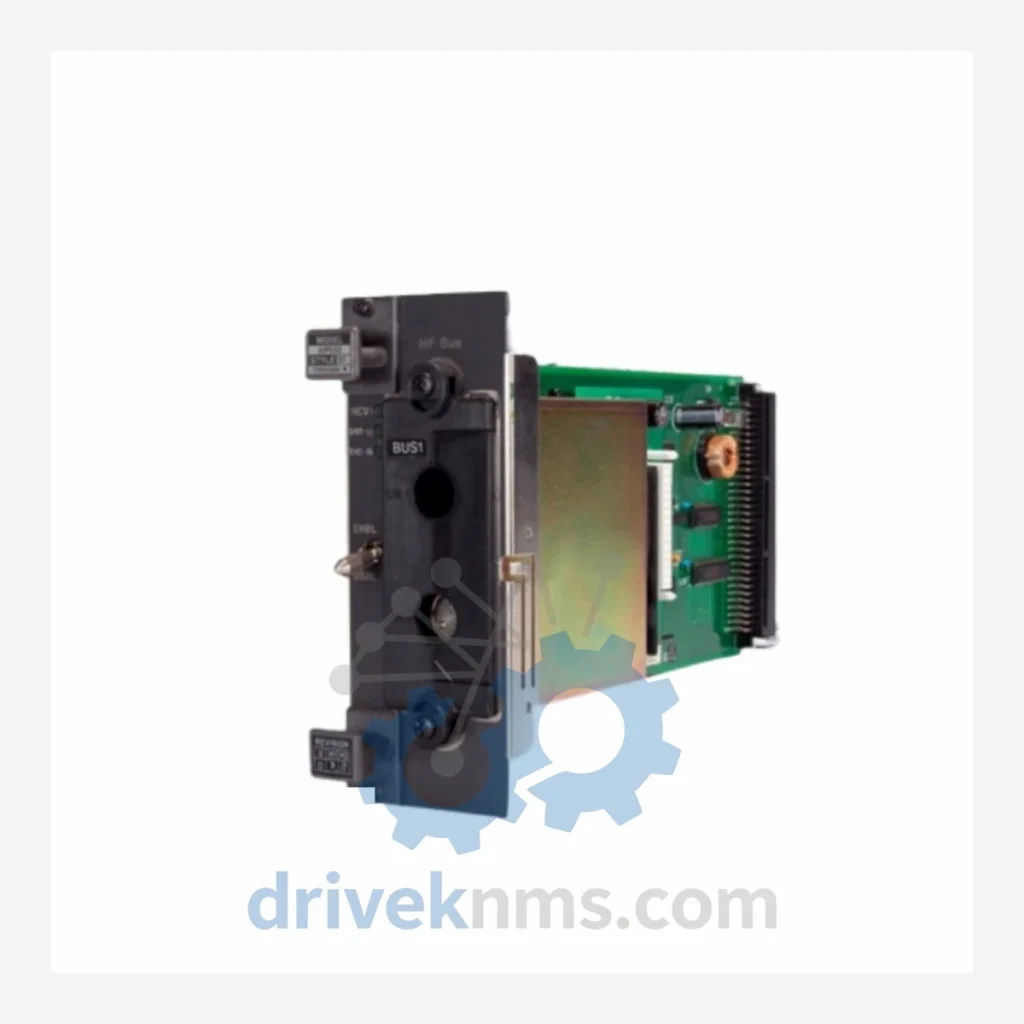

YOKOGAWA AIP562 S1 V-Net Coupler Module – Obsolete CENTUM Series Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Solving the Discontinued Hardware Crisis

The YOKOGAWA CENTUM platform, particularly installations built around the V-net communication bus, represents decades of process tuning, loop configuration, and operator familiarity. The AIP562 S1 is not a peripheral accessory — it is a structural node in the V-net ring. Without a functioning coupler, the ring topology degrades or collapses entirely, taking with it the real-time data exchange that process control depends on.

For plant managers operating facilities with a 10–20 year remaining service horizon, the calculus is straightforward: a verified AIP562 S1 spare, held on-site, eliminates the single-point-of-failure risk that would otherwise force an unplanned system migration. The cost of that migration — engineering, procurement, installation, process revalidation, and lost production — dwarfs the cost of maintaining a strategic spare inventory by an order of magnitude.

Facilities that have successfully extended CENTUM system life by 5–10 years beyond the manufacturer's support window share a common practice: they identified critical communication and I/O modules early, sourced verified spares before market availability collapsed, and established a documented maintenance protocol around those components. The AIP562 S1 belongs on that list.

Condition & Reliability Assurance

Every AIP562 S1 unit processed by DriveKNMS passes a structured 5-step inspection protocol before it is offered for sale. This protocol is designed specifically for legacy industrial modules where age-related degradation follows predictable failure modes:

Step 1 – Electrolytic Capacitor Assessment: Capacitors are the primary age-related failure point in modules of this generation. Each unit is inspected for bulging, electrolyte leakage, and ESR deviation. Units with capacitor degradation are either reconditioned by qualified technicians or removed from saleable inventory.

Step 2 – Firmware Version Verification: The installed firmware revision is documented and cross-referenced against known compatibility requirements for CENTUM CS and VP host systems. Mismatched firmware is flagged before dispatch review.

Step 3 – Pin and Connector Inspection: Backplane connector pins are examined under magnification for oxidation, corrosion, and mechanical deformation. Affected contacts are cleaned using approved methods; units with structural pin damage are rejected.

Step 4 – Board-Level Visual Inspection: PCB surfaces are examined for trace damage, solder joint fatigue, and contamination. Any unit showing evidence of prior field repair is documented and disclosed.

Step 5 – Functional Verification: Where test infrastructure permits, modules are powered and communication function is verified. Results are recorded and accompany the unit.

Condition grade (New Surplus, Refurbished, or Tested Used) is stated explicitly in the quotation. No unit is shipped without a documented inspection record.

Key Features for System Maintenance

The AIP562 S1 is a direct hardware replacement within its compatible CENTUM architecture. Installation does not require reprogramming of the host DCS, reconfiguration of the V-net ring parameters, or modification of existing I/O assignments. The module slots into the original rack position and restores communication function without engineering intervention beyond standard commissioning checks.

This drop-in replacement characteristic is the defining maintenance advantage of sourcing an original-part spare over pursuing a modern substitute. Engineering workarounds for discontinued modules — protocol converters, gateway devices, custom interface cards — introduce new failure points, require validation effort, and consume engineering hours that carry their own cost. The AIP562 S1 eliminates that overhead entirely.

For maintenance teams operating under budget constraints, this translates directly: one verified spare part, correctly stored, preserves the option to recover from a critical failure without triggering a capital project. That option has measurable financial value.

Can this module be used in a CENTUM VP system?
Compatibility depends on the specific system revision and V-net configuration. DriveKNMS recommends providing your system version details at the time of inquiry so compatibility can be confirmed before dispatch review.
