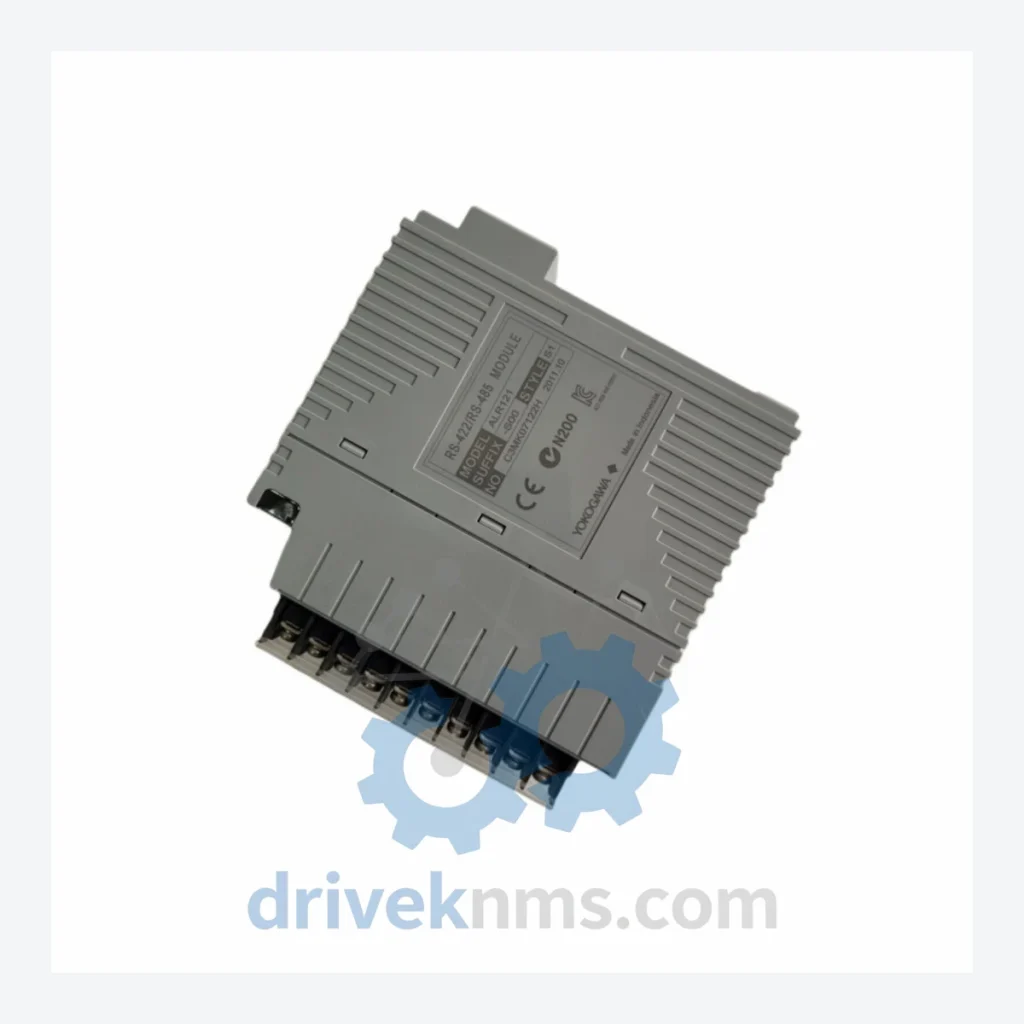

Yokogawa ALR121 Modules – ALR121-S00

Technical Dossier

Product Details And Specifications

Yokogawa ALR121 Series Technical Notes

The Evolution of ALR121 Architecture

The ALR121 series was introduced as part of Yokogawa's transition from the legacy CENTUM-XL and CENTUM CS 3000 platforms toward the unified CENTUM VP architecture, which became the dominant DCS framework in Yokogawa's portfolio from the mid-2000s onward. Early ALR121 variants were designed primarily for V-net communication — Yokogawa's proprietary real-time control bus — operating at 10 Mbps with deterministic token-passing protocol. As plant networks evolved toward Ethernet-based topologies, subsequent ALR121 suffix variants introduced support for V-net/IP, which encapsulates V-net protocol over standard 100BASE-TX Ethernet infrastructure, enabling integration with modern plant information networks without requiring full system migration.

The suffix structure of ALR121 part numbers encodes the communication protocol and hardware revision. The base designation ALR121 identifies the module family; the suffix (e.g., -S00, -S41, -S50) specifies the communication interface type, hardware generation, and regional certification variant. Modules with the -S1 suffix appended indicate a second hardware revision with updated firmware compatibility for CENTUM VP R5.x and later. The -A1 suffix denotes modules with extended ambient temperature tolerance for installations in non-climate-controlled enclosures. Compatibility between suffix variants and specific CENTUM VP software revisions must be verified against Yokogawa's hardware compatibility matrix prior to substitution.

As CENTUM VP has entered a mature lifecycle phase — with Yokogawa's current development focus shifting toward the OpreX Control and Safety System portfolio — the ALR121 series is no longer in active production expansion. However, Yokogawa continues to provide software support for CENTUM VP, and the installed base remains extensive. This positions ALR121 modules firmly in the long-term maintenance and spare parts category, where sourcing from qualified third-party distributors with RFQ-reviewed sourcing status and testing capability is the primary procurement channel for plant operators.

ALR121 Full Catalog & Functionalities (SKU List)

V-net Communication Modules

• ALR121-S00: Standard V-net communication interface module for CENTUM VP FCS; single-port, non-redundant configuration.
• ALR121-S41: V-net communication module with enhanced noise immunity; suited for electrically noisy industrial environments.
• ALR121-S00-S1: Second-generation hardware revision of ALR121-S00; firmware compatibility extended to CENTUM VP R5.04 and later.
• ALR121-S41-S1: Second-generation revision of ALR121-S41; updated bus arbitration logic for improved network stability.
• ALR121-S00-A1: Extended temperature variant of ALR121-S00; operational range expanded for high-ambient enclosure installations.
• ALR121-S41-A1: Extended temperature variant of ALR121-S41; combines noise immunity design with wide-temperature hardware.

V-net/IP (Ethernet-Based) Communication Modules

• ALR121-S50: V-net/IP communication module; 100BASE-TX Ethernet interface for integration with plant LAN infrastructure.
• ALR121-S51: V-net/IP module with dual-port Ethernet; supports ring topology for network redundancy at the physical layer.
• ALR121-S55: V-net/IP module with integrated firewall functionality; restricts unauthorized access at the FCS network boundary.
• ALR121-S60: V-net/IP module supporting CENTUM VP R6.x architecture; updated packet handling for higher-throughput supervisory networks.
• ALR121-S61: Dual-port V-net/IP module for R6.x; designed for redundant Ethernet ring configurations in large-scale DCS topologies.
• ALR121-S50-S1: Second-generation ALR121-S50; revised PHY chipset for improved Ethernet signal integrity over longer cable runs.
• ALR121-S51-S1: Second-generation ALR121-S51; updated dual-port Ethernet controller with enhanced VLAN support.
• ALR121-S55-S1: Second-generation ALR121-S55; firewall rule capacity increased and management interface updated.
• ALR121-S60-S1: Second-generation ALR121-S60; firmware aligned with CENTUM VP R6.09 and later maintenance releases.
• ALR121-S61-S1: Second-generation ALR121-S61; dual-port redundant Ethernet with updated ring protocol stack for R6.x systems.

Quality Control for the ALR121 Range

ALR121 modules present specific testing challenges due to their role as active communication bus participants. A module that passes basic power-on self-test but has degraded bus driver circuitry will cause intermittent communication errors that are difficult to diagnose in a live plant environment. DriveKNMS applies a multi-stage verification process to all ALR121 units prior to shipment.

Stage one involves visual inspection and component-level assessment of the backplane connector, bus termination resistors, and Ethernet PHY components (for V-net/IP variants). Stage two involves powered functional testing using a CENTUM VP test bench configured to the target software revision, verifying that the module correctly initializes, joins the V-net or V-net/IP segment, and sustains error-free communication under simulated load conditions for a minimum test duration. Stage three involves firmware version verification and documentation, with the hardware revision label cross-referenced against Yokogawa's hardware compatibility records. All test results are documented and accompany the shipment, providing the receiving plant's instrument engineer with a traceable quality record.
