Yokogawa CENTUM CS/CS3000 AAM51 Series: Comprehensive Module Range and Technical Overview

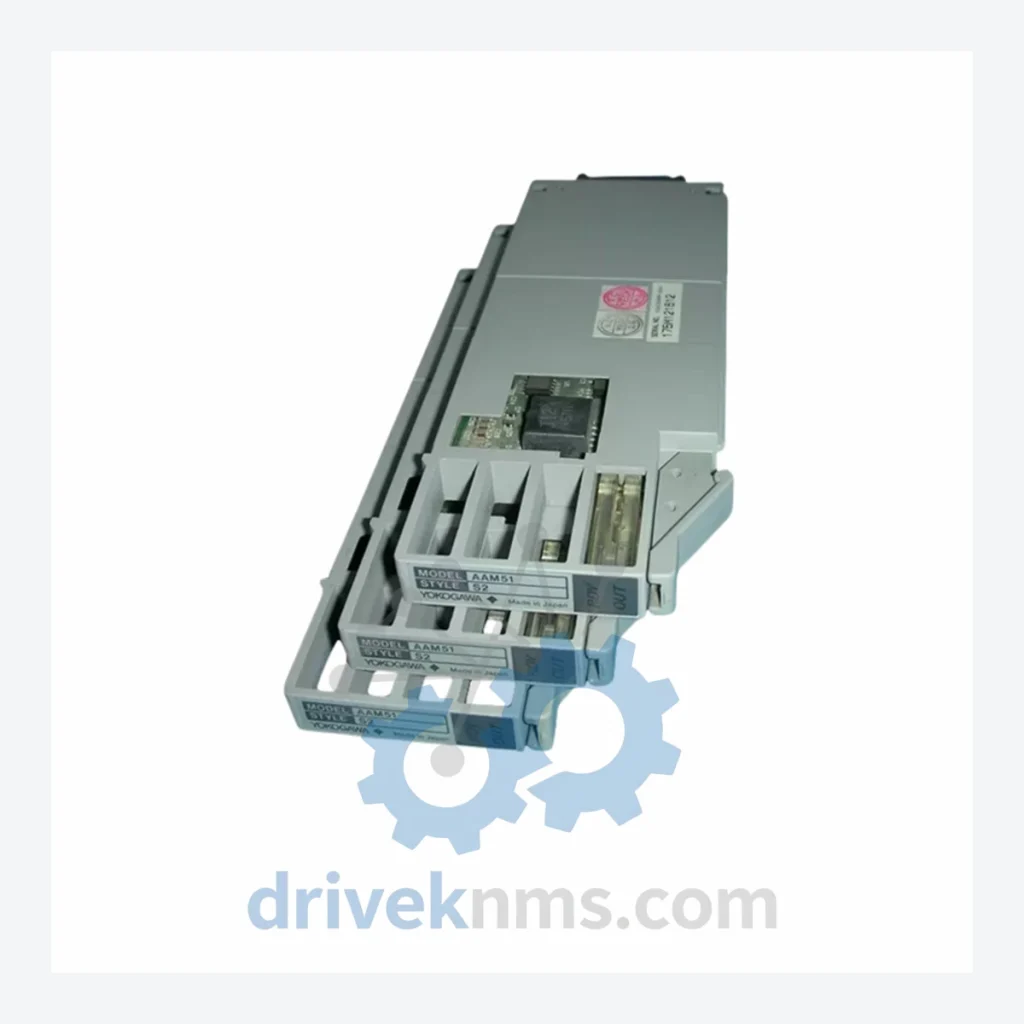

The Yokogawa AAM51 S2 is an analog output module deployed within the CENTUM CS and CENTUM CS3000 Distributed Control System (DCS) platform — one of the most widely installed process automation architectures in global heavy industry. This series is embedded in continuous-process facilities including petrochemical complexes, nuclear power stations, LNG terminals, pulp and paper mills, and offshore platforms. The CENTUM CS3000 platform, introduced in the late 1990s and progressively enhanced through the 2000s, achieved dominant market penetration across Asia-Pacific, the Middle East, and Europe. The AAM51 module specifically handles analog current and voltage output signal conditioning, interfacing the DCS controller layer with field actuators, control valves, and positioners. Its role is non-redundant in standard configurations but can be deployed in redundant I/O architectures using paired module slots. The S2 suffix denotes the second hardware revision, incorporating improved EMC shielding and revised terminal block specifications relative to the S1 generation.

The Evolution of CENTUM CS/CS3000 Architecture

Yokogawa's CENTUM platform has a continuous lineage spanning four decades. The original CENTUM (1975) established the field bus and distributed node concept. CENTUM XL (1983) introduced modular I/O racks. CENTUM CS (1993) marked the transition to Windows-based engineering stations and standardized the FCS (Field Control Station) architecture that the AAM51 family is designed for. CENTUM CS3000 (1998) extended this with enhanced redundancy options, expanded I/O density, and Vnet/IP communication. CENTUM VP (2008) succeeded CS3000 as the current-generation platform, introducing Ethernet-based Vnet/IP and maintaining backward compatibility with select CS3000 I/O modules.

The AAM51 module is native to the CENTUM CS and CS3000 generations. It is not natively compatible with CENTUM VP without the use of legacy I/O adapter hardware. Facilities running CS3000 that have not migrated to VP represent the primary installed base requiring AAM51 spare parts. Given that CS3000 reached end-of-active-development around 2015, the installed base is now in a sustained maintenance and lifecycle-extension phase, making reliable spare part sourcing a critical operational requirement.

CENTUM CS3000 AAM51 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified modules within the Yokogawa CENTUM CS/CS3000 I/O and controller ecosystem. Modules are classified by functional category.

Analog Output Modules

• AAM51 S2: 8-channel analog current/voltage output module, 4–20 mA / 0–10 V DC, 12-bit resolution, for CENTUM CS3000 FCS.
• AAM51 S1: First-generation 8-channel analog output module; predecessor to S2 with identical channel count but earlier EMC specification.
• AAM50 S2: 4-channel analog output module, reduced-density variant of AAM51 for lower I/O count applications.

Analog Input Modules

• AAI141 S2: 16-channel analog current input module, 4–20 mA, HART-capable, for CENTUM CS3000.
• AAI143 S2: 16-channel analog input module with HART communication, dual-redundancy support.
• AAI135 S2: 8-channel analog input module, thermocouple/RTD/mV input types, for temperature measurement loops.
• AAI841 S2: 16-channel analog input, high-density configuration for large I/O node deployments.

Digital Input Modules

• ADV151 S2: 32-channel digital input module, 24 V DC, for discrete field signal acquisition.
• ADV141 S2: 16-channel digital input module, 24 V DC, standard density DI for CENTUM CS3000 FCS.
• ADV157 S2: 32-channel digital input, 100–120 V AC input voltage range.

Digital Output Modules

• ADV551 S2: 32-channel digital output module, 24 V DC, transistor output type.
• ADV541 S2: 16-channel digital output module, relay contact output, for solenoid valve and alarm annunciator interfacing.

Communication & CPU Modules

• CP451 S2: Field Control Station CPU module for CENTUM CS3000; executes control logic and manages I/O bus communication.
• CP461 S2: Enhanced FCS CPU module with expanded memory and faster scan cycle for high-density control applications.
• ESB401 S2: Enhanced Sequence Bus interface module; manages communication between FCS CPU and I/O node expansion units.

Power Supply Modules

• PW481 S2: 24 V DC power supply module for CENTUM CS3000 I/O node; provides regulated bus power to installed I/O modules.
• PW482 S2: Redundant power supply module; paired with PW481 for uninterrupted power in critical process applications.

Sourcing Hard-to-Find & Obsolete CENTUM CS3000 Parts

Yokogawa officially discontinued active production of CENTUM CS3000-specific hardware following the platform's end-of-life designation. Facilities operating CS3000 systems face a constrained supply environment: OEM new-old-stock is largely depleted, and authorized repair channels have reduced capacity. DriveKNMS maintains a dedicated inventory of CENTUM CS and CS3000 modules — including the AAM51 S2 and related I/O, CPU, and power supply modules — sourced through verified industrial surplus channels and decommissioned plant asset recovery.

DriveKNMS provides lifecycle extension support for the following scenarios: emergency replacement of failed modules to avoid unplanned process shutdown; scheduled maintenance stock replenishment for annual turnaround planning; and long-term spares contracts for facilities with 5–15 year remaining operational horizons before planned DCS migration. All modules are supplied with full traceability documentation and are available for immediate dispatch or scheduled delivery against maintenance windows.

Quality Control for the CENTUM CS3000 AAM51 Range

The AAM51 S2 and related CENTUM CS3000 modules undergo a structured inspection and functional verification protocol prior to dispatch. Each module is visually inspected for PCB damage, capacitor condition, terminal block integrity, and backplane connector pin alignment. Functional testing is performed using a CENTUM CS3000-compatible test rack, verifying channel-by-channel analog output accuracy across the full 4–20 mA and 0–10 V DC output ranges. Output linearity, zero offset, and span error are measured against Yokogawa factory specifications. For communication modules (CP451, ESB401), Vnet bus initialization and FCS handshake sequences are verified. Power supply modules are load-tested at rated current. Modules that do not meet specification thresholds are quarantined and not offered for sale. Test records are retained and available upon request.
