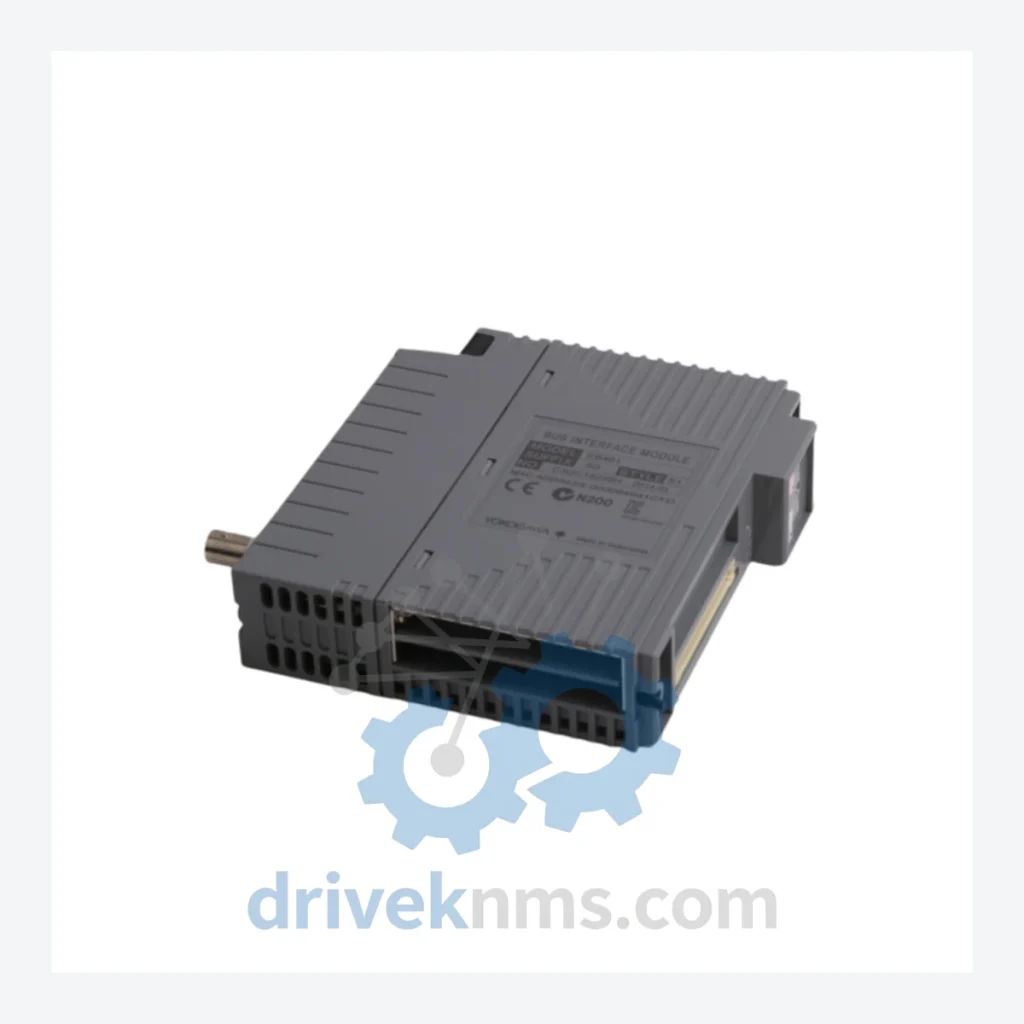

YOKOGAWA EB401 Modules: EB401-50 S1

Technical Dossier

Product Details And Specifications

YOKOGAWA EB401 Series: Comprehensive Module Range and Technical Overview

The YOKOGAWA EB401 series comprises bus interface master modules deployed within the STARDOM FCN/FCJ field control station architecture. These modules serve as the communication backbone between the FCN autonomous controller and field I/O nodes across distributed process control installations. The EB401 series has established a significant installed base in continuous-process industries including petroleum refining, chemical manufacturing, LNG terminals, nuclear auxiliary systems, and pulp and paper production. Their role as bus masters in high-availability control loops makes them critical long-term maintenance items for plant operators running STARDOM-based DCS infrastructure.

The Evolution of EB401 Architecture

The EB401 module was introduced as part of Yokogawa's STARDOM FCN platform, which succeeded earlier field control architectures by consolidating bus communication and I/O expansion into a modular, rack-mounted format. Early EB401 variants established the Vnet/IP and RS-485-based field bus topology that allowed FCN controllers to address up to 16 remote I/O nodes per bus segment. Subsequent hardware revisions (denoted by suffix codes such as S1, S2) introduced enhanced EMI shielding, extended operating temperature tolerance, and improved bus arbitration logic to reduce cycle-time jitter in high-scan-rate applications. The EB401-50 S1 specifically targets 50-node bus configurations with a master arbitration role, distinguishing it from slave-role variants. As the STARDOM FCN platform has entered its mature/sustaining lifecycle phase, Yokogawa has shifted new project recommendations toward the FAST/TOOLS and OpreX Control platforms; however, the EB401 series remains in active maintenance support, and replacement modules continue to be required for the large global installed base. Plants operating STARDOM FCN systems through 2030+ must maintain access to EB401 spares to avoid forced platform migrations during unplanned outages.

EB401 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified models within the YOKOGAWA EB401 and closely related FCN I/O bus module family. Each entry reflects a distinct hardware configuration or revision level.

EB401-50 S1: Bus interface master module, 50-node addressing, revision S1 hardware
EB401-50 S2: Bus interface master module, 50-node addressing, revision S2 with enhanced EMI tolerance
EB401-10 S1: Bus interface master module, 10-node bus segment configuration
EB401-10 S2: Bus interface master module, 10-node configuration, updated firmware baseline
EB501-10 S1: Extended bus interface module, 10-node, compatible with FCN-RTU chassis
EB501-50 S1: Extended bus interface module, 50-node, FCN-RTU rack deployment
EB811-10 S1: Vnet/IP bus coupler module, 10-node, Ethernet-based field bus
EB811-50 S1: Vnet/IP bus coupler module, 50-node, high-density I/O segment
FCN-RTU NF10S: FCN-RTU autonomous controller base unit, hosts EB401 bus master
FCN-100 NF10S: FCN-100 controller module, primary CPU for STARDOM rack
FCN-500 NF50S: FCN-500 high-performance controller, dual-redundant bus master support
ADV151-P50 S1: Analog input module, 16-ch, 4–20 mA, FCN I/O bus compatible
ADV551-P50 S1: Analog output module, 8-ch, 4–20 mA, FCN rack mount
ADV161-P50 S1: Analog input module, 16-ch, thermocouple/RTD, FCN bus
DI841-H10 S1: Digital input module, 32-ch, 24 VDC, high-density FCN I/O
DO841-H10 S1: Digital output module, 32-ch, 24 VDC transistor output, FCN rack
PW481-50 S1: Power supply module, 24 VDC input, FCN/FCJ chassis power rail
PW482-50 S1: Redundant power supply module, dual-feed, FCN high-availability rack

Sourcing Hard-to-Find & Obsolete EB401 Parts

Quality Control for the EB401 Range

EB401 bus interface master modules present specific test challenges due to their role as active bus arbiters. DriveKNMS applies the following verification protocol to all EB401 units prior to shipment. Each module undergoes visual inspection of the backplane connector array (96-pin DIN 41612) for pin deformation, oxidation, and solder joint integrity. Functional bus arbitration is verified by installing the module into an FCN test rack and confirming master-role negotiation with at least two slave I/O nodes across a live RS-485 segment. Vnet/IP-capable variants are additionally tested for Ethernet frame transmission and reception at rated throughput. Firmware revision is read and recorded via the FCN engineering tool (FAST/TOOLS or STARDOM Engineering Tool) and matched against the customer's specified revision requirement. Burn-in testing at 50°C ambient for a minimum of 4 hours is applied to all modules flagged as long-term storage stock. Test records are retained and available upon request for quality documentation purposes.
