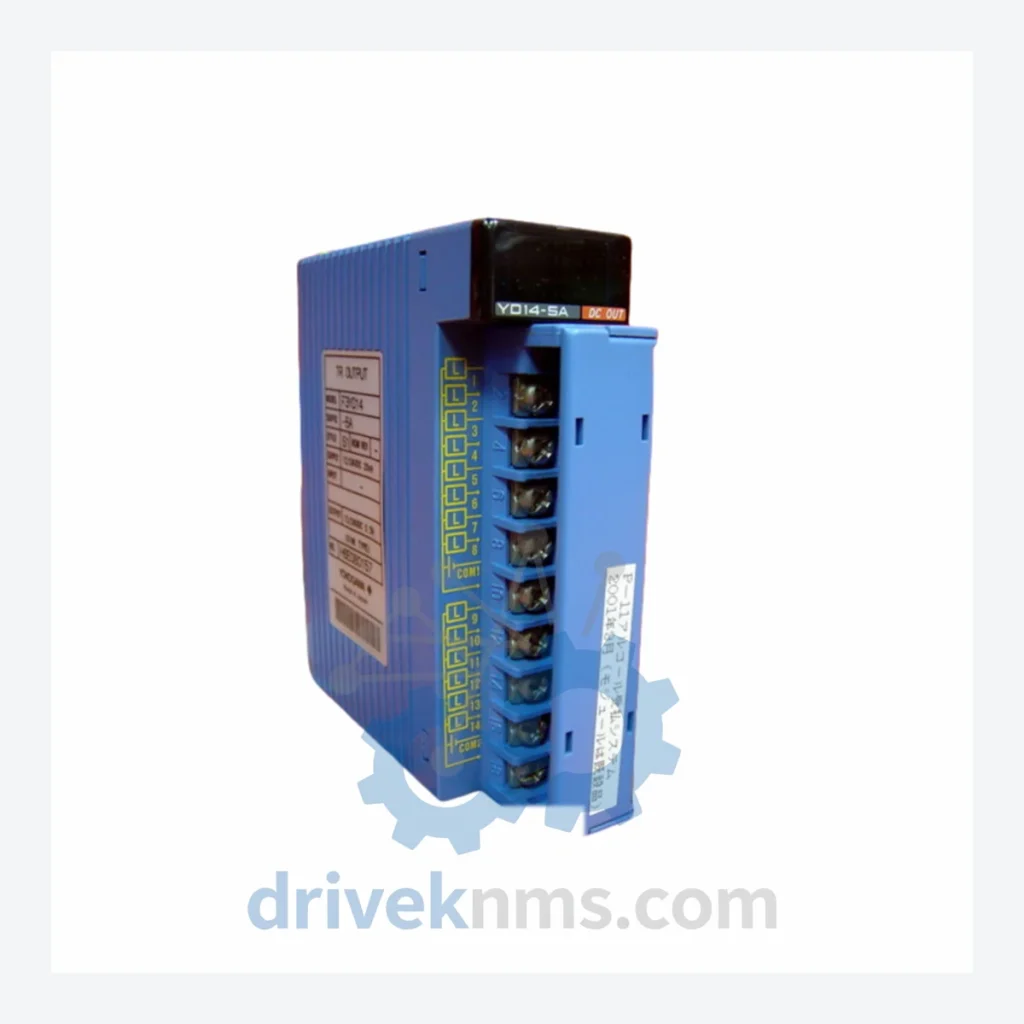

Yokogawa F3YD14-5A Transistor Output Module – Obsolete FA-M3 Spare Part

Technical Dossier

Product Details And Specifications

Yokogawa F3YD14-5A Transistor Output Module – Obsolete FA-M3 Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters are based on published Yokogawa FA-M3 documentation. Parameters not confirmed by official documentation are intentionally omitted.

Solving the Discontinued Hardware Crisis

The Yokogawa FA-M3 platform has been deployed across petrochemical plants, pharmaceutical manufacturing lines, steel mills, and food processing facilities throughout Asia, the Middle East, and Europe since the 1990s. Many of these installations represent capital investments exceeding tens of millions of dollars. The F3YD14-5A output module sits at the interface between the controller and field actuators — conveyor drives, solenoid valves, indicator lamps, and relay coils. There is no generic substitute. The FA-M3 backplane architecture, I/O addressing scheme, and CPU communication protocol are proprietary. Replacing this module with a non-Yokogawa alternative requires hardware redesign, software modification, and full system re-validation — a process that no plant manager undertakes lightly.

Condition & Reliability Assurance

Discontinued modules sourced from the secondary market carry inherent risk if not properly evaluated. DriveKNMS applies a 5-step inspection protocol to all FA-M3 I/O modules before dispatch review:

• Step 1 – Visual and Mechanical Inspection: Housing integrity, connector pin condition, and PCB surface examination for corrosion, burn marks, or physical damage.
• Step 2 – Electrolytic Capacitor Assessment: Aged electrolytic capacitors are the primary failure mode in modules stored beyond 10 years. Each unit is evaluated for capacitor bulging, leakage, and ESR deviation.
• Step 3 – Firmware and Label Verification: Module revision markings and firmware version labels are cross-referenced against Yokogawa's published revision history to confirm authenticity and compatibility.
• Step 4 – Pin and Connector Integrity Check: All I/O terminal pins and backplane connector contacts are inspected for oxidation, deformation, and contact resistance.
• Step 5 – Functional Power-On Test: Where test fixtures are available, modules undergo a controlled power-on sequence to verify basic output channel response prior to packaging.

Units that do not pass all five stages are not offered for sale. Condition is clearly stated in the product listing and confirmed in writing prior to order confirmation.

Key Features for System Maintenance

• Drop-in Replacement: The F3YD14-5A installs directly into any compatible FA-M3 rack slot. No hardware modification, no wiring changes.
• No Reprogramming Required: The FA-M3 CPU recognizes the module automatically upon rack scan. Existing ladder logic and I/O mapping remain intact.
• Avoids Engineering Reconstruction Costs: Substituting a like-for-like module eliminates the need for control system re-architecture, re-validation, or regulatory re-certification in regulated industries.
• Immediate Operational Restoration: Mean time to restore production using a pre-sourced spare is measured in hours. Mean time to restore production through a system migration is measured in months.
• Long-Term Asset Protection: Holding 2–3 units in bonded spare parts inventory is a recognized strategy for extending FA-M3 system service life through the next planned maintenance cycle.

Q: Should I purchase more than one unit?
A: For any FA-M3 installation where the F3YD14-5A is a critical output module, holding a minimum of one cold spare is advisable. For high-availability lines running 24/7, two units is the standard recommendation. Secondary market availability of this part will continue to decrease over time.

Q: Can you confirm compatibility with my specific FA-M3 rack configuration?
A: Contact our technical team with your CPU model and rack configuration. We will confirm slot compatibility before order confirmation.
