Yokogawa NFPW442-11

Technical Dossier

Product Details And Specifications

Yokogawa NFPW Series Technical Notes

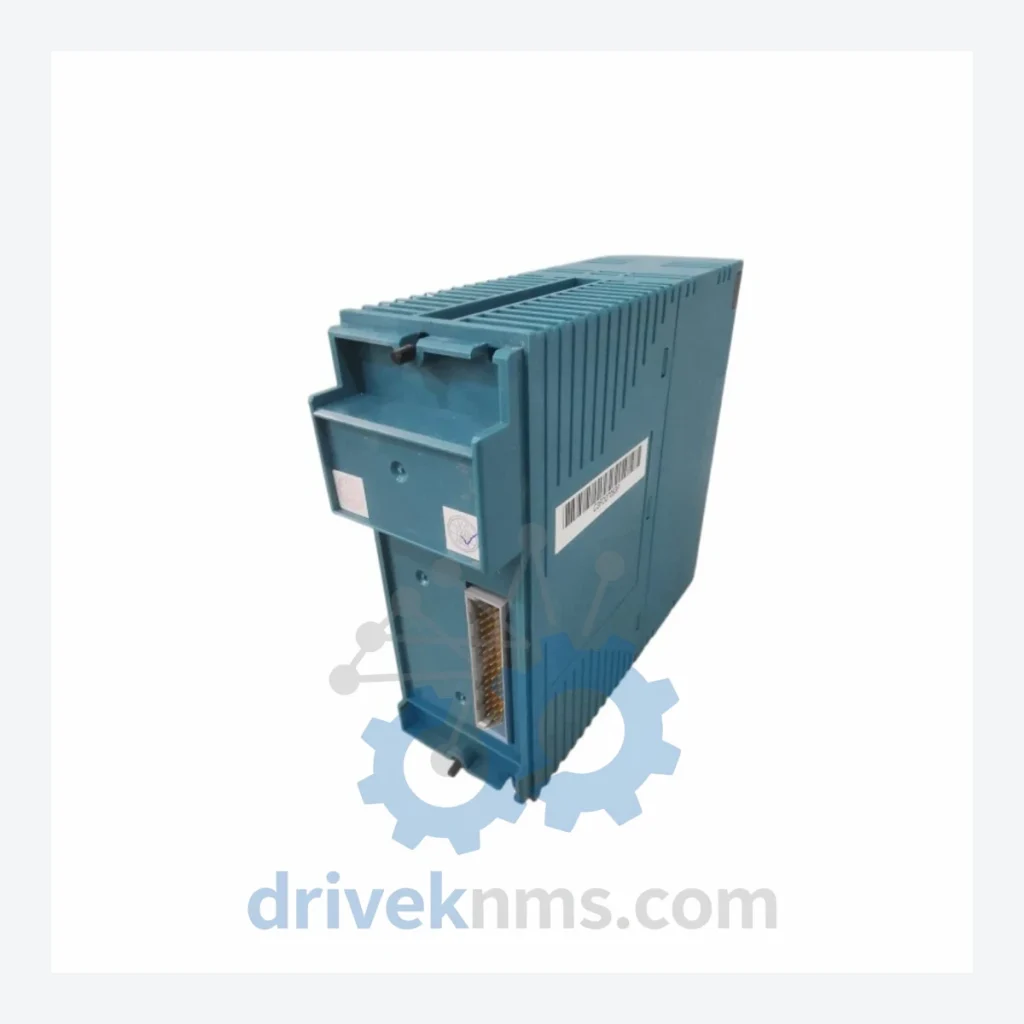

The Yokogawa NFPW series represents the dedicated power supply module family within Yokogawa's CENTUM CS 3000 and CENTUM VP distributed control systems (DCS). These modules are deployed across the most demanding continuous-process industries globally — including petrochemical complexes, nuclear power generation facilities, LNG terminals, offshore platforms, and large-scale refinery operations. The NFPW series provides regulated DC power to field control station (FCS) node units, I/O nest assemblies, and communication bus infrastructure. Their role is foundational: without stable, redundant power delivery, no DCS node can maintain process control integrity. Installed base figures for CENTUM CS 3000 and CENTUM VP systems run into the tens of thousands of nodes worldwide, making NFPW series modules among the most strategically critical spare parts in the industrial automation aftermarket.

The Evolution of NFPW Series Architecture

The NFPW series traces its lineage to Yokogawa's CENTUM CS platform introduced in the mid-1990s, which established the modular, nest-based hardware architecture that persists through CENTUM VP today. Early NFPW variants were designed for single-supply configurations in smaller FCS nodes. As plant sizes scaled and redundancy requirements tightened under IEC 61511 functional safety standards, Yokogawa introduced dual-redundant power supply configurations — allowing two NFPW modules to operate in hot-standby within the same nest, with automatic failover on primary module fault.

The transition from CENTUM CS 3000 (R3.x firmware era) to CENTUM VP (R4.x and R5.x) introduced revised backplane bus voltages and connector keying, meaning NFPW modules are generation-specific and not freely interchangeable across all node types without engineering verification. The NFPW442 sub-family specifically targets the standard field control unit (FCU) and remote node unit (RNU) power requirements at 24 VDC input with regulated 5 VDC and ±15 VDC outputs to the backplane. End-of-life announcements for several CS 3000-era NFPW variants have been issued by Yokogawa, pushing long-term plant operators toward aftermarket sourcing for lifecycle extension beyond the OEM support window.

NFPW Series Full Catalog & Functionalities (SKU List)

The following SKUs represent confirmed members of the Yokogawa NFPW power supply module series, organized by functional sub-category. Each entry reflects a distinct hardware configuration or input/output specification.

Standard Power Supply Modules (Single)

• NFPW441-11: Single power supply module, 100–120 VAC input, for standard FCS nest units
• NFPW441-12: Single power supply module, 200–240 VAC input, for standard FCS nest units
• NFPW442-11: Single power supply module, 24 VDC input, regulated backplane output for FCU/RNU nodes
• NFPW442-12: Single power supply module, 48 VDC input, for telecom-grade DC-powered installations
• NFPW443-11: Single power supply module, wide-range AC input (85–264 VAC), universal voltage variant

Redundant Power Supply Modules

• NFPW451-11: Redundant power supply module, 100–120 VAC input, hot-standby dual configuration
• NFPW451-12: Redundant power supply module, 200–240 VAC input, hot-standby dual configuration
• NFPW452-11: Redundant power supply module, 24 VDC input, for high-availability FCS nodes
• NFPW452-12: Redundant power supply module, 48 VDC input, redundant DC-bus configuration
• NFPW453-11: Redundant power supply module, wide-range AC, for critical process nodes requiring 99.99% uptime

Extended / High-Capacity Power Supply Modules

• NFPW461-11: High-capacity power supply, 100–120 VAC, for expanded I/O nest configurations with elevated current draw
• NFPW461-12: High-capacity power supply, 200–240 VAC, for expanded I/O nest configurations
• NFPW462-11: High-capacity power supply, 24 VDC input, for large remote node units with dense I/O population
• NFPW462-12: High-capacity power supply, 48 VDC input, for DC-powered remote node units
• NFPW471-11: Enhanced power supply module with integrated diagnostics output, 100–120 VAC, for CENTUM VP R5.x nodes
• NFPW472-11: Enhanced power supply module with integrated diagnostics output, 24 VDC, for CENTUM VP R5.x nodes

Quality Control for the NFPW Series Range

NFPW power supply modules present specific test challenges due to their direct interface with the CENTUM backplane bus. DriveKNMS applies a structured test protocol to all NFPW units prior to shipment:

• Input voltage range verification: Each unit is energized across its full rated input range (e.g., 18–32 VDC for 24 VDC-nominal variants) to confirm regulation performance at voltage extremes.
• Output rail measurement: All DC output rails (typically +5 VDC, +15 VDC, −15 VDC, and +24 VDC where applicable) are measured under simulated backplane load using calibrated electronic loads.
• Ripple and noise analysis: Output ripple is measured with an oscilloscope to confirm compliance with Yokogawa's published backplane noise specifications, critical for analog I/O module accuracy.
• Thermal stress test: Units are operated at full rated load for a minimum burn-in period to screen for latent component failures.
• Backplane connector inspection: Gold-contact backplane connectors are inspected under magnification and cleaned to remove oxidation that causes intermittent contact faults in field installations.
• Fault indicator LED verification: Status and fault LEDs are confirmed functional, as these are the primary field diagnostic indicators for maintenance personnel.

All test results are documented and accompany each shipment. Units that do not meet specification at any test stage are quarantined and not released for sale.
