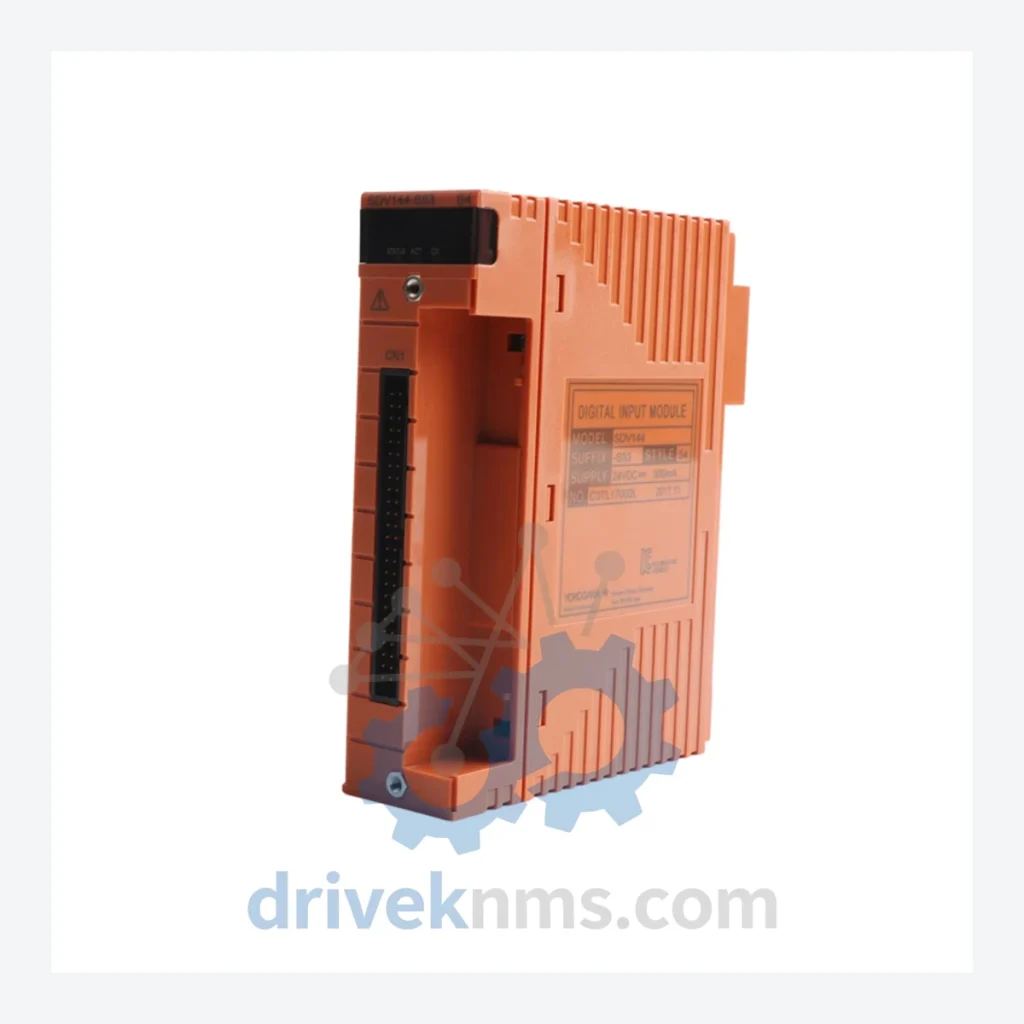

Yokogawa SDV144-S53

Technical Dossier

Product Details And Specifications

Yokogawa SDV Series Technical Notes

The Yokogawa SDV series represents a core I/O module family within the Centum VP and CS 3000 Distributed Control System (DCS) platforms — two of the most widely deployed process automation architectures in global heavy industry. SDV series modules are installed across petrochemical complexes, LNG terminals, nuclear power facilities, offshore platforms, and refinery units where continuous process availability is non-negotiable. The series provides standardized digital signal interfacing between field instrumentation and the Centum VP Field Control Station (FCS), supporting both 24 VDC and 100/110 VAC signal types across a range of channel densities. The SDV144-S53 specifically is a 16-channel digital input module rated for 24 VDC field signals, designed for high-density I/O marshalling in safety-instrumented and process-control environments.

The Evolution of SDV Series Architecture

The SDV module lineage traces back to Yokogawa's CENTUM-XL and CENTUM CS platforms introduced in the 1990s. Early-generation digital I/O modules used parallel backplane communication with fixed-address slot assignment, limiting hot-swap capability and online reconfiguration. With the transition to Centum CS 3000 (released 1998) and subsequently Centum VP (released 2008), Yokogawa migrated the SDV family to a high-speed serial backplane bus (Vnet/IP in VP; ESB bus in CS 3000), enabling online module replacement without process interruption. The SDV144 sub-family introduced a 16-channel density standard that became the dominant I/O footprint for digital marshalling cabinets. The -S53 suffix designates the specific hardware revision and terminal block configuration compatible with the Centum VP FCS node architecture. Compatibility between CS 3000 and Centum VP SDV modules is partial — mechanical form factor is shared, but firmware and bus protocol differ. Engineers migrating from CS 3000 to Centum VP must verify module revision codes before substitution. As of 2024, the SDV series has entered the mature/end-of-active-production phase for several sub-models; Yokogawa's official lifecycle policy classifies many SDV variants as Sustained or Discontinued, making third-party spare parts sourcing critical for long-term plant maintenance contracts.

SDV Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly deployed modules within the Yokogawa SDV and associated Centum VP I/O families, classified by function:

Digital Input (DI) Modules

• SDV144-S53: 16-ch DI, 24 VDC, Centum VP FCS compatible, high-density marshalling
• SDV144-S03: 16-ch DI, 24 VDC, CS 3000 ESB bus variant, earlier hardware revision
• SDV141-S53: 8-ch DI, 24 VDC, reduced-density I/O node for low-signal-count loops
• SDV144-S13: 16-ch DI, 100/110 VAC field signal input, AC-rated marshalling
• SDV541-S53: 16-ch DI with SOE timestamping, 1 ms resolution, event logging

Digital Output (DO) Modules

• SDV244-S53: 16-ch DO, 24 VDC transistor output, Centum VP FCS
• SDV244-S03: 16-ch DO, 24 VDC, CS 3000 compatible revision
• SDV241-S53: 8-ch DO, 24 VDC, low-density digital output node
• SDV244-S13: 16-ch DO, relay contact output, 250 VAC/2A rated
• SDV244-S23: 16-ch DO, relay output with status feedback, dual-coil architecture

Analog Input (AI) Modules

• SAI143-S53: 8-ch AI, 4-20 mA, HART pass-through, Centum VP
• SAI143-S03: 8-ch AI, 4-20 mA, CS 3000 ESB bus variant
• SAI533-S53: 4-ch AI, thermocouple/RTD universal input, cold junction compensated
• SAI143-H53: 8-ch AI, HART 7 enabled, asset management integration

Analog Output (AO) Modules

• SAO143-S53: 8-ch AO, 4-20 mA, Centum VP FCS, loop-powered output
• SAO143-S03: 8-ch AO, 4-20 mA, CS 3000 compatible

Communication & Power Modules

• SCP451-S53: FCS node controller, Centum VP, dual-redundant CPU with Vnet/IP
• SCP401-S53: FCS node controller, single CPU, standard process control
• SPW481-S53: FCS power supply module, 24 VDC redundant, hot-swap capable
• SER181-S53: Serial communication module, RS-232C/RS-485, Modbus RTU gateway

Quality Control for the SDV Series Range

SDV series modules incorporate a multi-layer backplane communication architecture that requires functional validation beyond basic power-on testing. DriveKNMS applies the following test protocol to all SDV series units prior to shipment:

• Backplane Bus Communication Test: Each module is seated in a live Centum VP or CS 3000 test rack and polled via the FCS engineering console to confirm ESB/Vnet bus enumeration and address assignment.
• Channel-Level I/O Verification: All 16 DI channels on SDV144-S53 units are individually stimulated with 24 VDC test signals and confirmed against the FCS I/O diagnostic display. DO modules are verified under rated load conditions.
• Firmware Revision Audit: Module firmware version is read via the engineering workstation and logged against the customer's target system revision to prevent compatibility mismatches.
• Thermal Cycling: Units are cycled through operating temperature range (0-55 degrees C) to screen for intermittent contact failures in terminal blocks and backplane connectors.
• Isolation and Leakage Test: Field-side to logic-side isolation resistance is measured per Yokogawa's published specification (100 MOhm minimum at 500 VDC) to confirm optical isolator integrity.
• Cosmetic and Mechanical Inspection: Backplane connector pins, module locking tabs, and terminal block screws are inspected and refurbished where required.
