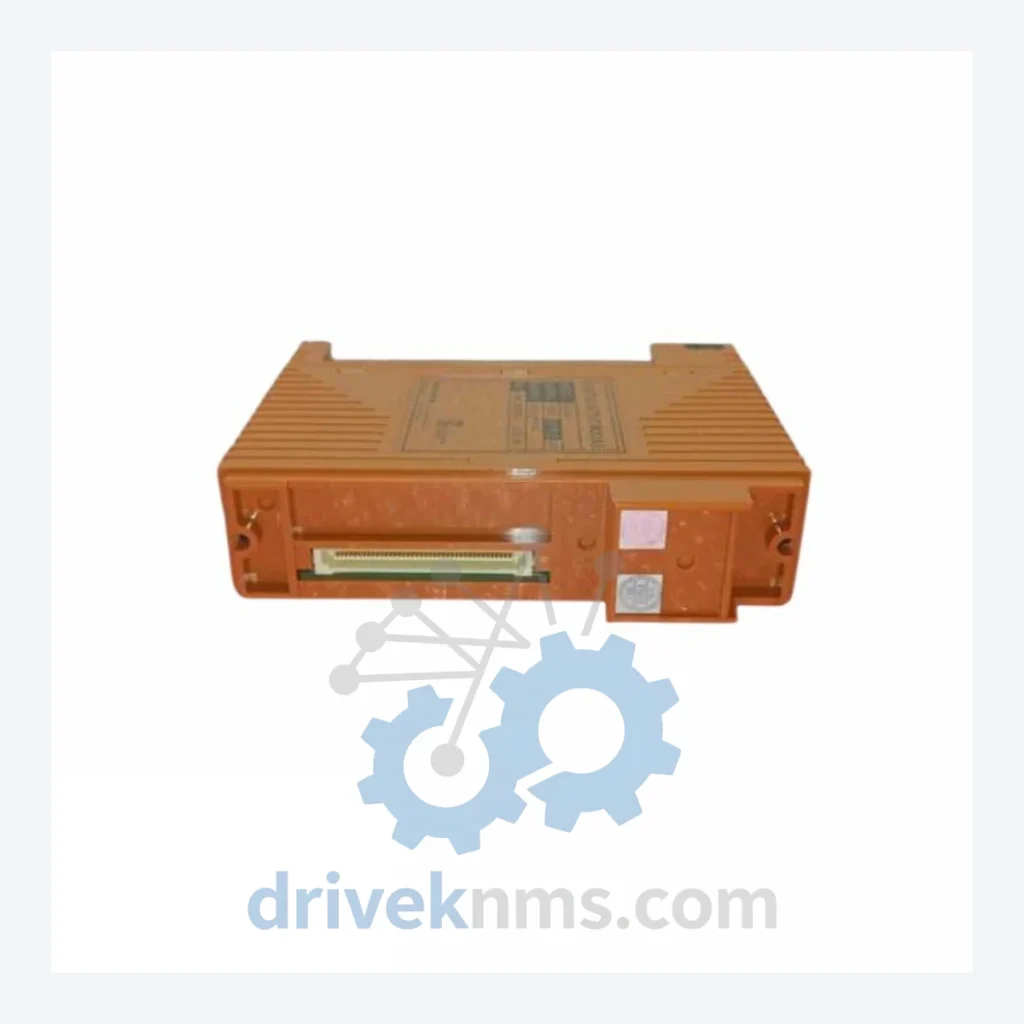

YOKOGAWA SDV541 Modules: SDV541-S53 S3 Digital Output Module

Technical Dossier

Product Details And Specifications

YOKOGAWA SDV541 Series Technical Notes

The YOKOGAWA SDV541 series is a line of digital output (DO) modules designed for deployment within YOKOGAWA's ProSafe-RS Safety Instrumented System (SIS) and CENTUM VP Distributed Control System (DCS) architectures. These modules are installed across critical process industries globally, including petrochemical complexes, LNG terminals, nuclear power facilities, offshore platforms, and refinery control systems. The SDV541 series handles discrete output signaling to field devices such as solenoid valves, motor starters, and shutdown actuators, operating under IEC 61511 functional safety requirements. Their ruggedized backplane design and deterministic scan cycle make them a standard specification in brownfield and greenfield SIS projects across Asia-Pacific, the Middle East, and Europe.

The Evolution of SDV541 Architecture

The SDV541 module family was introduced as part of YOKOGAWA's ProSafe-RS platform, which succeeded earlier safety relay-based systems and first-generation SIS controllers. Early revisions of the SDV541 were designed for compatibility with the ProSafe-RS R1.xx and R2.xx firmware environments, using a proprietary Vnet/IP communication backbone. Subsequent hardware revisions (suffix codes S2, S3, S4) introduced improvements in diagnostic coverage, internal watchdog response time, and EMC compliance to meet IEC 61508 SIL 2/3 certification requirements. The S3 suffix variant — as in the SDV541-S53 S3 — reflects a specific hardware revision level that determines backplane slot compatibility, firmware pairing, and spare part interchangeability. Mixing suffix revisions without engineering validation is not recommended and may affect SIL certification integrity. As ProSafe-RS has matured into a stable/late-lifecycle platform, YOKOGAWA has shifted new project focus toward the ProSafe-RS R4.xx environment, making earlier suffix modules increasingly dependent on secondary market sourcing for maintenance and turnaround support.

SDV541 Full Catalog & Functionalities (SKU List)

The following SKUs represent the verified SDV541 series module range and associated ProSafe-RS I/O catalog. Each entry reflects a distinct hardware configuration or suffix revision:

SDV541-S53 S3: 32-ch digital output module, SIL 2 rated, S3 hardware revision, ProSafe-RS compatible.
SDV541-S53 S2: 32-ch digital output module, S2 hardware revision, earlier backplane generation.
SDV541-S53 S4: 32-ch digital output module, S4 revision, enhanced diagnostic coverage.
SDV541-S03 S3: 16-ch digital output module, standard density, SIL 2, S3 revision.
SDV541-S03 S2: 16-ch digital output module, S2 revision, legacy ProSafe-RS R2.xx pairing.
SAV541-S53 S3: 32-ch analog output module, 4–20 mA, SIL 2, ProSafe-RS I/O bus.
SDV542-S53 S3: 32-ch digital input module, SIL 2, field contact status monitoring.
SDV542-S03 S3: 16-ch digital input module, standard density, SIL 2 rated.
SAI543-S53 S3: 32-ch analog input module, 4–20 mA, HART-capable, SIL 2.
SAI543-S03 S3: 16-ch analog input module, standard density, ProSafe-RS compatible.
SCP451-S10 S3: ProSafe-RS safety controller module, dual-redundant CPU, SIL 3 capable.
SCP451-S10 S2: Safety controller, S2 revision, R2.xx firmware environment.
SNB10D: ProSafe-RS node interface unit, Vnet/IP to I/O bus bridge.
SEB401: ProSafe-RS engineering workstation interface module, USB/Ethernet.
SRM50D: ProSafe-RS remote I/O node module, extended distance field installation.
SWB10D: Vnet/IP network interface card for ProSafe-RS controller nodes.
SCP401-S10: Earlier-generation ProSafe-RS controller, predecessor to SCP451 series.
SDV144-S03: Legacy 16-ch digital output module, ProSafe-RS R1.xx era, fully obsolete.
