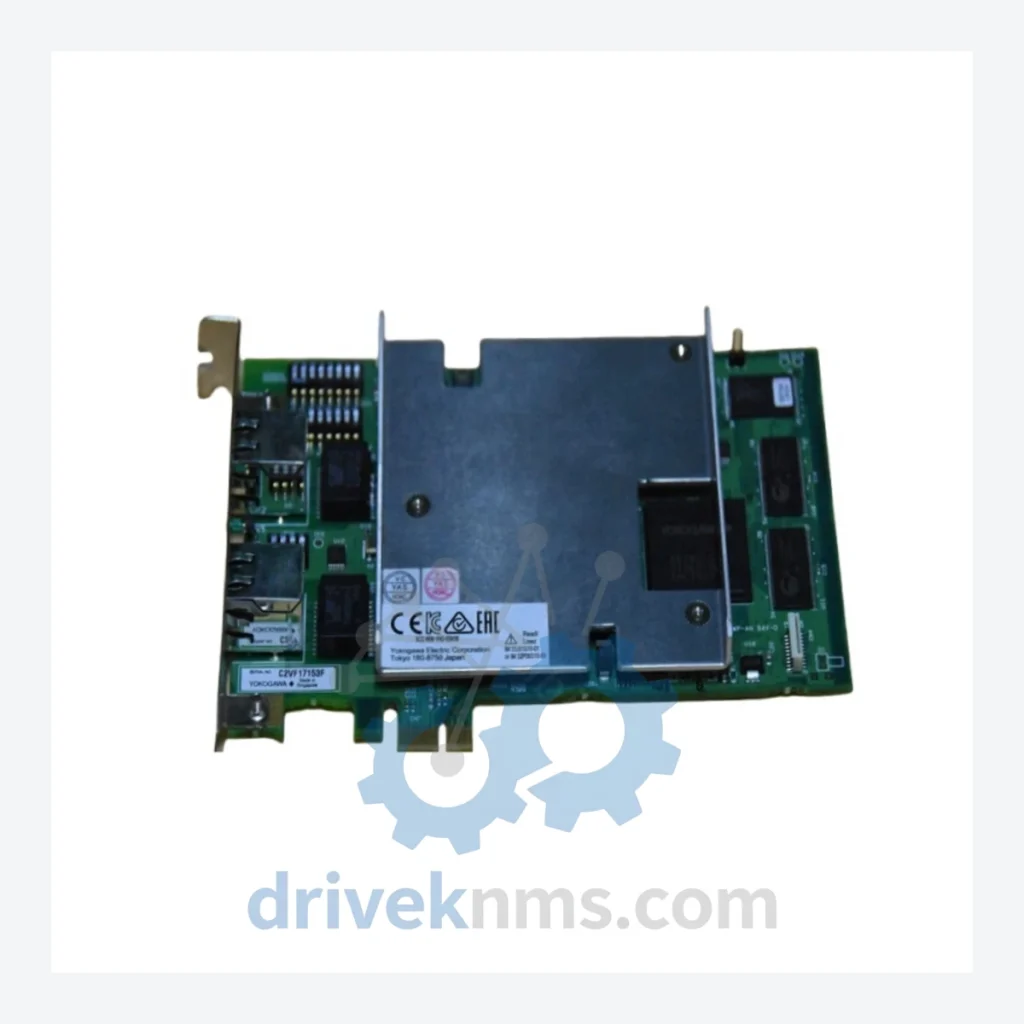

Yokogawa VF311 S1 Interface Card

Technical Dossier

Product Details And Specifications

Yokogawa VF311 Series: Comprehensive Module Range and Technical Overview

The Yokogawa VF311 S1 Interface Card is a field-proven component deployed within Yokogawa's CENTUM CS 3000 and CENTUM VP Distributed Control Systems (DCS). These platforms are the backbone of continuous process control in global heavy industry sectors including petrochemical refining, nuclear power generation, LNG terminals, pulp and paper manufacturing, and offshore oil and gas platforms. The VF311 series occupies a critical position in the I/O bus communication layer, providing the physical and logical interface between field instruments and the DCS controller domain. Its installed base spans facilities across Asia-Pacific, the Middle East, and Europe, with many sites operating units commissioned in the early 2000s that remain in active production today.

The Evolution of VF311 Architecture

The VF311 interface card was introduced as part of Yokogawa's CENTUM CS 3000 platform, which succeeded the earlier CENTUM-XL and μXL systems in the late 1990s. The CS 3000 architecture standardized the V-net/IP communication bus and introduced modular I/O field control stations (FCS). The VF311 served as the interface card within these FCS units, managing data exchange between the process I/O modules and the control bus.

With the release of CENTUM VP (circa 2008), Yokogawa maintained backward compatibility with CS 3000 hardware at the module level, allowing VF311-series cards to remain operational within upgraded VP environments. This cross-generation compatibility is a defining characteristic of the VF311 architecture and a primary reason for its continued demand in the aftermarket. Sites running hybrid CS 3000 / CENTUM VP configurations routinely require VF311 spares to maintain uptime without full system migration.

As CENTUM CS 3000 has entered its end-of-active-support phase, the VF311 series has transitioned from a standard procurement item to a lifecycle-critical spare. Yokogawa's official replacement path points toward CENTUM VP R6 hardware, but capital constraints and process continuity requirements mean that a significant portion of the global installed base will continue operating CS 3000 hardware through the 2030s.

VF311 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the Yokogawa VF311 and closely associated CENTUM CS 3000 / CENTUM VP I/O and interface module range. Each entry reflects a distinct hardware function within the FCS architecture:

VF311 S1: Interface card for CENTUM CS 3000 FCS; manages V-net/IP bus communication between I/O modules and controller.
VF311 S2: Revised hardware revision of VF311 S1; improved EMC tolerance and firmware compatibility with CENTUM VP R4/R5.
VF311 S3: Latest production revision; supports extended diagnostic reporting and is compatible with CENTUM VP R6 environments.
AAI141-S00: Analog input module; 16-channel, 4–20 mA, HART-compatible, used in conjunction with VF311 interface cards.
AAI143-S00: Analog input module; 8-channel isolated, high-accuracy process measurement for critical loop applications.
AAI841-S00: Analog output module; 8-channel, 4–20 mA, for valve positioner and actuator control loops.
ADV151-P00: Digital input module; 32-channel, 24 VDC, for discrete field device status monitoring.
ADV551-P00: Digital output module; 32-channel, 24 VDC, for solenoid valve and relay switching applications.
AMM12W-00: Multi-point monitor module; integrates with FCS for field device health diagnostics.
AIP835-S00: Pulse input module; for flow totalizer and turbine meter signal conditioning.
AOM12W-00: Analog output module; 12-channel, used in legacy CS 3000 FCS configurations.
ACM12W-00: Communication module; supports Modbus RTU/ASCII serial device integration within FCS.
ALR111-S00: Alarm and event logging relay module; interfaces with plant safety and annunciator systems.
AVR10D-S00: Voltage reference module; provides precision reference signals for calibration-critical measurement loops.
AFS10D-S00: Field power supply module; 24 VDC bus power distribution for FCS I/O node assemblies.
APS10D-S00: Power supply module for FCS node; redundant power input configuration support.
ANB10D-S00: Node bus interface module; extends FCS I/O capacity via secondary node bus segment.
VF702 S1: FCS processor card; paired with VF311 interface cards in dual-redundant controller configurations.

Sourcing Hard-to-Find & Obsolete VF311 Parts

DriveKNMS maintains a dedicated inventory program for Yokogawa CENTUM CS 3000 and CENTUM VP components, with specific focus on interface cards and I/O modules that have been discontinued from Yokogawa's standard supply chain. The VF311 S1 and its hardware revisions are sourced through a combination of decommissioned plant buybacks, authorized distributor excess stock, and verified third-party refurbishment channels.

For facilities operating under long-term maintenance agreements or turnaround schedules, DriveKNMS offers consignment stock arrangements and priority reservation for VF311-series cards. All units are catalogued by hardware revision, firmware version where applicable, and physical condition grade prior to listing. Customers requiring documentation packages — including original Yokogawa test records or calibration certificates — should specify this requirement at the time of inquiry.

Lead times for VF311 S1 units vary by market conditions. Customers are advised to contact DriveKNMS with their full bill of materials to allow cross-referencing against current stock and inbound procurement pipelines.

Quality Control for the VF311 Range

Interface cards within the VF311 series present specific testing requirements due to their role in bus communication management. DriveKNMS applies the following verification procedures to all VF311-series units prior to dispatch:

Visual and mechanical inspection: PCB surface examination for corrosion, component damage, and connector pin integrity. Backplane connector contacts are cleaned and inspected under magnification.
Power-on functional test: Unit is energized within a compatible CENTUM CS 3000 or CENTUM VP test bench. Boot sequence, LED status indicators, and self-diagnostic outputs are logged.
V-net/IP bus communication test: Card is placed in an active FCS node and communication with a test controller is verified. Packet error rates and response latency are measured against Yokogawa specification thresholds.
I/O channel verification: Where applicable, associated I/O modules are connected and channel-level signal integrity is confirmed.
Burn-in cycle: Units are operated continuously for a minimum of 24 hours under load conditions to screen for latent component failures.
Final documentation: Each unit is issued a DriveKNMS inspection report recording test results, hardware revision, and dispatch condition.
