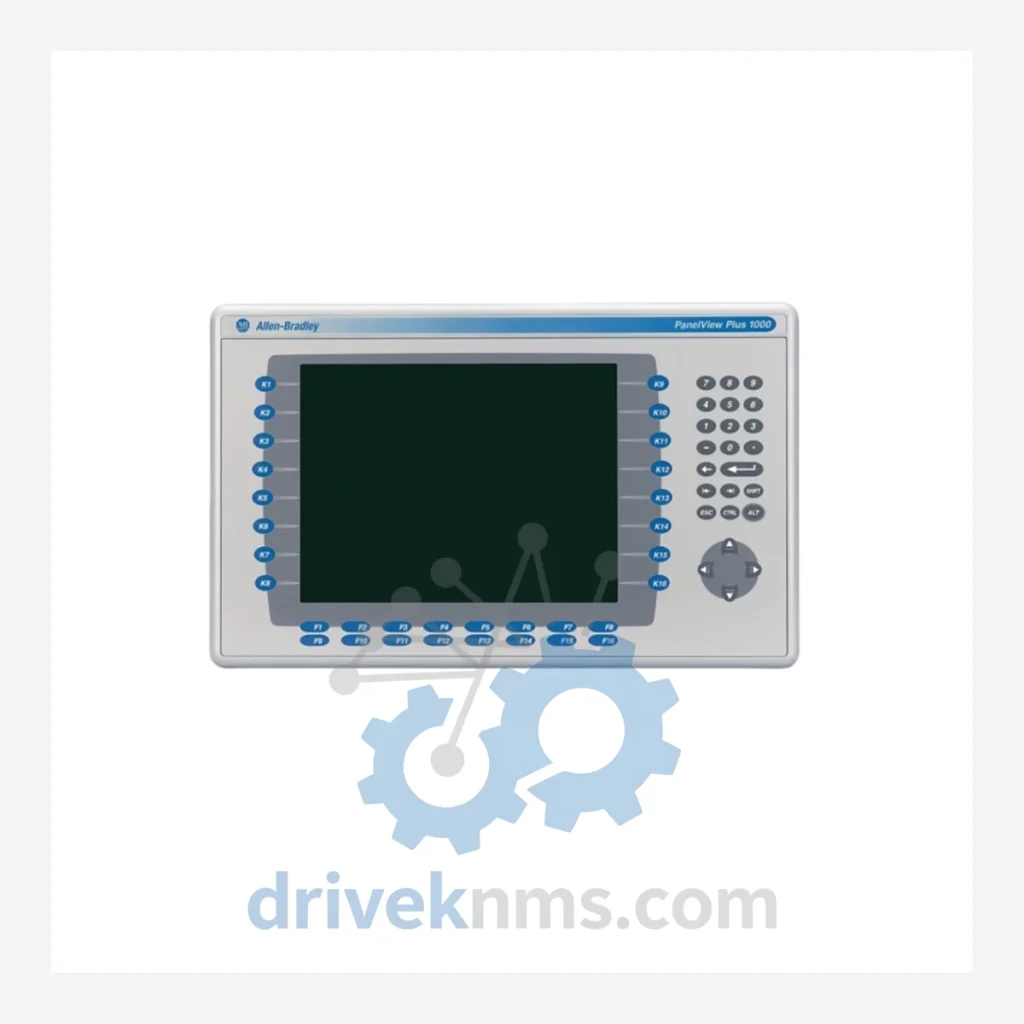

Allen-Bradley 2711P-RDB10C/B Display Module – Obsolete PanelView Plus Spare Part

Technical Dossier

Product Details And Specifications

Allen-Bradley 2711P-RDB10C/B Display Module – Obsolete PanelView Plus Spare Part

A failed HMI display module on a PanelView Plus terminal does not merely halt one machine — it can bring an entire production cell to a standstill. For facilities still operating on Rockwell Automation’s PanelView Plus 6 platform, sourcing a replacement 2711P-RDB10C/B is no longer a routine procurement task. Rockwell Automation has transitioned its HMI portfolio to the PanelView Plus 7 series, rendering the PanelView Plus 6 hardware — including the 2711P-RDB10C/B rear display board — a discontinued component with no direct factory channel.

The cost of a forced migration from PanelView Plus 6 to PanelView Plus 7 is rarely limited to hardware. Engineering hours for panel redesign, PLC program re-validation, operator retraining, and production downtime during cutover routinely push total project costs into the hundreds of thousands of dollars — sometimes exceeding seven figures for multi-terminal installations. Against that backdrop, a verified spare 2711P-RDB10C/B represents a fraction of the cost and a fraction of the risk.

DriveKNMS maintains physical stock of hard-to-find legacy Rockwell components. This is not a brokered listing. Availability is limited and not guaranteed to be replenished.

📩 Obsolete Part – Limited Inventory. Secure your spare now:
Email: sale@driveknms.com | WhatsApp: +86 18359293191

Technical Specifications

Note: Electrical parameters specific to internal board circuitry are not published in Rockwell’s public documentation. DriveKNMS does not fabricate specifications. All units are tested against functional benchmarks prior to dispatch.

Solving the Discontinued Hardware Crisis

The PanelView Plus 6 platform was a cornerstone of Rockwell Automation’s FactoryTalk View ME ecosystem for over a decade. Thousands of installations across food and beverage, automotive, oil and gas, and discrete manufacturing continue to run on this hardware. The 2711P-RDB10C/B rear display board is a wear-prone component — backlight degradation, connector fatigue, and physical impact are the primary failure modes in industrial environments.

When this board fails, the operator interface goes dark. The PLC continues to run, but operators lose visibility and control at the terminal. In safety-critical or high-throughput environments, this triggers an immediate production stop. The standard Rockwell service channel no longer stocks this part. Authorized distributors have exhausted their inventory. The secondary market is the only viable source — and within that market, verified, tested units are scarce.

Facilities that have invested in PanelView Plus 6 infrastructure — custom enclosures, trained operators, validated FactoryTalk ME applications — have a strong economic case for maintaining that infrastructure rather than forcing a platform migration. A single verified spare 2711P-RDB10C/B, held in a maintenance crib, can extend the operational life of a terminal by five to ten years. For a multi-terminal installation, a small buffer stock of two to three units per site eliminates the single point of failure that a discontinued component represents.

This is not a theoretical risk management exercise. It is the difference between a two-hour repair and a six-month capital project.

Condition & Reliability Assurance

DriveKNMS applies a five-step quality process to all legacy display modules before dispatch:

• Visual and mechanical inspection: Connector pins, board traces, and housing integrity are examined for corrosion, physical damage, and pin deformation.
• Electrolytic capacitor assessment: Aging electrolytic capacitors are the leading cause of latent failure in legacy HMI boards. Each unit is inspected for capacitor bulge, leakage, and ESR deviation.
• Firmware and revision verification: Series revision (Series B for this part number) is confirmed against the physical board markings and, where applicable, firmware identifiers.
• Functional power-on test: Units are powered and checked for display signal output and board-level communication integrity.
• Final packaging: Anti-static packaging with desiccant is used for all shipments to prevent transit-related moisture damage.

Units that do not pass all five stages are not listed for sale. DriveKNMS does not mix grades without explicit disclosure.

Key Features for System Maintenance

• Drop-in replacement: The 2711P-RDB10C/B installs directly into compatible PanelView Plus 6 1000-series terminals. No hardware modification is required.
• No reprogramming required: The FactoryTalk View ME application resides on the terminal’s compact flash or internal memory, not on the display board. Replacing the board does not affect the application or PLC communications.
• No engineering rework: Panel wiring, network configuration, and I/O mapping are unaffected. Maintenance technicians familiar with the platform can complete the swap without specialist support.
• Immediate operational restoration: Downtime is limited to the physical swap and reboot cycle — typically under two hours for a prepared maintenance team.
• Capital expenditure avoidance: Maintaining the existing PanelView Plus 6 infrastructure defers a platform migration project that carries significant engineering, procurement, and validation costs.

FAQ

What warranty applies to a discontinued part?
DriveKNMS provides a 90-day functional warranty on all tested legacy components. This covers failure under normal operating conditions. Physical damage caused by installation error or environmental factors is excluded.

How do I confirm the unit is genuine and not counterfeit?
All units sourced by DriveKNMS are inspected for authentic Rockwell Automation markings, correct series revision labels, and board-level construction consistent with genuine Allen-Bradley manufacturing. We do not source from unverified channels. Customers may request inspection photographs prior to purchase.

Should I buy more than one unit?
For any facility operating more than two PanelView Plus 6 terminals of this size, holding a minimum of one spare 2711P-RDB10C/B per site is a defensible maintenance strategy. As secondary market availability continues to decline, procurement windows will narrow. Bulk inquiries are welcome.

Can this part be used with FactoryTalk View ME version 8 or later?
Compatibility depends on the terminal firmware and the FactoryTalk View ME version deployed. DriveKNMS recommends confirming your terminal’s current firmware revision before installation. We can advise based on your specific configuration — contact us directly.

What is the lead time?
In-stock units ship within 2 business days of payment confirmation. International shipping timelines vary by destination. Contact us for a freight estimate.
