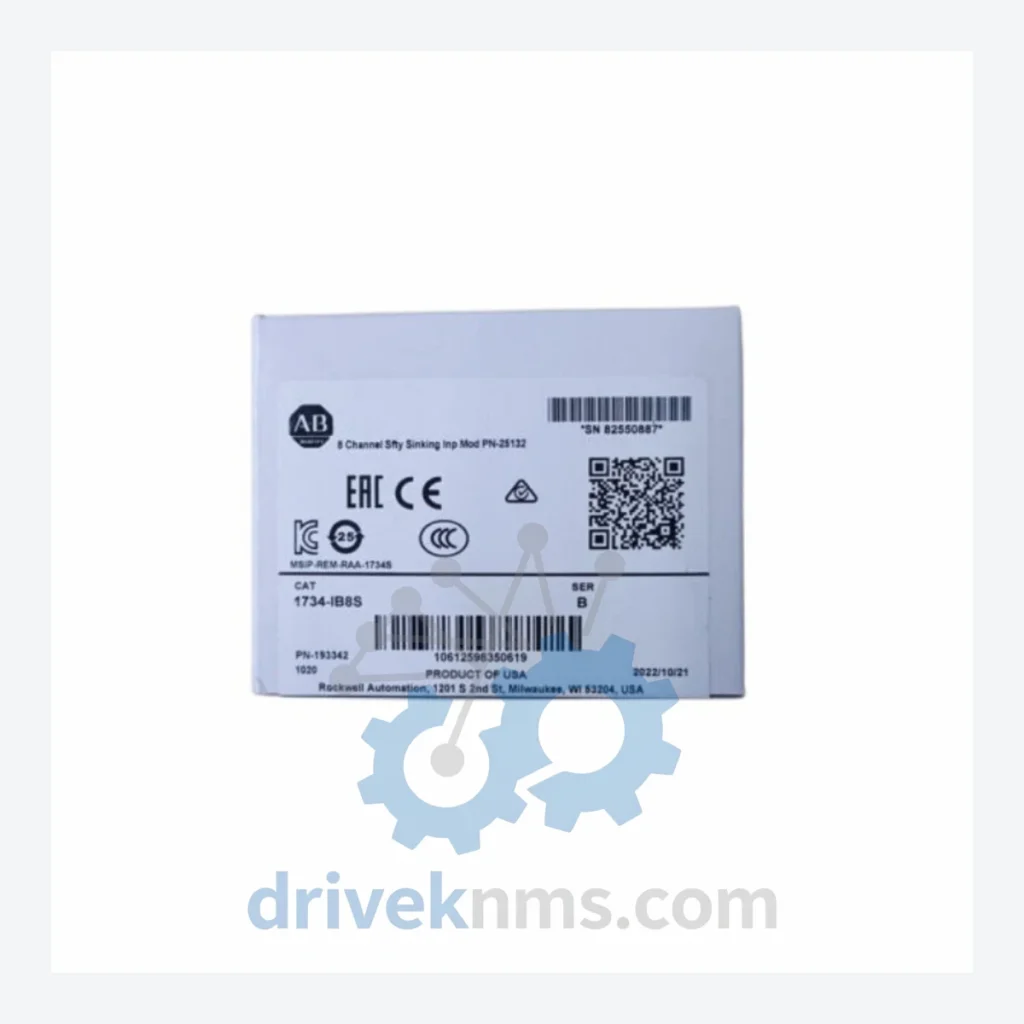

Allen-Bradley 1734 POINT I/O Modules: 1734-IB8S Digital Input Module

Technical Dossier

Product Details And Specifications

Allen-Bradley 1734 POINT I/O Series Technical Notes

The Evolution of 1734 POINT I/O Architecture

The 1734 POINT I/O platform was introduced in the late 1990s as Rockwell Automation's answer to the demand for distributed, node-level I/O in space-constrained panel environments. First-generation modules communicated exclusively over DeviceNet (1734-ADN adapter). Subsequent revisions introduced ControlNet (1734-ACN/ACNR) and EtherNet/IP (1734-AENT/AENTR) adapters, enabling the platform to migrate into modern Ethernet-centric architectures without replacing field wiring or terminal bases.

The introduction of the 1734-AENTR (dual-port EtherNet/IP with Device Level Ring support) marked the platform's transition into high-availability topologies required by SIL-rated process environments. Firmware revisions across adapter generations introduced CIP Safety extensions, allowing safety-rated I/O modules (1734-IB8S, 1734-OB8S) to coexist on the same backplane as standard modules — a critical cost-reduction factor for machine builders targeting IEC 62061 and ISO 13849 compliance.

As of 2024, several first- and second-generation 1734 modules have entered the Rockwell Automation End of Life (EOL) or Last Time Buy (LTB) phase. Facilities operating legacy DeviceNet-based 1734 nodes face increasing difficulty sourcing replacement adapters and specialty analog modules. DriveKNMS maintains RFQ-reviewed sourcing status of both active and discontinued 1734 variants to support lifecycle extension programs.

1734 POINT I/O Full Catalog & Functionalities (SKU List)

Safety Digital I/O

• 1734-IB8S: 8-point 24V DC safety-rated digital input module, SIL 2 / PLd certified, dual-channel input pairs for safety function monitoring.
• 1734-OB8S: 8-point 24V DC safety-rated digital output module, SIL 2 / PLd, solid-state sourcing outputs with diagnostic feedback.

Standard Digital Input Modules

• 1734-IB8: 8-point 24V DC sinking digital input, standard density, 3-wire sensor compatible.
• 1734-IB16: 16-point 24V DC sinking digital input, high-density, shared commons per 8-point group.
• 1734-IA8: 8-point 120V AC digital input module, for legacy AC field device integration.
• 1734-IV8: 8-point 10–30V DC sourcing (PNP) digital input module.

Standard Digital Output Modules

• 1734-OB8: 8-point 24V DC sourcing digital output, 0.5A per point, solid-state.
• 1734-OB8E: 8-point 24V DC sourcing output with electronic fusing and diagnostic per point.
• 1734-OA8: 8-point 120/240V AC triac output module, zero-crossing switching.
• 1734-OW4: 4-point relay output module, Form A contacts, 2A per point, AC/DC load compatible.

Analog I/O Modules

• 1734-IE2C: 2-channel current (4–20 mA) analog input, 16-bit resolution, HART pass-through capable.
• 1734-IE2V: 2-channel voltage (0–10V / ±10V) analog input, 16-bit resolution.
• 1734-OE2C: 2-channel current (4–20 mA) analog output, 16-bit resolution.
• 1734-OE2V: 2-channel voltage analog output, 0–10V / ±10V selectable.
• 1734-IR2: 2-channel RTD/resistance input module, supports PT100, PT1000, Ni120.
• 1734-IT2I: 2-channel isolated thermocouple input, supports J, K, T, E, R, S, B types.

Communication Adapters

• 1734-AENT: Single-port EtherNet/IP adapter, supports up to 63 I/O modules per node.
• 1734-AENTR: Dual-port EtherNet/IP adapter with DLR (Device Level Ring) support for redundant topologies.
• 1734-ADN: DeviceNet adapter, legacy installations, up to 63 modules per node.
• 1734-ACNR: ControlNet adapter with redundant media support.

Power & Infrastructure

• 1734-EP24DC: 24V DC power supply expansion module, extends power budget across module groups.
• 1734-TOP: Terminal base for standard I/O modules, single-module mounting.
• 1734-TOPS: Terminal base for safety I/O modules (1734-IB8S, 1734-OB8S), keyed to prevent incorrect module insertion.

Sourcing Hard-to-Find & Obsolete 1734 POINT I/O Parts

DriveKNMS specializes in lifecycle extension support for the 1734 POINT I/O platform. As Rockwell Automation progressively transitions legacy DeviceNet and first-generation ControlNet adapter variants to EOL status, facilities running long-lifecycle assets — power generation turbine controls, refinery DCS hybrid architectures, water treatment SCADA nodes — require a reliable source for verified replacement modules outside of OEM channels.

DriveKNMS maintains physical inventory of discontinued 1734 variants including 1734-ADN, 1734-ACN, early-revision 1734-IE2C (Series A), and select analog specialty modules. All units sourced from decommissioned plant equipment undergo full functional restoration before listing. Customers operating under IEC 61511 functional safety management systems can request traceability documentation packages for safety-rated modules (1734-IB8S, 1734-OB8S) including test records and firmware revision confirmation.

Quality Control for the 1734 POINT I/O Range

The 1734 platform presents specific test challenges due to its backplane bus architecture: each module communicates with the adapter via a proprietary POINT Bus protocol, and faults in bus termination or module keying can produce intermittent diagnostic errors that are difficult to replicate outside of a live rack environment. DriveKNMS operates dedicated 1734 test benches configured with 1734-AENTR adapters and ControlLogix L7x controllers running current Studio 5000 firmware.

Test procedures for each 1734 module include: power-on self-test (POST) verification, CIP identity object interrogation to confirm firmware revision and module catalog number, point-level I/O functional test (all input channels stimulated, all output channels loaded and measured), and for safety modules (1734-IB8S, 1734-OB8S), dual-channel discrepancy detection and safety function response time measurement per IEC 61508-2 test requirements. Analog modules (1734-IE2C, 1734-OE2C, 1734-IR2, 1734-IT2I) are calibrated against NIST-traceable references with full-scale linearity and offset error recorded.
