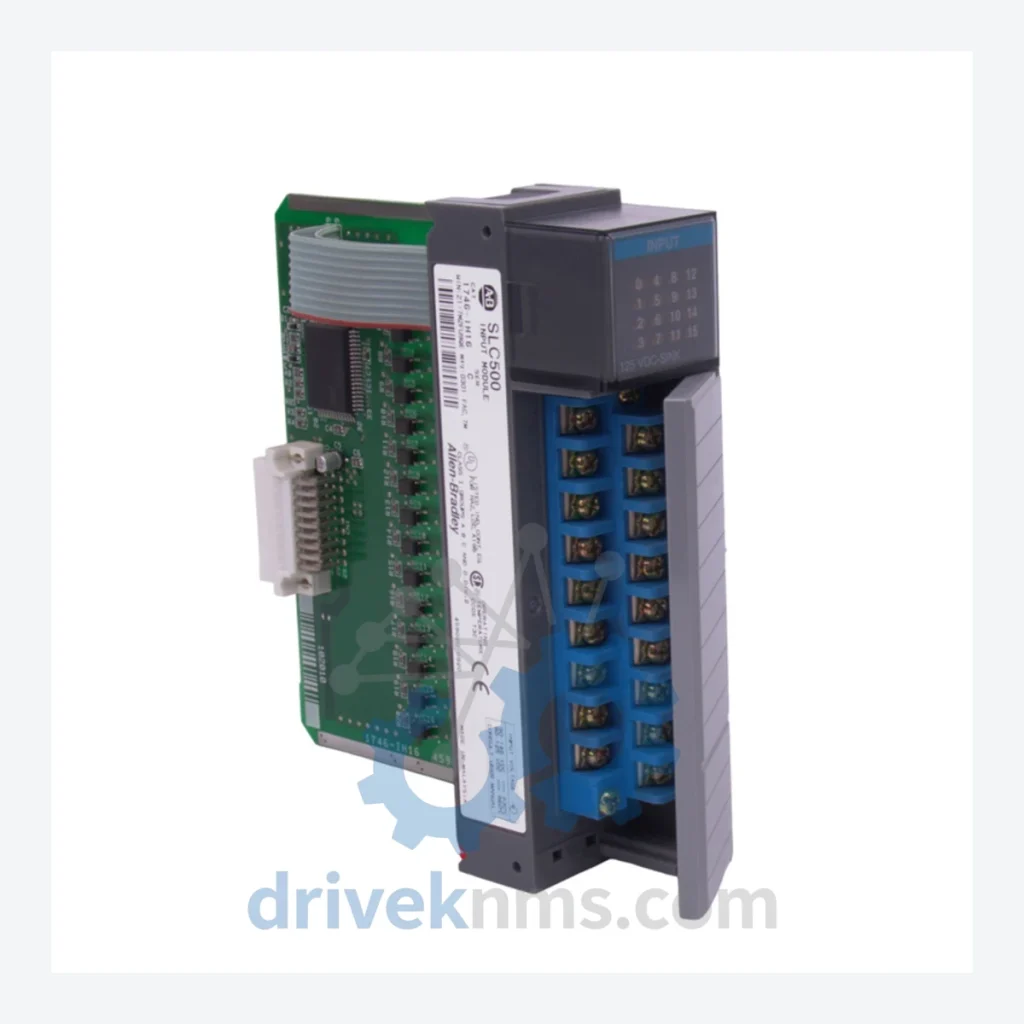

Allen-Bradley 1746-IO12 Combination I/O Module – Obsolete SLC 500 Spare Part

Technical Dossier

Product Details And Specifications

Allen-Bradley 1746-IO12 Combination I/O Module – Obsolete SLC 500 Spare Part

When a 1746-IO12 module fails in a running SLC 500 line, the clock starts immediately. A full platform migration from SLC 500 to a current ControlLogix or CompactLogix architecture — including engineering hours, new hardware, I/O rewiring, program conversion, operator retraining, and production downtime — routinely exceeds $500,000 USD for a mid-size facility. That figure does not account for lost throughput during the transition period, which can stretch six to eighteen months. The 1746-IO12 is a discontinued module. Rockwell Automation ended active production of the SLC 500 platform. Authorized distributors have exhausted their pipeline stock. What remains in the market is finite, and each passing quarter that supply shrinks further.

DriveKNMS maintains verified physical inventory of the 1746-IO12. This is not a broker listing or a drop-ship arrangement. The units we quote are on our shelf, inspected, and ready to ship.

Technical Specifications

Solving the Discontinued Hardware Crisis

The SLC 500 platform was the backbone of North American discrete manufacturing for over two decades. Thousands of facilities — food and beverage, automotive stamping, pharmaceutical packaging, water treatment — built their control architecture around it. The 1746-IO12 sits at the intersection of that architecture: a single module handling both input sensing and output switching, reducing slot consumption in constrained chassis configurations.

When Rockwell discontinued the SLC 500 line, it did not simultaneously provide a cost-neutral migration path. The replacement platforms require different chassis, different power supplies, different communication cards, and — critically — a complete rewrite of ladder logic programs that may have accumulated fifteen or twenty years of undocumented field modifications. For a plant manager facing a quarterly production target, authorizing that migration is not a decision made lightly.

The practical alternative is asset life extension through strategic spare parts procurement. A single 1746-IO12 held in a climate-controlled spare parts cabinet costs a fraction of one hour of unplanned downtime. For facilities operating three shifts, that calculus is straightforward. The module is a direct drop-in replacement: same slot, same wiring, same program — no engineering intervention required beyond the physical swap.

Industry maintenance data consistently shows that targeted spare parts investment can extend the operational life of a legacy automation platform by five to ten years beyond the manufacturer's end-of-life date. The condition is that critical single-point-of-failure modules — exactly the category the 1746-IO12 occupies — are available when needed. Waiting until failure to source obsolete parts is the highest-cost procurement strategy available.

Condition & Reliability Assurance

Obsolete modules sourced from secondary markets carry real risk. Electrolytic capacitor degradation, firmware version mismatches, and terminal corrosion are the three failure modes that most frequently cause field returns of aged industrial electronics. Our incoming inspection process addresses each directly.

• Step 1 – Visual and mechanical inspection: Housing integrity, connector condition, and label verification against the part number.
• Step 2 – Electrolytic capacitor assessment: ESR measurement on all accessible bulk capacitors. Units showing elevated ESR are quarantined regardless of cosmetic condition.
• Step 3 – Firmware version verification: Where applicable, firmware revision is confirmed and documented against known compatible versions for the SLC 500 platform.
• Step 4 – Terminal and pin corrosion inspection: All I/O terminals and backplane connector pins are examined under magnification. Oxidation is treated; severe corrosion results in rejection.
• Step 5 – Functional power-on test: Module is seated in a test chassis and powered. Input and output channels are individually verified before the unit is cleared for sale.

Key Features for System Maintenance

• Drop-in replacement: The 1746-IO12 installs directly into any open 1746 chassis slot. No hardware modifications to the rack or backplane are required.
• No reprogramming required: The SLC 500 processor recognizes the module by slot address. Existing ladder logic referencing those I/O addresses continues to function without modification.
• Avoids engineering reconstruction costs: A platform migration project requires a controls engineer to audit, convert, and validate the entire program. A spare module swap requires a maintenance technician and thirty minutes.
• Protects validated processes: In regulated industries — pharmaceutical, food processing — a platform change triggers revalidation. Maintaining the existing hardware preserves the validated state of the process.
• Reduces unplanned downtime exposure: Holding a spare on-site converts a potential multi-week sourcing delay into a same-shift recovery.

FAQ

What warranty applies to a discontinued module?
We provide a 12-month warranty against functional failure under normal operating conditions. This covers defects identified through our QA process that manifest in service. It does not cover damage from incorrect installation or electrical overstress.

How do I know the unit is genuine and not counterfeit?
All units are inspected against known-good reference units for label format, PCB markings, and component population. We do not source from regions or channels with documented counterfeit activity for this part number. Documentation of our inspection record is available on request.

Should I buy more than one unit?
For any facility with more than one SLC 500 chassis, holding a minimum of two 1746-IO12 spares is a defensible maintenance position. The module is used across multiple chassis configurations, and a second failure before a replacement can be sourced is a realistic scenario given current market supply. Long-term spare parts programs — holding three to five units against a five-to-ten-year operational horizon — are the approach taken by facilities that have successfully avoided forced platform migrations.

Can you source other SLC 500 modules?
Yes. DriveKNMS maintains inventory across the 1746 and 1747 product families. Contact us with your full bill of materials for a consolidated quote.
