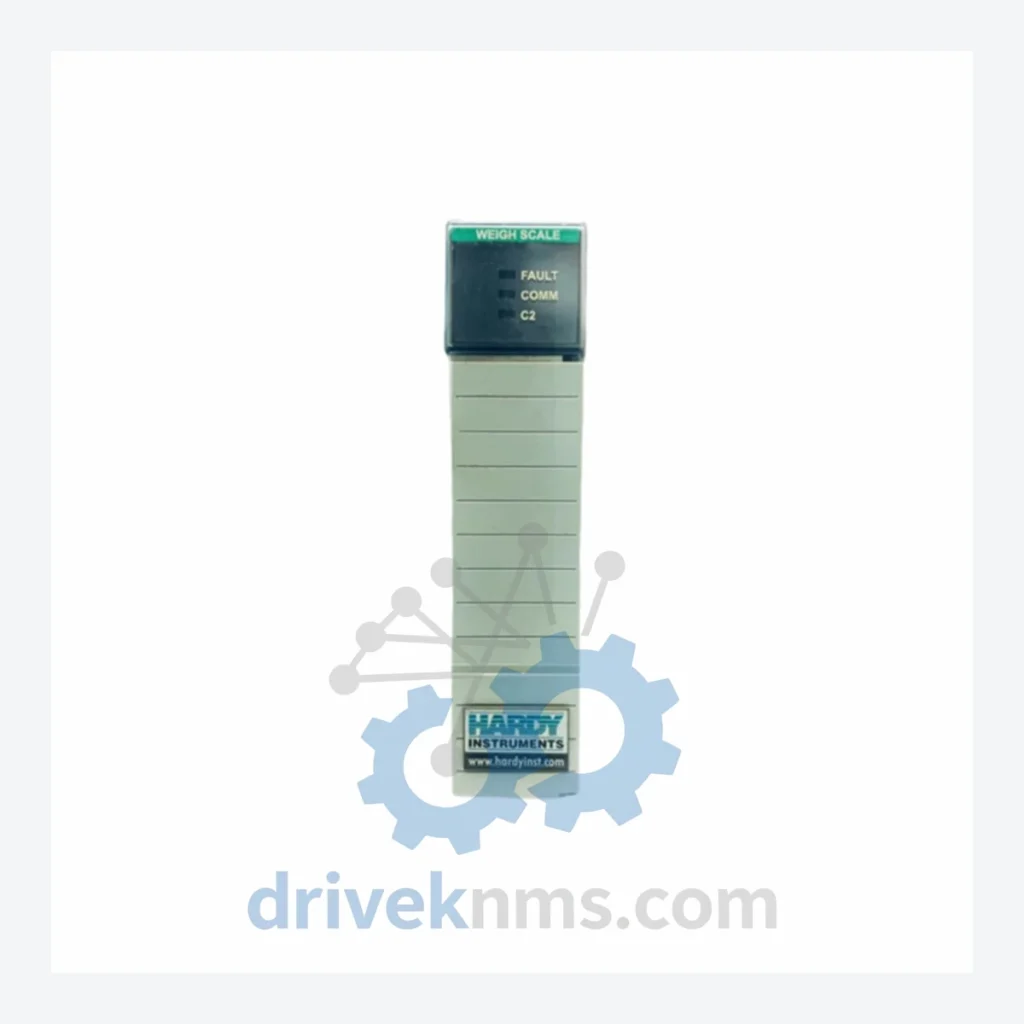

HARDY 1746-WS Weigh Scale Module – Obsolete SLC 500 Spare Part

Technical Dossier

Product Details And Specifications

HARDY 1746-WS Weigh Scale Module – Obsolete SLC 500 Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters not confirmed from official datasheets are intentionally omitted. Specifications above are drawn from verified product documentation only.

Solving the Discontinued Hardware Crisis

The Allen-Bradley SLC 500 platform was the dominant mid-range PLC architecture across North American and European manufacturing from the late 1980s through the 2000s. Hundreds of thousands of SLC 500 systems remain in active service today — not because plant managers are unaware of newer platforms, but because the cost and risk of migration consistently outweigh the operational status quo. The 1746-WS sits at a particularly critical node within these systems: it handles legal-for-trade and process weighing, a function that directly governs product quality, regulatory compliance, and batch accuracy.

Rockwell Automation officially discontinued the SLC 500 product line, and Hardy Process Solutions has similarly ended production of the 1746-WS. No authorized channel stocks new units. When this module fails, the options narrow to three: locate a verified spare from a specialist distributor, execute an emergency platform migration, or halt production. The first option costs hundreds of dollars. The second costs hundreds of thousands. The third costs both money and customer relationships. DriveKNMS exists precisely to make the first option available when standard channels cannot.

Condition & Reliability Assurance

Every 1746-WS unit that leaves our facility passes a structured 5-step quality process designed specifically for legacy industrial hardware:

• Step 1 – Electrolytic Capacitor Inspection: Aging electrolytic capacitors are the primary failure mode in modules of this era. Each unit is inspected for bulging, leakage, and ESR deviation. Units with suspect capacitors are either recapped with equivalent-spec components or rejected.
• Step 2 – Firmware Version Verification: The installed firmware revision is confirmed and documented. Compatibility with the target SLC 500 processor revision is verified before dispatch review.
• Step 3 – Pin and Connector Corrosion Audit: Backplane connector pins are inspected under magnification for oxidation, mechanical deformation, and contact resistance. Corroded pins are treated or the unit is rejected.
• Step 4 – Functional Power-On Test: The module is powered and tested for correct initialization and communication response on a live SLC 500 test rack.
• Step 5 – Documentation and Traceability: Each unit ships with a condition report. New-in-box units are documented as such; refurbished units carry a full refurbishment record.

Key Features for System Maintenance

• Drop-in replacement: The 1746-WS installs directly into any open SLC 500 single-slot position. No chassis modification, no wiring changes.
• No reprogramming required: The module communicates via the standard SLC 500 I/O map. Existing ladder logic addressing is preserved without modification.
• Avoids engineering reconstruction costs: A platform migration requires P&ID updates, safety re-validation, operator retraining, and weeks of commissioning. A direct spare eliminates all of that.
• Extends asset life by 5–10 years: A single verified spare, combined with a preventive maintenance schedule, can sustain a functioning SLC 500 weighing system well beyond its nominal end-of-life date. For operations running 24/7 shifts, this translates directly to deferred capital expenditure and uninterrupted production throughput.
• Regulatory continuity: For facilities operating under FDA, USDA, or OIML legal-for-trade requirements, replacing a like-for-like module avoids the re-validation burden that a platform change would trigger.

Extending Automation Asset Life: A Maintenance Strategy for Plant Management

The pressure to retire legacy systems is real, but the timeline is rarely as urgent as vendors suggest. A structured spare parts strategy can extend the productive life of an SLC 500-based weighing system by 5 to 10 years at a fraction of the cost of migration. The following principles apply directly to the 1746-WS and similar legacy I/O modules:

Q: How do I know the unit is genuine and not counterfeit?
A: All units are sourced from verified industrial surplus channels and inspected against known-good reference units. Counterfeit detection is part of our intake process. We do not source from unverified secondary markets.

Q: Is the unit compatible with all SLC 500 chassis sizes?
A: The 1746-WS is designed for the 1746 series SLC 500 backplane. Compatibility with your specific chassis and processor revision should be confirmed against your existing system documentation before ordering.
