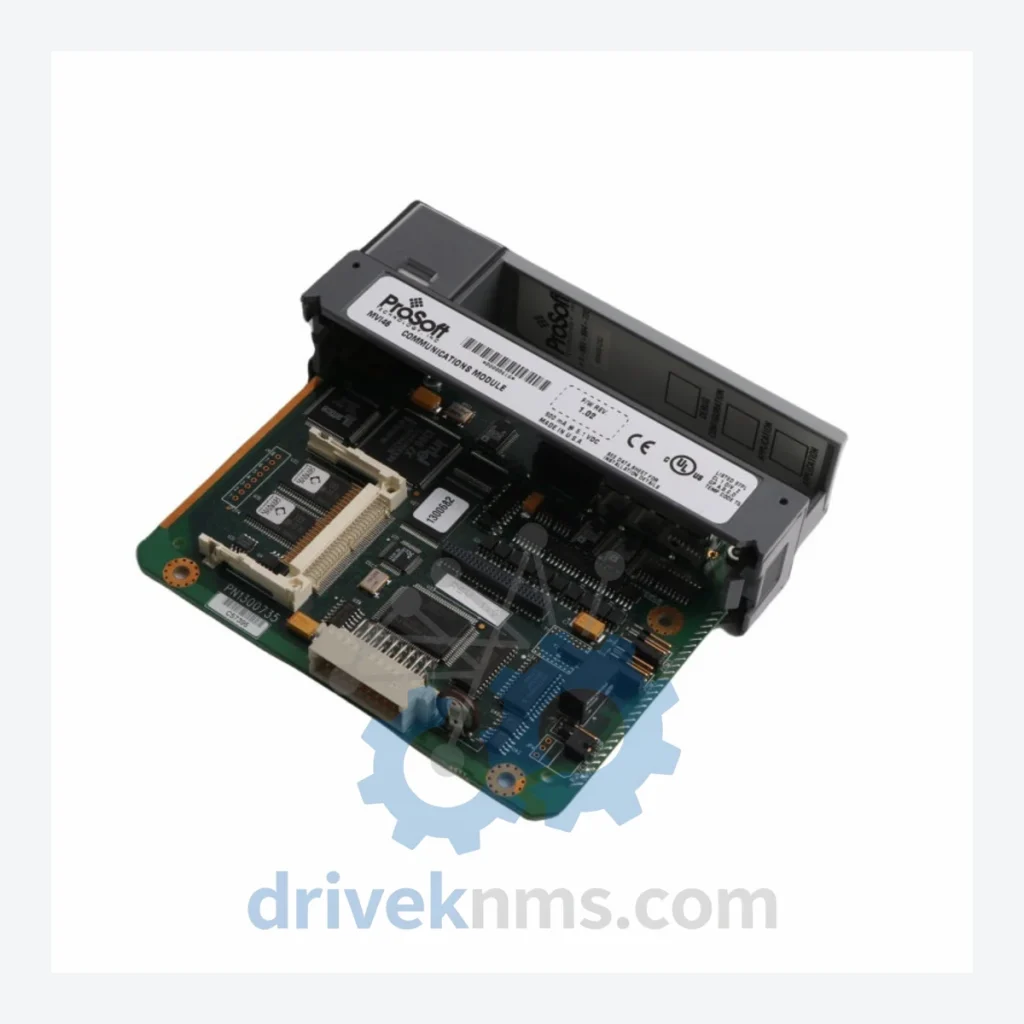

ProSoft MVI46-GSC Serial Communication Module – Obsolete SLC 500 Spare Part

When the MVI46-GSC fails on an Allen-Bradley SLC 500 rack, the consequences extend far beyond a single module replacement. This card is the serial communication backbone of countless legacy SCADA and process control architectures built in the 1990s and 2000s. A single unplanned failure can halt an entire production line. Sourcing a direct replacement through standard distribution channels is no longer possible — ProSoft Technology has discontinued this product, and authorized channel stock was exhausted years ago.

For plant managers facing the choice between a multi-million dollar control system migration and a targeted spare part procurement, the economics are not ambiguous. A full SLC 500 platform upgrade — including engineering, commissioning, operator retraining, and production downtime — routinely exceeds USD $500,000 to $2,000,000 depending on system complexity. DriveKNMS maintains verified physical inventory of the MVI46-GSC for exactly this scenario.

Technical Specifications

Solving the Discontinued Hardware Crisis

The Allen-Bradley SLC 500 platform was the dominant mid-range PLC architecture across North American and Asian manufacturing from the late 1980s through the 2000s. Tens of thousands of these systems remain in active production service today — running pharmaceutical batch processes, water treatment facilities, automotive sub-assembly lines, and food packaging operations.

The MVI46-GSC occupies a specific and non-trivial role within these architectures: it provides the SLC 500 processor with the ability to communicate over serial protocols to third-party devices — barcode readers, weigh scales, vision systems, legacy HMI panels, and custom instrumentation — that do not speak native Allen-Bradley DF1 or DH+. Without this module, the integration layer between the PLC and peripheral devices collapses entirely.

Rockwell Automation's official end-of-life position on the SLC 500 platform means that migration pressure is real. However, migration timelines in heavy industry are measured in years, not months. Engineering resource constraints, capital budget cycles, and the risk of production disruption during cutover mean that most facilities will continue operating SLC 500 systems well into the 2030s. Maintaining a verified spare of the MVI46-GSC is not a workaround — it is a deliberate asset protection strategy that buys the engineering team the time required to execute a controlled, properly funded migration rather than an emergency one.

Facilities that have adopted a structured obsolete-parts inventory program for their SLC 500 infrastructure consistently report the ability to extend operational asset life by 5 to 10 years beyond the original end-of-life date. The cost of maintaining two or three critical spare modules is a fraction of one day of unplanned downtime in most production environments.

Condition & Reliability Assurance

Sourcing discontinued industrial hardware from the secondary market carries legitimate risk. DriveKNMS applies a structured 5-step inspection protocol to every MVI46-GSC unit before it is offered for sale:

• Step 1 – Visual and Physical Inspection: Full board-level inspection for physical damage, corrosion on edge connectors and pin headers, and evidence of prior field repair or component substitution.
• Step 2 – Electrolytic Capacitor Assessment: Electrolytic capacitors are the primary age-related failure point on modules of this vintage. Each unit is inspected for capacitor bulging, electrolyte leakage, and ESR deviation. Units with degraded capacitors are either recapped by qualified technicians or removed from saleable inventory.
• Step 3 – Firmware Version Verification: Where accessible, firmware revision is documented and disclosed. Compatibility with specific SLC 500 processor firmware revisions is confirmed where records are available.
• Step 4 – Functional Communication Test: Serial port functionality is verified using protocol test equipment. Both ports are tested for correct signal levels on RS-232, RS-422, and RS-485 configurations.
• Step 5 – Final Documentation and Packaging: Each unit is packaged in anti-static materials with a condition report. New units are shipped in original or equivalent sealed packaging. Refurbished units are clearly labeled with condition grade and inspection date.

Key Features for System Maintenance

• Drop-in Replacement: The MVI46-GSC installs directly into any open SLC 500 1746 chassis slot. No hardware modification to the rack or backplane is required.
• No Reprogramming Required: Existing ladder logic rungs that interface with the module's input/output image table remain fully compatible. Configuration files developed for the original unit can be transferred directly to the replacement module via the ProSoft Configuration Builder utility, where applicable.
• Avoids Engineering Reconstruction Costs: A forced migration from SLC 500 to a current-generation ControlLogix or CompactLogix platform requires complete I/O remapping, ladder-to-structured-text conversion, and full Factory Acceptance Testing. Replacing the MVI46-GSC with a verified spare eliminates this cost entirely for the duration of the asset's remaining service life.
• Preserves Validated Process Logic: In regulated industries — pharmaceutical, food and beverage, medical device manufacturing — replacing a PLC platform triggers revalidation requirements under FDA 21 CFR Part 11 or equivalent frameworks. Maintaining the existing hardware avoids this regulatory burden.

FAQ

Q: What warranty applies to a discontinued module like the MVI46-GSC?
A: DriveKNMS provides a 90-day functional warranty on all tested units. New-in-box units carry a 12-month warranty. Warranty terms are confirmed in writing at the time of purchase.

Q: How do I know the unit is genuine and not a counterfeit?
A: All units are inspected against known-good reference hardware for board markings, component layout, and label authenticity. ProSoft Technology modules have well-documented physical characteristics that allow experienced technicians to identify non-genuine units. Our inspection process includes this verification step.

Q: Should we purchase more than one unit as a long-term spare?
A: For any SLC 500 system that is expected to remain in service for more than 24 months, holding a minimum of one additional MVI46-GSC as a cold spare is a standard risk mitigation practice. Given that secondary market availability of this module is finite and declining, procurement delay increases both price risk and availability risk. Facilities with multiple SLC 500 racks using this module should consider a proportional sparing strategy.

Q: Can DriveKNMS source additional quantity if we need more than one unit?
A: Contact us with your quantity requirement. We maintain relationships with verified secondary market sources globally and can often fulfill multi-unit orders. Lead time and pricing are confirmed on a per-inquiry basis.
