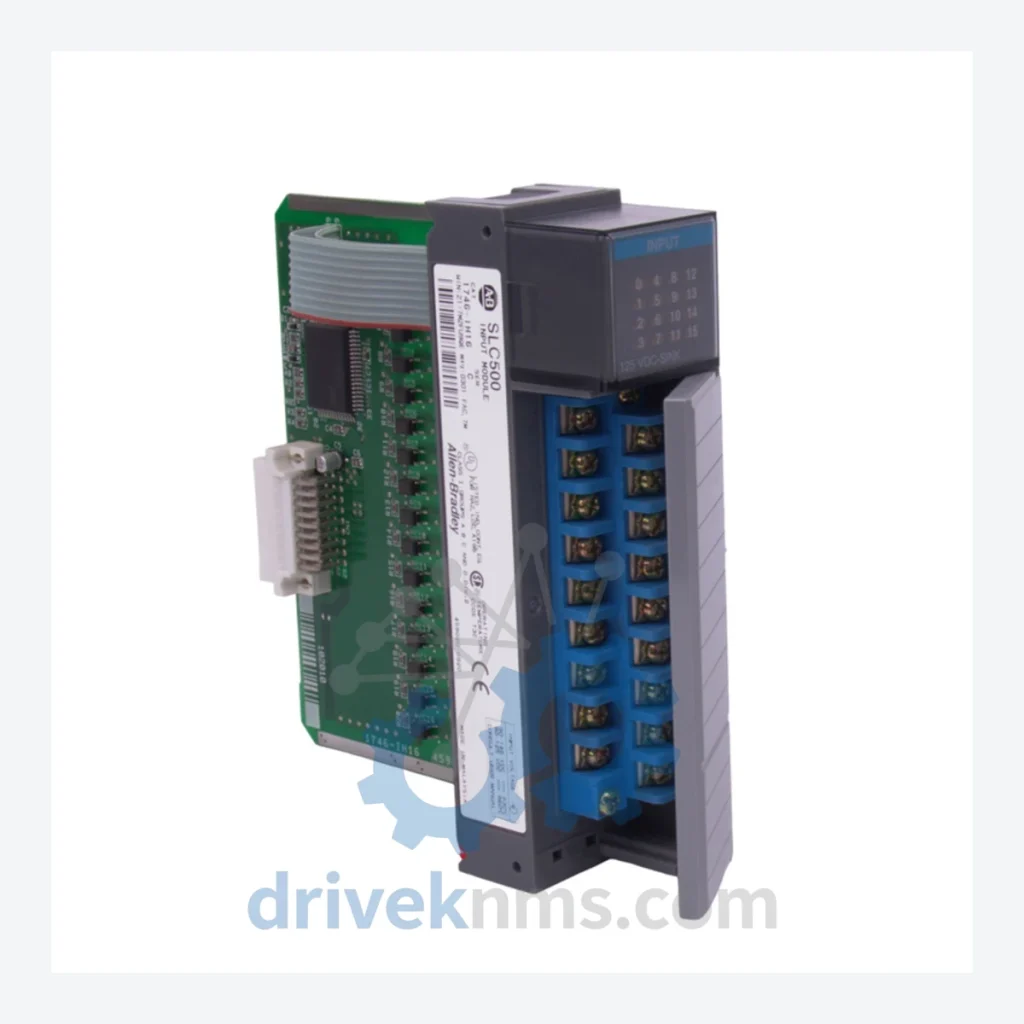

Allen-Bradley 1746-ITV16 DC Input Module – Obsolete SLC 500 Spare Part

When a 1746-ITV16 module fails on your SLC 500 rack, the clock starts immediately. Rockwell Automation discontinued this module as part of the broader SLC 500 platform end-of-life. Replacement is no longer available through authorized distribution channels. The alternative — migrating to a ControlLogix or CompactLogix platform — carries engineering costs that routinely exceed $500,000 USD per line when factoring in panel redesign, I/O remapping, program conversion, commissioning, and production downtime. A single verified spare module from DriveKNMS eliminates that pressure entirely and buys your operation the runway it needs to plan a controlled, budgeted migration on your own schedule.

DriveKNMS maintains sourced inventory of hard-to-find Allen-Bradley SLC 500 series components specifically to serve facilities that cannot absorb forced platform upgrades. This is not a catalog listing — availability is finite and subject to change without notice.

Technical Specifications

Solving the Discontinued Hardware Crisis

The SLC 500 platform was the backbone of North American discrete manufacturing for over two decades. Thousands of facilities — automotive stamping lines, food processing conveyors, water treatment SCADA panels, and packaging machinery — were built around SLC 5/03 and 5/05 processors with 1746-series I/O. Rockwell Automation's end-of-life announcement did not come with a grace period that matched the operational reality of these installations.

The 1746-ITV16 specifically handles 16-point DC sourcing inputs, a configuration that appears repeatedly in high-density sensor arrays: proximity switches on indexing tables, photoelectric sensors on accumulation conveyors, and position feedback on pneumatic actuators. There is no direct plug-in substitute from the current Rockwell catalog. Any replacement requires a different chassis, a different backplane, and a rewritten program — none of which can be executed during an unplanned outage.

Facilities that have maintained a strategic inventory of 1746-series modules have consistently avoided forced shutdowns. Those that have not faced a choice between paying premium prices on the secondary market under time pressure, or committing to an emergency migration that disrupts production for weeks. The cost differential between a planned migration and a forced one is not marginal — it is structural. Procurement of verified spare modules now, while they remain available, is the lowest-cost risk mitigation available to any plant running SLC 500 hardware.

For operations with a 5–10 year asset life extension target, the recommended approach is to identify every 1746-series module currently installed, calculate failure probability based on operating hours and thermal environment, and establish a minimum buffer stock for each high-criticality module type. The 1746-ITV16, given its role in input-dense applications, is consistently among the first modules to require replacement in aging SLC 500 installations.

Condition & Reliability Assurance

Sourcing discontinued industrial hardware from the secondary market carries real risk. DriveKNMS applies a structured 5-step inspection protocol to every 1746-ITV16 unit before it is offered for sale:

Step 1 – Visual and Physical Inspection: Full examination of the module housing, connector pins, and backplane edge connector. Units with physical damage, bent pins, or evidence of field modification are rejected at intake.

Step 2 – Electrolytic Capacitor Assessment: SLC 500-era modules contain electrolytic capacitors that degrade over time, particularly in high-temperature environments. Each unit is inspected for capacitor bulging, leakage, and ESR deviation. Modules with compromised capacitors are either reconditioned by qualified technicians or removed from inventory.

Step 3 – Firmware Version Verification: Where applicable, firmware revision is confirmed and documented. Compatibility with target processor firmware is verified prior to shipment.

Step 4 – Pin and Contact Corrosion Check: Backplane connector pins are inspected under magnification for oxidation and corrosion. Affected contacts are cleaned to IPC standards or the unit is rejected.

Step 5 – Functional Power-On Test: Each module undergoes a bench power-on test to confirm basic operational status prior to packaging.

Units are shipped in anti-static packaging with individual inspection records. Condition grade (New Surplus, Refurbished, or Tested Used) is disclosed explicitly in the order confirmation.

Key Features for System Maintenance

The 1746-ITV16 is a direct drop-in replacement for any existing 1746-ITV16 position in a SLC 500 chassis. No hardware modifications are required. No program changes are required. No engineering involvement is required for the swap itself — a qualified maintenance technician can complete the replacement during a scheduled maintenance window or an unplanned outage without calling in a systems integrator.

This is the defining advantage of maintaining spare 1746-series modules: the replacement cost is the cost of the module and one hour of maintenance labor. The alternative — platform migration — involves systems integrators, project management, FAT/SAT testing, and production downtime measured in days or weeks. For any facility operating on thin margins or continuous production schedules, the economics are not ambiguous.

Stocking a verified 1746-ITV16 spare eliminates the single largest variable in SLC 500 maintenance planning: parts availability. Everything else — labor, scheduling, documentation — is within the facility's control. Parts availability, once the secondary market is exhausted, is not.

FAQ

Q: What warranty applies to discontinued modules?
A: DriveKNMS provides a 90-day warranty covering functional defects identified under normal operating conditions. Warranty terms are confirmed in writing at the time of order.

Q: How do I know the unit is genuine Allen-Bradley and not a counterfeit?
A: All units are sourced through traceable supply channels. Physical markings, catalog labels, and internal construction are verified against known-good reference units during inspection. We do not source from unverified brokers.

Q: Should I buy more than one unit?
A: For any SLC 500 installation with more than one 1746-ITV16 installed, holding at least one spare per chassis is the standard recommendation. For critical lines with no planned migration within 36 months, two units per chassis is a defensible position. Secondary market availability for this module will continue to decline as installed base units age out.

Q: Can you source other 1746-series modules?
A: Yes. DriveKNMS maintains sourcing capability across the SLC 500 I/O range. Contact us with your full BOM for availability and lead time.
