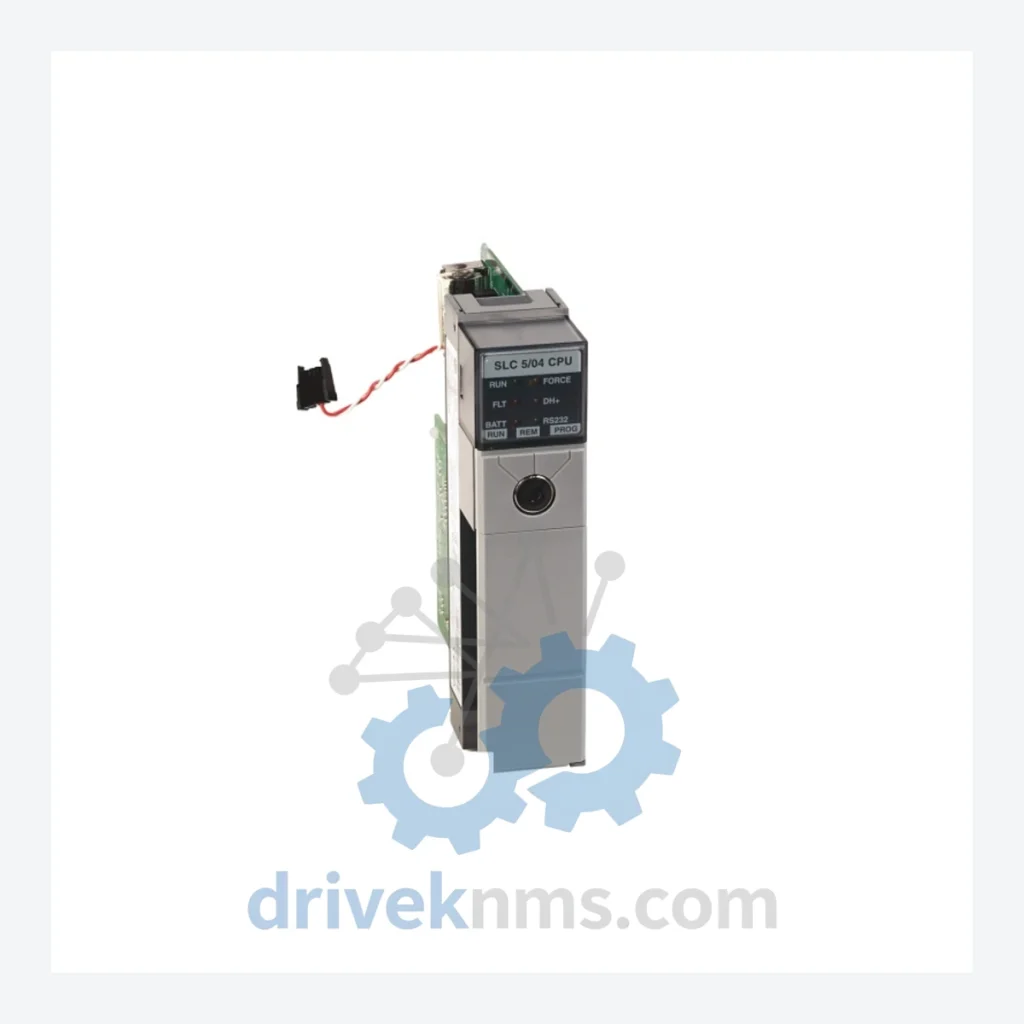

Allen-Bradley SLC 500 Modules – 1747-L543/C

Technical Dossier

Product Details And Specifications

Allen-Bradley SLC 500 Series Technical Notes

The Allen-Bradley SLC 500 (Small Logic Controller 500) series, manufactured by Rockwell Automation, is one of the most widely deployed modular PLC platforms in global heavy industry. Installed across petrochemical refineries, nuclear auxiliary systems, pulp and paper mills, automotive assembly lines, and water treatment facilities, the SLC 500 platform has accumulated decades of field-proven reliability in environments demanding continuous 24/7 operation. Its fixed and modular chassis configurations — ranging from 4-slot to 13-slot backplanes — made it the standard mid-range controller for process automation from the early 1990s through the 2010s. Despite its end-of-life designation by Rockwell Automation, tens of thousands of SLC 500 installations remain in active production worldwide, creating sustained demand for spare parts, replacement modules, and lifecycle extension support.

The Evolution of SLC 500 Architecture

The SLC 500 platform was introduced by Allen-Bradley in 1991 as a successor to the SLC 100 and SLC 150 fixed controllers. The architecture is built around a modular I/O chassis (1746 series) and a family of processor modules (1747 series), communicating over a proprietary backplane bus. Early processors — the 1747-L511 and 1747-L514 — offered 1K and 4K instruction memory respectively, targeting small discrete control applications. The mid-generation processors (1747-L524, 1747-L531, 1747-L532) expanded memory to 12K–16K words and introduced DH-485 and RS-232 communication natively. The high-end processors — including the 1747-L541, 1747-L542, 1747-L543, and 1747-L553 — provided 60K–64K words of user memory, full DH+ and Ethernet/IP communication capability, and support for up to 4096 I/O points across multiple chassis. The 1747-L543/C specifically represents the /C firmware revision of the 5/40 processor, offering 60K words of user program memory and native DH+ communication. Compatibility across revisions is generally maintained at the chassis and I/O module level, but processor firmware revisions (/A, /B, /C) affect RSLogix 500 programming software compatibility and should be matched carefully during replacement. Rockwell Automation officially announced end-of-life for the SLC 500 processor family, with the recommended migration path being the Allen-Bradley MicroLogix 1500 or CompactLogix L-series platforms. However, direct program migration requires re-engineering, making in-kind SLC 500 replacement the preferred strategy for most maintenance teams.

SLC 500 Full Catalog & Functionalities (SKU List)

Processor / CPU Modules

• 1747-L511: SLC 5/01 processor, 1K user memory, DH-485 port, 4-slot chassis max
• 1747-L514: SLC 5/01 processor, 4K user memory, DH-485 port, supports up to 960 I/O
• 1747-L524: SLC 5/02 processor, 4K user memory, DH-485 and RS-232 ports
• 1747-L531: SLC 5/03 processor, 8K user memory, DH-485, RS-232, online editing
• 1747-L532: SLC 5/03 processor, 16K user memory, enhanced instruction set
• 1747-L541: SLC 5/04 processor, 60K user memory, DH+ and RS-232 communication
• 1747-L542: SLC 5/04 processor, 64K user memory, DH+ port, extended I/O support
• 1747-L543/C: SLC 5/04 processor rev /C, 60K words user memory, DH+ and RS-232, up to 4096 I/O
• 1747-L551: SLC 5/05 processor, 64K user memory, Ethernet/IP, DH-485, RS-232
• 1747-L553: SLC 5/05 processor, 64K user memory, Ethernet/IP, full online editing

Digital Input (DI) Modules

• 1746-IA16: 16-point 120VAC digital input module, screw terminal
• 1746-IB16: 16-point 24VDC digital input module, sink/source configurable
• 1746-IB32: 32-point 24VDC digital input, high-density, removable terminal block
• 1746-IV16: 16-point 24VDC digital input, TTL-compatible voltage range

Digital Output (DO) Modules

• 1746-OA16: 16-point 120/240VAC triac output module, 0.5A per point
• 1746-OB16: 16-point 24VDC transistor output, source type, 0.5A per point
• 1746-OB32: 32-point 24VDC transistor output, high-density configuration
• 1746-OW16: 16-point relay output module, 2A per point, isolated commons

Analog Input (AI) Modules

• 1746-NI4: 4-channel analog input, ±10V / 0–20mA / 4–20mA selectable per channel
• 1746-NI8: 8-channel analog input, 12-bit resolution, differential inputs
• 1746-NI16I: 16-channel analog current input, 4–20mA, single-ended

Analog Output (AO) Modules

• 1746-NO4I: 4-channel analog current output, 4–20mA, 12-bit resolution
• 1746-NO4V: 4-channel analog voltage output, 0–10V / ±10V selectable

Communication & Specialty Modules

• 1747-SDN: DeviceNet scanner module for SLC 500 chassis, master node
• 1747-SCNR: Remote I/O scanner, connects SLC 500 to 1771 remote I/O network
• 1746-BAS: BASIC module for custom ladder-integrated BASIC programming

Power Supply

• 1746-P1: 2A power supply, 120/240VAC input, for 4-slot chassis
• 1746-P2: 5A power supply, 120/240VAC input, for 7- and 10-slot chassis
• 1746-P4: 10A power supply, 120/240VAC input, for 13-slot chassis

Quality Control for the SLC 500 Range

SLC 500 modules present specific test challenges due to their backplane-dependent communication architecture. DriveKNMS employs a dedicated SLC 500 test bench comprising a 1746-A13 13-slot chassis, 1746-P4 power supply, and a reference 1747-L553 processor running a validated diagnostic ladder program. Each processor module under test — including the 1747-L543/C — is verified for: user memory read/write integrity across the full 60K word address space; DH+ port communication at 57.6K, 115.2K, and 230.4K baud; RS-232 DF1 protocol handshake; battery-backed SRAM retention after 72-hour power-off soak; and I/O chassis scan cycle completion without fault codes. I/O modules are tested for channel-level continuity, isolation resistance between commons, and signal accuracy against calibrated references. Modules that fail any single test parameter are quarantined and not returned to inventory.
