Allen-Bradley SLC 500 Series: Comprehensive Module Range and Technical Overview

The Allen-Bradley SLC 500 series, manufactured by Rockwell Automation, represents one of the most widely deployed small-to-mid-range programmable logic controller (PLC) platforms in global heavy industry. Installed across chemical processing plants, oil refineries, nuclear auxiliary systems, water treatment facilities, and steel mill automation lines, the SLC 500 platform has accumulated decades of field-proven reliability. Its modular rack-based architecture — supporting fixed and modular hardware configurations — made it the default control backbone for facilities commissioned between the mid-1980s and early 2010s. Tens of thousands of SLC 500 systems remain in active service worldwide, creating sustained demand for spare parts, replacement modules, and lifecycle extension support.

The Evolution of SLC 500 Architecture

The SLC 500 platform was introduced by Allen-Bradley in the mid-1980s as a successor to the SLC 100 and SLC 150 fixed controllers. The architecture evolved through five distinct CPU generations:

SLC 5/01 (1747-L511 / 1747-L514): The original modular CPU, supporting up to 4K of user memory and DH-485 communications. Designed for simple discrete control tasks. No longer manufactured; replacement stock is the primary sourcing channel.

SLC 5/02 (1747-L524): Expanded to 4K memory with improved scan time performance. Introduced support for the SLC 500 instruction set expansion. Discontinued; field units are frequently refurbished for legacy line maintenance.

SLC 5/03 (1747-L531 / 1747-L532 / 1747-L533): A significant architectural step — introduced DH-485 and RS-232 (DF1) dual-port communications, online editing capability, and up to 16K memory. Widely adopted in process industries through the 1990s.

SLC 5/04 (1747-L541 / 1747-L542 / 1747-L543): Added Data Highway Plus (DH+) networking, enabling integration into larger Allen-Bradley control networks. Memory options up to 16K. The dominant CPU variant in multi-node plant architectures.

SLC 5/05 (1747-L551 / 1747-L552 / 1747-L553): The most advanced SLC 500 CPU generation. Introduced native Ethernet/IP communications alongside DH-485 and RS-232, enabling direct integration with modern SCADA and MES systems. Memory configurations of 16K, 32K, and 64K. The 1747-L553 (64K, Ethernet/IP) is the flagship model of this generation and remains the most sought-after SLC 5/05 variant for system upgrades and replacements.

Rockwell Automation announced the SLC 500 platform as end-of-life (EOL) with a recommended migration path to the CompactLogix (1769) and MicroLogix 1500 families. However, given the scale of installed base, the aftermarket for SLC 500 components remains active and commercially significant.

SLC 500 Full Catalog & Functionalities (SKU List)

CPU / Controller Modules

1747-L511: SLC 5/01 CPU, 1K memory, DH-485, fixed I/O chassis compatible
1747-L514: SLC 5/01 CPU, 4K memory, DH-485, modular rack
1747-L524: SLC 5/02 CPU, 4K memory, DH-485 + RS-232 DF1
1747-L531: SLC 5/03 CPU, 8K memory, DH-485 + RS-232, online edit
1747-L532: SLC 5/03 CPU, 12K memory, dual-port comms
1747-L533: SLC 5/03 CPU, 16K memory, full instruction set
1747-L541: SLC 5/04 CPU, 8K memory, DH+ network port
1747-L542: SLC 5/04 CPU, 12K memory, DH+ + RS-232
1747-L543: SLC 5/04 CPU, 16K memory, DH+ primary node
1747-L551: SLC 5/05 CPU, 16K memory, Ethernet/IP + DH-485
1747-L552: SLC 5/05 CPU, 32K memory, Ethernet/IP + RS-232

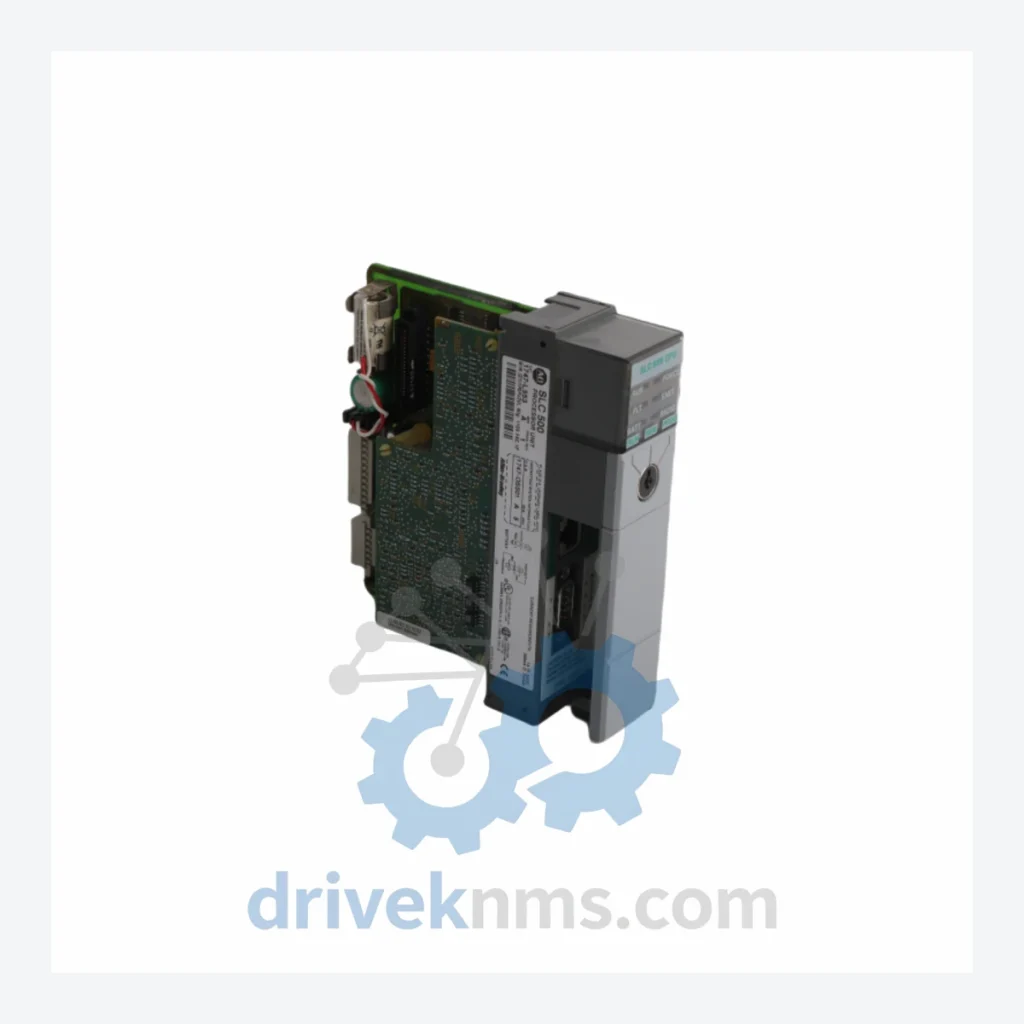

1747-L553: SLC 5/05 CPU, 64K memory, Ethernet/IP, full comms suite — flagship EOL model

Digital Input (DI) Modules

1746-IA16: 16-point 120VAC digital input module, standard industrial voltage
1746-IB16: 16-point 24VDC digital input, sink/source configurable
1746-IB32: 32-point 24VDC digital input, high-density rack

Digital Output (DO) Modules

1746-OA16: 16-point 120/240VAC triac output, zero-crossing switching
1746-OB16: 16-point 24VDC transistor output, sourcing type
1746-OW16: 16-point relay output, 10A per point, mixed voltage loads

Analog I/O Modules

1746-NI4: 4-channel analog input, 4–20mA / 0–10V, 12-bit resolution
1746-NO4I: 4-channel analog current output, 4–20mA, isolated
1746-NI8: 8-channel analog input, high-density process measurement

Communications & Specialty Modules

1747-SDN: DeviceNet scanner module, master node for DeviceNet field devices
1747-SN: Remote I/O scanner, links SLC 500 to 1771 remote I/O racks
1746-BAS: BASIC module for custom ladder-to-BASIC program interfacing

Power Supply

1746-P2: 5VDC / 24VDC power supply, 5A, supports up to 10-slot chassis
1746-P4: 5VDC / 24VDC power supply, 10A, high-load rack configurations

Sourcing Hard-to-Find & Obsolete SLC 500 Parts

With Rockwell Automation having formally discontinued the SLC 500 product line, procurement teams face three recurring challenges: extended lead times from authorized distributors, inflated spot-market pricing for CPU modules, and counterfeit risk in unverified secondary market channels.

DriveKNMS maintains a dedicated inventory network for SLC 500 lifecycle support. Our sourcing model operates across verified industrial surplus channels, decommissioned plant asset recovery, and factory-sealed new-old-stock (NOS) holdings. For procurement managers evaluating total cost of ownership (TCO), sourcing a refurbished 1747-L553 through DriveKNMS at a fraction of the OEM list price — with a 12-month warranty — directly reduces unplanned downtime cost versus waiting 16–24 weeks for a migration project to complete.

Supply continuity strategy: For facilities running SLC 5/04 or SLC 5/05 CPUs as primary controllers, we recommend maintaining a minimum of one cold-standby CPU and two critical I/O modules on-site. DriveKNMS can assist in building a site-specific spare parts matrix based on your installed rack configuration.

Quality Control for the SLC 500 Range

SLC 500 modules present specific testing challenges due to their backplane bus architecture and the age profile of available stock. DriveKNMS applies the following QC protocol to all SLC 500 units prior to shipment:

Backplane communication verification: Each CPU module is bench-tested in a live SLC 500 rack with RSLogix 500 software to confirm DH-485, DH+, or Ethernet/IP port functionality as applicable to the model.

Memory integrity check: User memory is cleared, a diagnostic ladder program is loaded, and full scan-cycle execution is verified. For 1747-L55x series CPUs, Ethernet port connectivity and IP address assignment are confirmed.

I/O module functional test: Digital I/O modules are tested at rated voltage with point-by-point verification. Analog modules are calibrated against a reference signal source to confirm accuracy within published specifications.

Visual and component inspection: All units are inspected for capacitor condition, relay contact wear (OW-series), and backplane connector integrity. Units with degraded components are either reconditioned or rejected.

All shipped units include a test report, 12-month warranty certificate, and export documentation compliant with international trade regulations. Payment accepted in USD, EUR, CNY, and HKD. Shipping via DHL Express or FedEx International Priority with full tracking.
