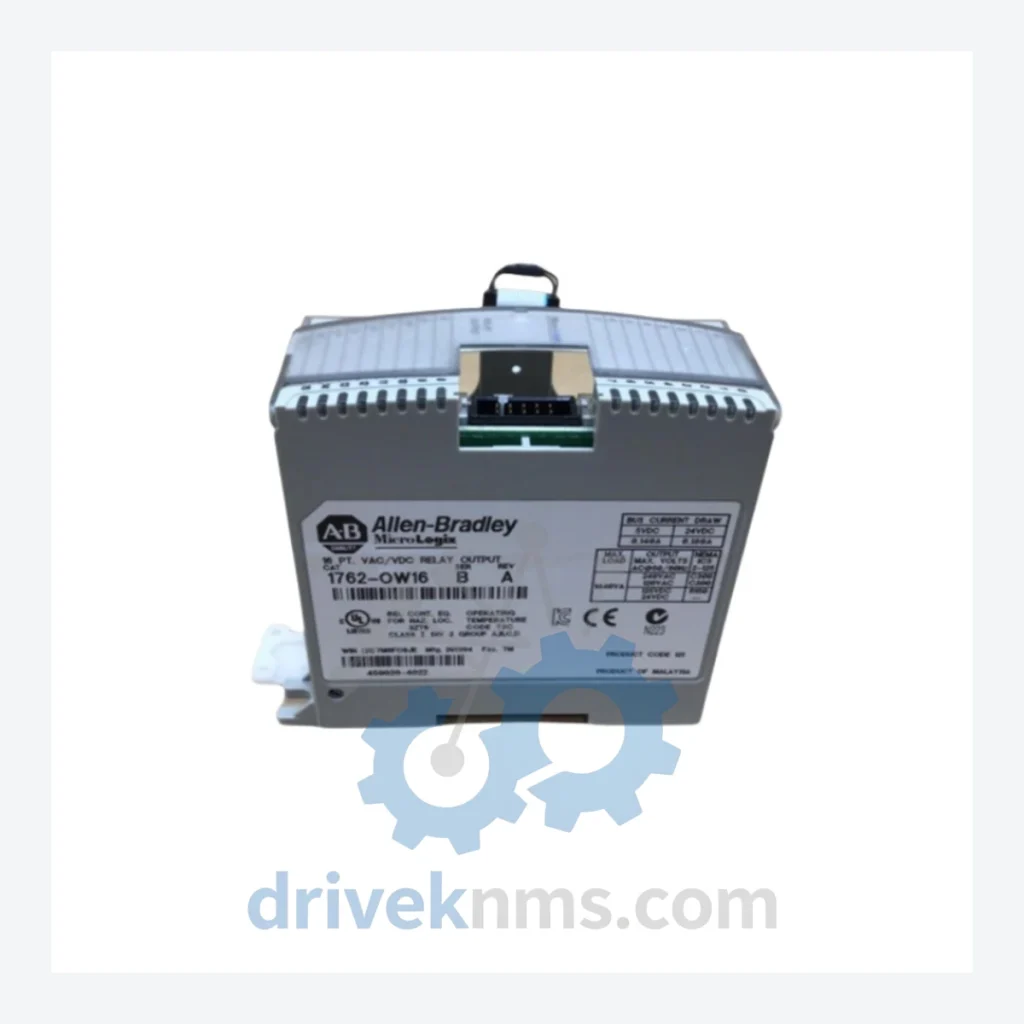

Allen-Bradley 1762-OW16 Relay Output Module – Obsolete MicroLogix 1500 Spare Part

Technical Dossier

Product Details And Specifications

Allen-Bradley 1762-OW16 Relay Output Module – Obsolete MicroLogix 1500 Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Solving the Discontinued Hardware Crisis

The 1762-OW16 sits at the output boundary of the control system — it is the module that physically switches motors, solenoids, conveyors, and actuators on and off based on PLC logic. Without it, the controller is blind to the physical world. There is no software patch, no firmware update, and no configuration change that compensates for a failed output module. The hardware must be replaced with an identical unit.

Facilities that have operated MicroLogix 1500 systems for 10 to 20 years have accumulated significant embedded value: validated control programs, proven process parameters, trained maintenance staff, and integrated SCADA connections. Replacing a $300 output module to preserve that infrastructure is not a compromise — it is sound asset management. Replacing the entire control system to avoid sourcing that module is a capital expenditure that most maintenance budgets cannot absorb on an emergency timeline.

How to extend your MicroLogix 1500 system life by 5 to 10 years:

Condition & Reliability Assurance

Sourcing discontinued industrial hardware from the secondary market carries legitimate risk. DriveKNMS applies a structured 5-step qualification process to every 1762-OW16 unit before it is offered for sale:

1. Visual and mechanical inspection: Housing integrity, connector pin condition, and label legibility are verified. Units with cracked housings, bent pins, or evidence of field modification are rejected at intake.
2. Electrolytic capacitor assessment: Modules of this age are evaluated for capacitor bulging, electrolyte leakage, and ESR deviation — the most common failure mode in aging relay output boards.
3. Contact and relay verification: Each of the 16 relay outputs is cycled under load to confirm switching integrity and contact resistance within specification.
4. Pin and connector corrosion check: Backplane connector pins are inspected under magnification for oxidation and cleaned where necessary. Corroded pins are a primary cause of intermittent faults that are difficult to diagnose in the field.
5. Firmware and catalog number verification: The catalog number label and any embedded revision markings are cross-referenced against Rockwell's published product records to confirm the unit is a genuine Allen-Bradley 1762-OW16 and not a counterfeit or mislabeled substitute.

Units that pass all five stages are classified as Tested Surplus or Refurbished, with the condition clearly stated on the invoice. Units that do not pass are not sold.

Key Features for System Maintenance

• Drop-in replacement: The 1762-OW16 connects directly to the MicroLogix 1500 expansion bus. No hardware modification, no I/O address remapping, and no program changes are required when replacing a failed unit with an identical catalog number.
• No re-engineering cost: Because the replacement module is electrically and logically identical to the original, the existing control program runs without modification. There are no PLC programming fees, no system integrator callouts, and no revalidation requirements beyond a functional test.
• Immediate commissioning: A trained maintenance technician can install and verify a replacement 1762-OW16 in under two hours using the existing wiring documentation.
• Preserves validated process: Keeping the original hardware platform intact means your process parameters, interlocks, and safety logic remain exactly as validated — a significant consideration in regulated industries such as food processing, pharmaceuticals, and water treatment.

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

Can you source other 1762 series modules?
Yes. DriveKNMS specializes in the full 1762 expansion I/O family, including analog and digital input variants. Contact us with your complete BOM for a consolidated quote.
