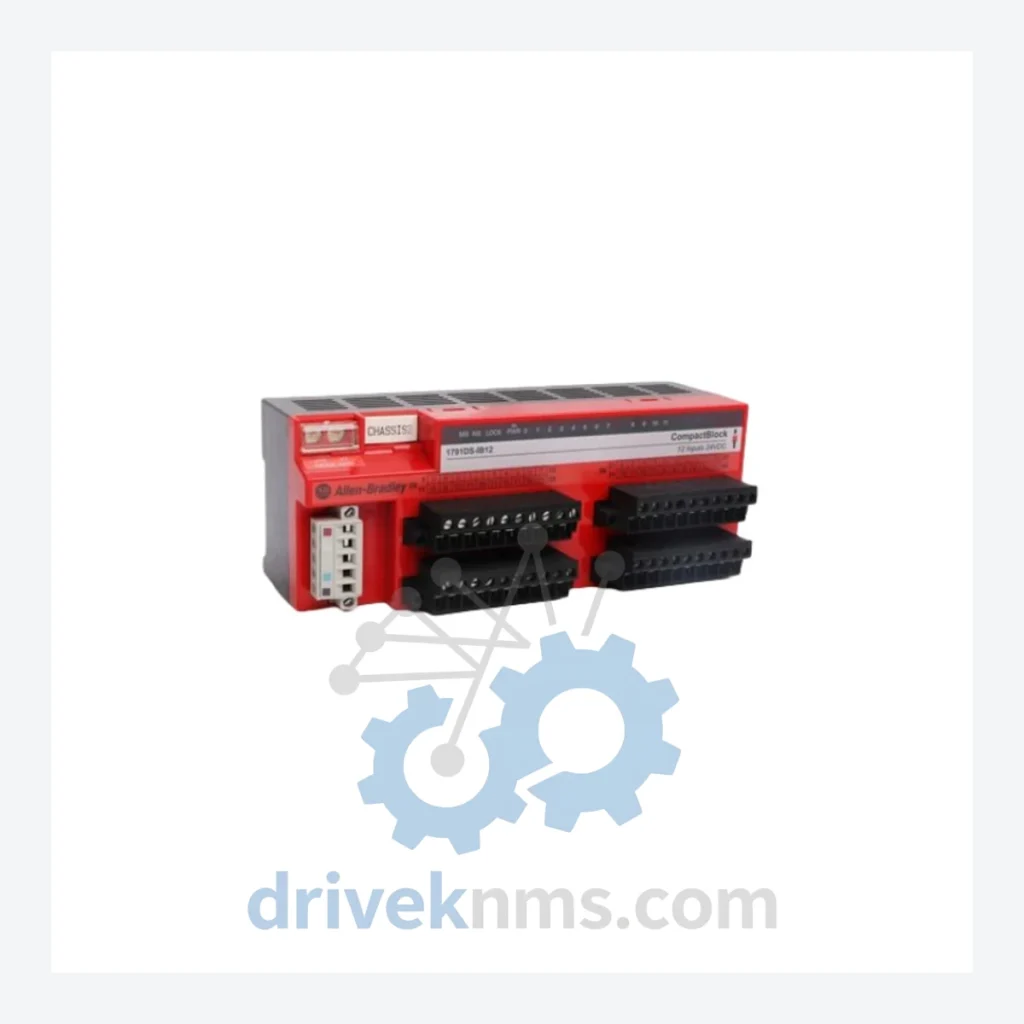

Allen-Bradley 1791DS Series Guard I/O Modules – 1791DS-IB12

Technical Dossier

Product Details And Specifications

Allen-Bradley 1791DS Series Technical Notes

The Allen-Bradley 1791DS Series Guard I/O is a distributed safety I/O platform developed by Rockwell Automation for integration with GuardLogix and SmartGuard safety controllers via DeviceNet Safety network. Deployed extensively across global heavy industry — including petrochemical refineries, nuclear power auxiliary systems, offshore platforms, and continuous-process chemical plants — the 1791DS series provides IEC 61508 SIL 2 / SIL 3 certified safety I/O at the machine and process level. Its modular, DIN-rail-mounted architecture allows engineers to distribute safety I/O nodes close to field devices, reducing wiring cost and improving diagnostic response time. The series is a recognized standard in safety-critical installations across North America, Europe, and Asia-Pacific, with a substantial installed base that continues to require long-term spare parts support.

The Evolution of 1791DS Architecture

The 1791DS platform was introduced by Rockwell Automation as part of its Integrated Architecture safety strategy, designed to complement the GuardLogix L6xS and L7xS controller families. Early revisions of the series focused on standard digital safety I/O — sourcing inputs and solid-state outputs — communicating over DeviceNet Safety (CIP Safety protocol). As the platform matured, Rockwell expanded the catalog to include combination modules (simultaneous input/output on a single node), analog safety I/O variants, and modules with integrated muting and enabling device logic.

Compatibility considerations are significant for maintenance engineers: 1791DS modules require a DeviceNet Safety scanner (e.g., 1756-DNB or 1734-PDN) and are not directly interchangeable with the later 1791ES EtherNet/IP Safety series without network infrastructure changes. Firmware revisions across 1791DS generations affect electronic data sheet (EDS) compatibility; always verify catalog revision suffix (Series A, B, C) when sourcing replacement units. The series entered the mature/end-of-life phase for new design-ins, with Rockwell Automation recommending the 1791ES or Compact GuardLogix with 5069-IB8S for new projects — making long-term maintenance sourcing of 1791DS units a critical operational requirement for existing installations.

1791DS Full Catalog & Functionalities (SKU List)

Digital Input Modules (DI)

• 1791DS-IB4: 4-point 24V DC safety digital input, SIL 2, DeviceNet Safety
• 1791DS-IB8: 8-point 24V DC safety digital input, dual-channel capable, SIL 2
• 1791DS-IB12: 12-point 24V DC safety digital input combination module, SIL 2 certified
• 1791DS-IB16: 16-point 24V DC safety digital input, high-density node, SIL 2

Digital Output Modules (DO)

• 1791DS-OB4: 4-point 24V DC safety digital output, solid-state, SIL 2
• 1791DS-OB8: 8-point 24V DC safety digital output, SIL 2, short-circuit protected
• 1791DS-OB8EP: 8-point 24V DC safety output with electronic short-circuit protection per point

Combination Input/Output Modules (Comb)

• 1791DS-IB12XOB4: 12 safety inputs / 4 safety outputs combination, SIL 2, DeviceNet Safety
• 1791DS-IB12XOB8: 12 safety inputs / 8 safety outputs combination, high I/O density node
• 1791DS-IB8XOB8: 8 safety inputs / 8 safety outputs combination module, SIL 2

Analog Safety Modules (AI)

• 1791DS-IB4XOW4: 4 safety digital inputs / 4 relay outputs combination, SIL 2
• 1791DS-OW4: 4-point relay output safety module, 250V AC/DC rated contacts

Communication & Power Accessories

• 1791DS-ME8: 8-port DeviceNet Safety media expander for 1791DS node extension
• 1791DS-DN DeviceNet Safety Adapter: Network adapter node for 1791DS I/O block assembly
• 1791DS-IB12 (Series B): Revised firmware revision of IB12 with enhanced diagnostic reporting — the subject SKU of this listing

Quality Control for the 1791DS Range

1791DS modules present specific test challenges due to their integrated CIP Safety protocol stack and dual-channel input validation logic. DriveKNMS applies a structured test protocol for all 1791DS units prior to shipment:

• DeviceNet Safety network enumeration: Each module is powered and scanned on a live DeviceNet Safety network to confirm node address assignment, EDS file compatibility, and safety connection establishment with a GuardLogix test controller.
• Dual-channel input verification: For input modules, both channel A and channel B of each safety input point are independently stimulated and cross-checked against the module's internal discrepancy detection logic.
• Output load test: Output modules are tested under rated resistive load at 24V DC to verify solid-state switch integrity and per-point short-circuit protection response.
• Backplane and terminal block inspection: Physical inspection of the DeviceNet Safety connector, removable terminal blocks, and DIN rail locking mechanism for mechanical integrity.
• Firmware revision verification: Catalog series suffix (A/B/C) and firmware version are recorded and disclosed in the shipment documentation to support customer safety validation records.
