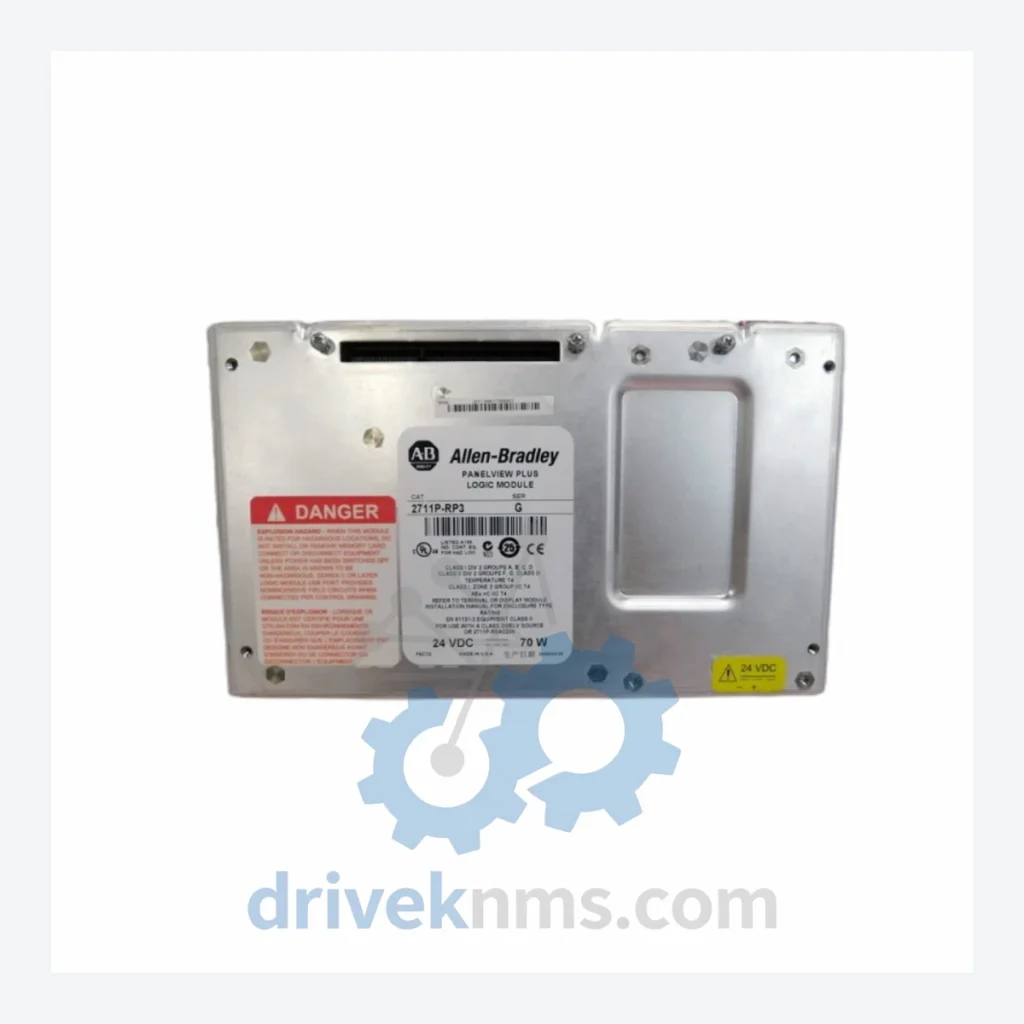

Allen-Bradley 2711P Series Modules – 2711P-RP3 Marine Certified Logic Module 256 MB Flash

Technical Dossier

Product Details And Specifications

Allen-Bradley 2711P Series Technical Notes

The Evolution of 2711P Architecture

The 2711P platform was introduced in the mid-2000s as a successor to the original PanelView Plus (2711P-K and 2711P-B prefix terminals). Early revisions used CompactFlash-based storage and VGA-resolution displays. The architecture matured through several firmware generations under FactoryTalk View ME, progressively adding support for higher-resolution displays (SVGA, XGA), expanded DRAM (from 128 MB to 512 MB), and dual-port Ethernet for Device Level Ring (DLR) topologies.

The 2711P-RP series logic modules represent the replaceable compute core of the terminal. They are field-swappable and carry the operating system, application flash, and communication stack independently of the display panel. This separation was a deliberate design choice to extend service life: a failed display does not require logic module replacement, and vice versa. The 2711P-RP3 specifically is a 256 MB Flash variant with Marine certification (UL Marine, DNV GL), making it the required logic module for shipboard and offshore installations subject to vibration, humidity, and salt-air standards.

Compatibility constraints are significant: logic modules are matched to specific terminal series (T4, T6, T7, T9, T10, T12, T15 display sizes) and firmware versions. Cross-generation substitution requires careful FactoryTalk View ME version alignment. Terminals running ME 8.x and above require logic modules with matching firmware baselines; downgrading is not supported by Rockwell.

2711P Full Catalog & Functionalities (SKU List)

Logic Modules (RP Series)

• 2711P-RP1: Standard logic module, 128 MB Flash, non-marine, base firmware platform for T4–T7 terminals.
• 2711P-RP2: Enhanced logic module, 256 MB Flash, non-marine, supports FactoryTalk View ME 6.0 and above.
• 2711P-RP3: 256 MB Flash, Marine Certified (UL Marine / DNV GL), required for offshore and shipboard HMI installations.
• 2711P-RP4: High-capacity logic module, 512 MB Flash, supports extended application storage and ME 8.x+.
• 2711P-RP6: Logic module for PanelView Plus 7 Standard terminals, 512 MB Flash, dual Ethernet DLR-capable.
• 2711P-RP8D: Logic module for PanelView Plus 7 Performance terminals, 1 GB Flash, supports high-resolution graphics and advanced alarming.

Display Terminals (T Series — by screen size)

• 2711P-T4C20D: 4-inch color display terminal, 320×240 resolution, keypad input, compact panel mount.
• 2711P-T6C20D8: 6-inch color display, 640×480 VGA, touch + keypad, standard industrial enclosure.
• 2711P-T7C4D8: 7-inch widescreen color touch terminal, 800×480 WVGA, USB host port.
• 2711P-T9W22D9P: 9-inch widescreen touch terminal, 800×480, stainless steel bezel, wash-down rated.
• 2711P-T10C4D8: 10.4-inch color touch terminal, 800×600 SVGA, dual Ethernet, DLR support.
• 2711P-T12W22D9P: 12.1-inch widescreen touch, stainless steel, IP69K wash-down, food & beverage grade.
• 2711P-T15C22D9P: 15-inch color touch terminal, 1024×768 XGA, stainless steel, high-ambient-light display.

Communication Adapters

• 2711P-RN15S: Single-port EtherNet/IP communication module for standard network topologies.
• 2711P-RN15S2: Dual-port EtherNet/IP adapter, supports Device Level Ring (DLR) for fault-tolerant networks.
• 2711P-RN6: DH-485 communication adapter for legacy Allen-Bradley network integration.

Power Supply & Accessory Modules

• 2711P-RSACDIN: DIN rail AC power supply adapter for 2711P terminals, 100–240 VAC input.
• 2711P-RSCIVGA: VGA output module for external monitor connection from 2711P terminals.
• 2711P-RKUSB: USB extension cable kit for front-panel USB port relocation.

Quality Control for the 2711P Range

The 2711P logic module presents specific test challenges due to its integrated flash storage, USB controller, and dual-stack communication architecture. DriveKNMS applies a structured validation protocol to all 2711P logic modules prior to shipment:

• Flash integrity verification: Full read/write cycle test on the 256 MB or 512 MB flash array to identify degraded memory cells.
• Firmware boot validation: Module is booted to FactoryTalk View ME runtime environment; OS integrity and application partition are confirmed.
• Communication stack test: EtherNet/IP CIP messaging is verified against a live PLC (ControlLogix or CompactLogix) to confirm protocol stack integrity.
• USB host port test: USB enumeration and data transfer verified using standardized test media.
• Marine certification marking inspection: For RP3 variants, DNV GL and UL Marine certification labels are inspected for authenticity and hardware revision match.
• Backplane connector inspection: Pin alignment and contact integrity on the terminal backplane connector are verified under magnification.
• Burn-in cycle: 48-hour powered operation at elevated ambient temperature (50°C) to screen for early-life failures.
