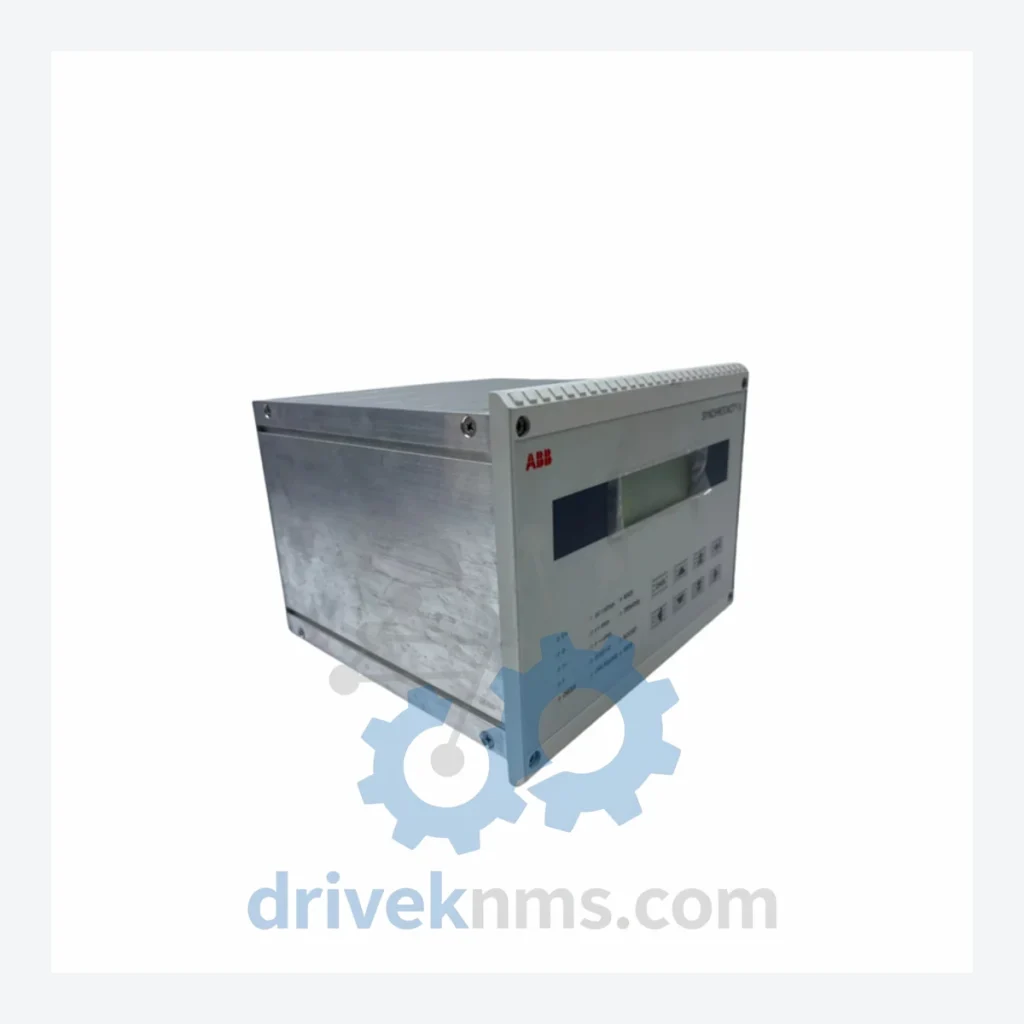

ABB 3BHB006713R0211 Keyphasor Module – Obsolete UNITROL / AC800M Spare Part

Technical Dossier

Product Details And Specifications

ABB 3BHB006713R0211 Keyphasor Module – Obsolete UNITROL / AC800M Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters not independently verified by DriveKNMS. Specifications above are based on publicly available ABB documentation. Buyers are advised to cross-reference against their system's original engineering drawings before installation.

Solving the Discontinued Hardware Crisis

The ABB UNITROL family and AC800M platform represent a generation of industrial control infrastructure installed across power generation, oil & gas, and heavy process industries throughout the 1990s and 2000s. These systems were engineered for 20–30 year operational lifespans, and many facilities are now operating well past original design horizons.

The Keyphasor module occupies a non-negotiable position in this architecture. It provides the shaft-speed and phase-reference signals that rotating machinery protection systems — vibration monitors, overspeed trips, and synchronization logic — depend on for safe operation. There is no software patch, no firmware workaround, and no cross-brand substitute that replicates its function without hardware-level integration work.

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

Extending asset life by 5–10 years: a practical framework for plant management

For facilities operating legacy ABB excitation or turbine control systems, the economic case for a structured spare-parts strategy is straightforward. A single unplanned outage on a large generator or compressor train typically costs more in lost production than a comprehensive spare-parts inventory for the entire control system. The following approach has been applied successfully across multiple facilities:

1. Criticality mapping: Identify every module in the control system that has no modern equivalent and no hot-standby redundancy. The 3BHB006713R0211 typically appears on this list immediately. Prioritize procurement in order of failure consequence, not in order of historical failure rate — obsolete components fail unpredictably as electrolytic capacitors age and firmware storage degrades.

2. Minimum two-unit buffer: One unit in service, one unit on the shelf. For facilities with multiple identical trains, a shared pool of two to three units is defensible. The carrying cost of a spare module is a fraction of one day's lost production on most industrial assets.

4. Documentation lock: Freeze the firmware version and hardware revision currently in service. Do not accept field upgrades or substitutions without full regression testing. In legacy systems, a mismatched firmware revision on a Keyphasor module has caused synchronization faults that required full system requalification to resolve.

Condition & Reliability Assurance

DriveKNMS applies a five-step inspection and refurbishment protocol to all non-new-surplus units of this module before they are offered for sale:

Step 1 – Visual and mechanical inspection: Full board inspection under magnification. Pin corrosion, connector wear, and PCB delamination are assessed and documented. Units with structural damage are rejected at this stage.

Step 2 – Electrolytic capacitor assessment: Capacitors are the primary age-related failure mode in modules of this generation. Each electrolytic capacitor is tested for capacitance, ESR, and leakage. Capacitors outside tolerance are replaced with specification-matched components.

Step 4 – Functional bench test: Where test fixtures are available, the module is powered and exercised through its primary signal-conditioning functions. Test results are documented and accompany the shipment.

Step 5 – Packaging and ESD protection: Units are packaged in anti-static bags with desiccant, inside rigid foam-lined shipping containers. Shelf life from packaging date is rated at a minimum of 24 months under standard warehouse conditions.

Key Features for System Maintenance

Drop-in replacement: The 3BHB006713R0211 installs directly into the existing module slot with no mechanical modification. Connector pinout and form factor are identical to the original factory unit.

No reprogramming required: The module does not carry site-specific application logic. Replacement does not require a controls engineer on-site for software restoration. Operational restoration time is limited to physical installation and system restart procedures defined in the original ABB commissioning documentation.

No engineering redesign: Unlike a platform migration, installing a like-for-like spare preserves all existing I/O wiring, HMI configurations, historian tags, and safety system interfaces. The engineering cost of a platform migration — typically 6–18 months of project work — is avoided entirely.

Documented traceability: Each unit shipped by DriveKNMS is accompanied by an inspection record. This supports maintenance management system entries and audit requirements for facilities operating under ISO 55001 or equivalent asset management frameworks.

How do I confirm the unit is new or genuinely refurbished — not a counterfeit?
DriveKNMS provides full inspection documentation with every shipment, including photographs taken during the QA process, firmware version records, and capacitor test data where applicable. We do not source from unverified brokers. All units are inspected in-house before dispatch.
